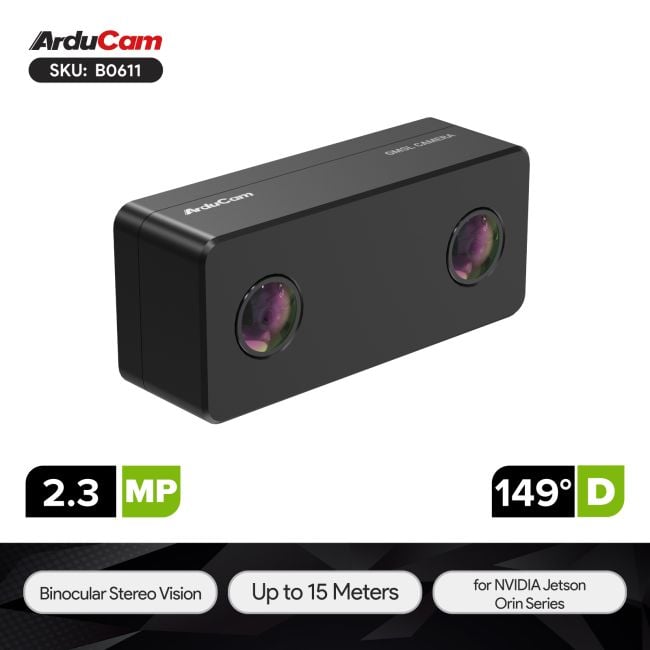

Arducam TrueSight - GMSL2 Binocular Stereo Synchronized 2.3MP Global Shutter Camera Vision Kit for Machine Vision

Overview

This stereo vision-ready kit pairs two selected global shutter cameras (2.3MP, 1920×1200) with GMSL2 long-range support, enabling flexible deployment up to 15m via coaxial cables (1m included). Pre-calibrated with M12 wide-angle lenses and hardware-synchronized for µs-level timing accuracy, the bundle delivers motion-blur-free stereo imaging ideal for robotic depth perception, 3D inspection, or high-speed tracking. The onboard ISP provides real-time control over exposure, gain, and white balance, while the plug-and-play design accelerates proof-of-concept to mass deployment for NVIDIA Jetson Orin series platforms.

Applications

These application examples are for reference only; please contact us for specific details.
• Machine Vision:
  Reliable inspection powered by global-shutter stereo and low-latency GMSL transmission.
• Motion Capture:
  Fast, precise object tracking without motion-blur for high quality imaging.
• Virtual Reality:
  Immersive VR sensing through wide-angle dual cameras and stable stereo depth.
• Gesture Recognition:
  Precise gesture recognition enabled by tightly synchronized stereo.
• Depth Sensing:
  Consistent depth maps from a calibrated 55 mm baseline and dual global-shutter sensors.
• Position Tracking:
  Stable imaging with synchronized stereo vision and high-speed GMSL connectivity.
• 3D Scanning:
  Accurate depth capture with wide-angle synchronized stereo for detailed 3D reconstruction.

Features

• GMSL2 Long Range Connectivity 15m Coaxial Cable Support: Includes a 1m coaxial cable with validated support for up to 15m, allowing flexible long-distance camera placement without signal loss.
• Global Shutter Technology Selected Global Shutter Sensor: Captures high-quality images of fast-moving objects without motion blur, making it ideal for robotics and machine vision applications.
• Camera Bundle Kit Pre-Calibrated Dual Cameras: Comes with two pre-calibrated M12 wide-angle lens cameras, ready for quick deployment in proof of concept (PoC) or mass production scenarios.
• Sync Stereo Configuration Hardware-Synchronized Stereo Pair: Ensures precise depth perception and alignment, crucial for applications like autonomous navigation and 3D mapping.
• Onboard Image Signal Processing (ISP) Advanced ISP Features: Offers control over brightness, contrast, saturation, white balance, gain, and exposure, enhancing image quality for various lighting conditions.
• Fixed Baseline In TrueSight stereo kits: the distance between the two global shutter cameras - the baseline - is fixed at 60mm to suit the distance and FOV of General-purpose machine vision needs.

Specifications

Package Including

• 1 x Arducam TrueSight-GMSL2 Binocular Synchronized Color Global Shutter Camera Kit
• 1 x 1m Fakra Z Female to Female RF Coaxial Cable
• 1 x 30cm 22-22pin FPC Cable

Notes

• Tripod is not included in the package, please check UB0224 and UB0216 for additional purchase.

Documentation

• Datasheet
• Quick Start Guide- Arducam TrueSight Stereo Kit for NVIDIA Jetson Orin Nano/Orin NX
