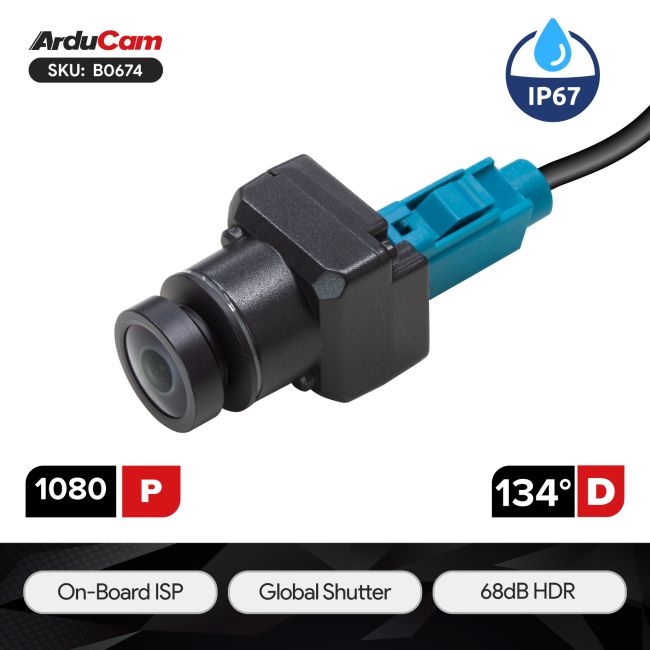

Arducam RapidRange 1080P Color Global Shutter 120 °(HFOV) Wide-Angle GMSL2 IP67 Camera Module
SKU
B0674
Part No
RR-GMSL2-1080P-GS-120H-IP67
- Zero-Distortion Motion Capture: 1080P@30fps Global Shutter sensor eliminates rolling shutter artifacts.
- Compact & Lightweight: Ultra-small 23x23mm housing for flexible mounting in tight spaces.
- Superior Dynamic Range: 68dB HDR ensures clear imaging in high-contrast or variable lighting scenes.
- High-Speed GMSL2 Link: Reliable, low-latency transmission for real-time edge computing and vision.
- Industrial-Grade Protection: IP67-rated waterproof and dustproof design for outdoor or factory use.
- Flexible Lens Options: Default 120°(H) lens; optional 30H, 60H, 100H, and 195H lenses available.
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
This 1080p GMSL2 camera module combines high-speed Global Shutter technology with a compact 23x23mm form factor. Designed for precision motion capture, it eliminates rolling shutter artifacts (jello effect), making it indispensable for high-speed industrial and robotic applications. Equipped with an on-board ISP and 68dB HDR capability, this camera delivers clear, balanced, and distortion-free 1080p video at 30fps, even in challenging lighting and high-vibration environments.
Applications
- Sports Analytics
- Factory Automation
- Autonomous Mobile Robots (AMR)
- Logistics & Sorting
- Drones & Aerospace
Features
- Global Shutter Technology: Captures the entire frame simultaneously, ensuring zero motion blur and perfect geometry for fast-moving objects.
- HDR & Built-in ISP: Features 68dB High Dynamic Range and an integrated ISP to provide pre-processed, high-quality images with balanced exposure.
- GMSL2 Interface: Optimized for long-distance, low-latency video transmission over coaxial cables, ensuring reliable data integrity.
- Micro Form Factor: The 23x23mm miniature footprint allows for seamless integration into space-constrained robotic heads or drone gimbals.
- IP67 Ruggedization: Built to withstand harsh conditions, offering full protection against dust ingress and water immersion.
- Customizable Optics: Wide selection of interchangeable lenses (30H to 195H) to perfectly match your specific field-of-view requirements.
Specification
| Camera | |
| Resolution | 1080P |
| Chroma | Color |
| Shutter Type | Global Shutter |
| Optical Format | 1/2.6" |
| Pixel Size | 3.0 µm x3.0 µm |
| Sensor Active Area | 1920(H)×1080(V) |
| Sensor Image Area | 5.760 mm x 3.240 mm (6.61 mm diagonal) |
| Resolution@fps | 1920x1080@30fps |
| ISP | On-Board ISP |
| Default Lens | |
| Focus Type | Fixed Focus |
| FOV | 134 °(D)×120 °(H)×64 °(V) |
| Lens Mount | M12 Mount |
| F.NO | F2.2 |
| E.F.L | 3mm |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Max Optical Distortion | -92.20% |
| Alignment Method | Active Alignment (AA) |
| Functional and Compatibility | |
| Camera Interface | GMSL2 |
| Connector | FAKRA male type Z |
| Output Format | UYVY |
| HDR | 68dB HDR |
| SNR | 38dB |
| Serializer | MAX96717F |
| Electrical and Mechanical | |
| GMSL Cable Length | 1m by default, up to 15m (please contact [email protected] for 15m cable) |
| Operating Voltage | 8V~16V |
| Power Consumption | Max:1.2W |
| Overall Weight (Net) | 50g |
| Overall Size | L23*W23*H31.17 |
| Standard and Certifications | |
| Temperature range (Storage) | -40°F-203°F (-40°C to +95°C) |
| Temperature range (Operating) | -40°F-185°F (-40°C to +85°C) |
| Ingress Protection | IP67 |
| Certification | CE & RoHS |
Package Including
- 1 x Arducam RR-GMSL2-1080P-GS-120H-IP67 Camera
- 1 x 1m FAKRA Coax Cable
Note
- This product does not come with a GMSL2 RX Deserializer Board by default. For specific GMSL RX platform adaptation or compatibility inquiries, please contact Arducam Sales in advance.
Documentation
- Datasheet-Camera Module
- Quick Start Guide
GMSL Camera Selection Guide
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
