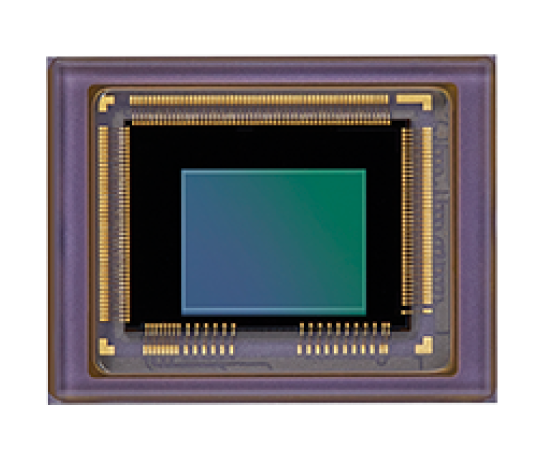

Powered by Sony’s Star Sensor: The IMX900 Advantage
A 1/3.1-type global shutter sensor with 2.25 µm miniature pixels and roughly 3.2 effective megapixels — engineered for compact industrial cameras without compromise.
Sony IMX900 · 1/3.1-type Global Shutter2.25 µm · 3.2 MP
01
Compact, with pixel miniaturization
The IMX900 is a 1/3.1-type global shutter image sensor that uses 2.25 µm miniature pixels to achieve a high resolution of approximately 3.2 effective megapixels and supports the S-mount (M12), which is widely used in industrial cameras. This compact package enables great freedom in lens choice, meeting a variety of photographic needs and providing high-quality images.
02
Greatly improved incident light angle dependency
Incident light angle dependency is the light-condensing characteristic for light incidence on the pixels of an image sensor at an angle. The pixel aperture ratio is increased by using an original pixel structure developed on Pregius S™ technology, successfully achieving a great improvement of incident light angle dependency. This enables much more freedom in lens choice and design, contributing to expanding the scope of applications.
03
Enhanced NIR region sensitivity
Thanks to the newly developed pixel structure, the IMX900 achieves nearly double sensitivity in the NIR region (850 nm) compared to a conventional product. It can be applied to use cases that utilize NIR lighting, such as product inspection and AGV/AMR applications. It also features improved sensitivity on the red wavelength, making it optimal for barcode reading using red lighting.
Info source: sony-semicon.com
Key Performance Highlights
Built for the Edge of What’s Possible
Every element of the IMX900 series is engineered for spatial computing at industrial scale.
Microsecond Hardware Sync
Built-in MAX96717/MAX96724 architecture for frame-accurate stereo and multi-camera spatial computing.
IP65 Industrial Enclosure
Weather-resistant and dust-tight design built for rugged robotics and factory floors.
15m Long-Range GMSL2
Stable, low-latency coaxial video transmission without signal degradation.
125° Wide Horizontal Field of View
Ultra-wide optical coverage optimizing surround-view perception and VSLAM.
Product Lineup
One Sensor. Two Ways to Deploy.

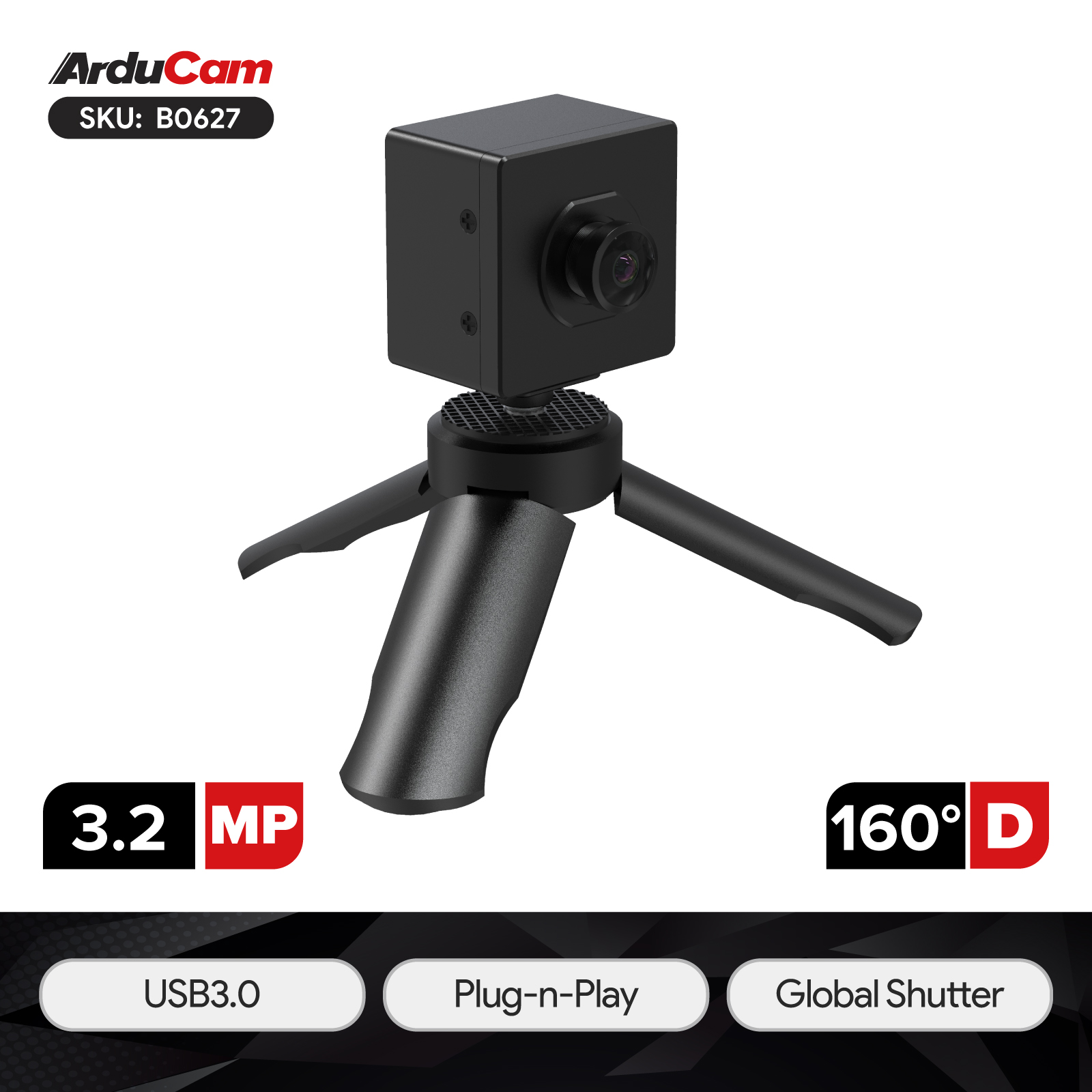

From multi-camera GMSL2 kits purpose-built for NVIDIA Jetson to a driverless USB3 evaluation camera — pick the integration path that matches your timeline.

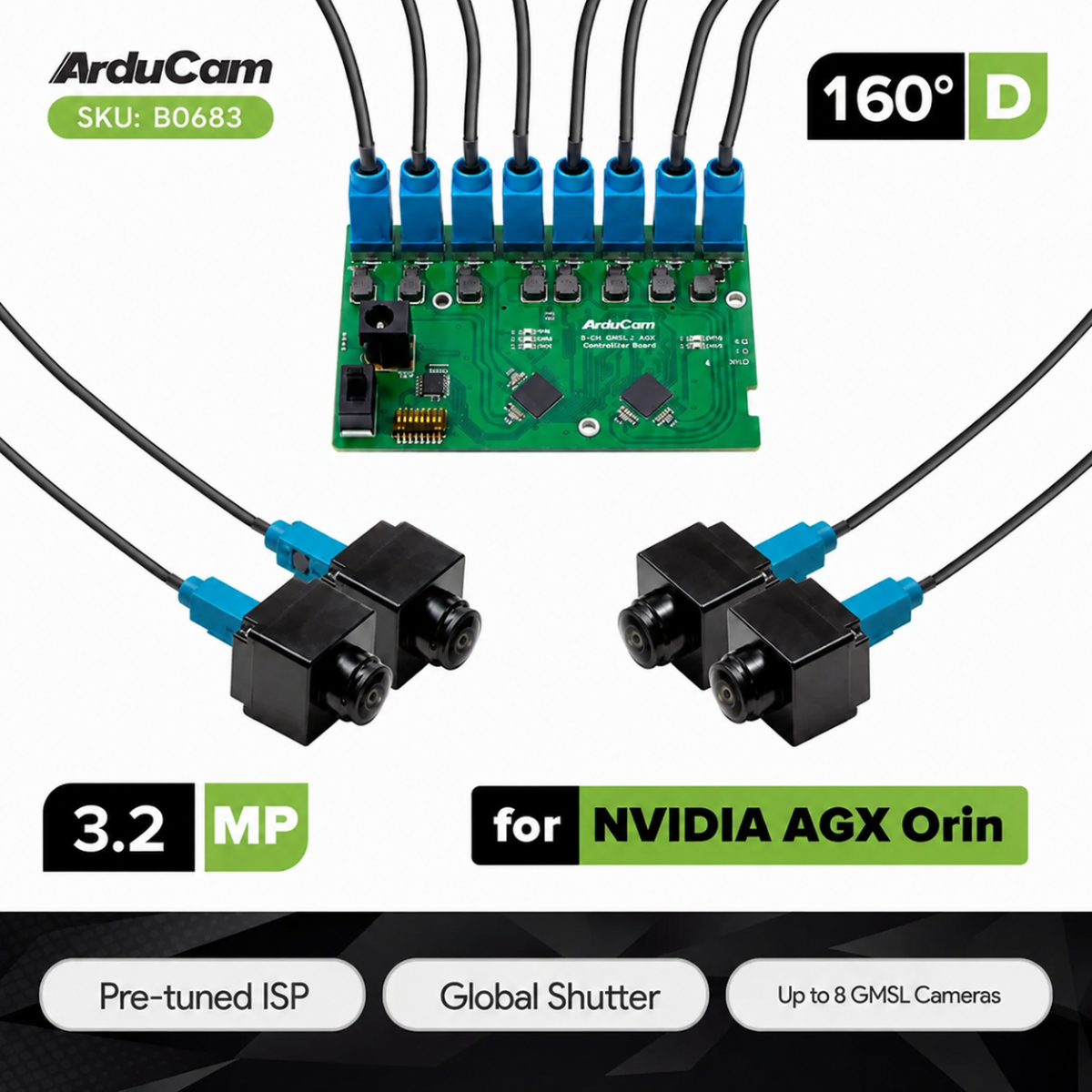

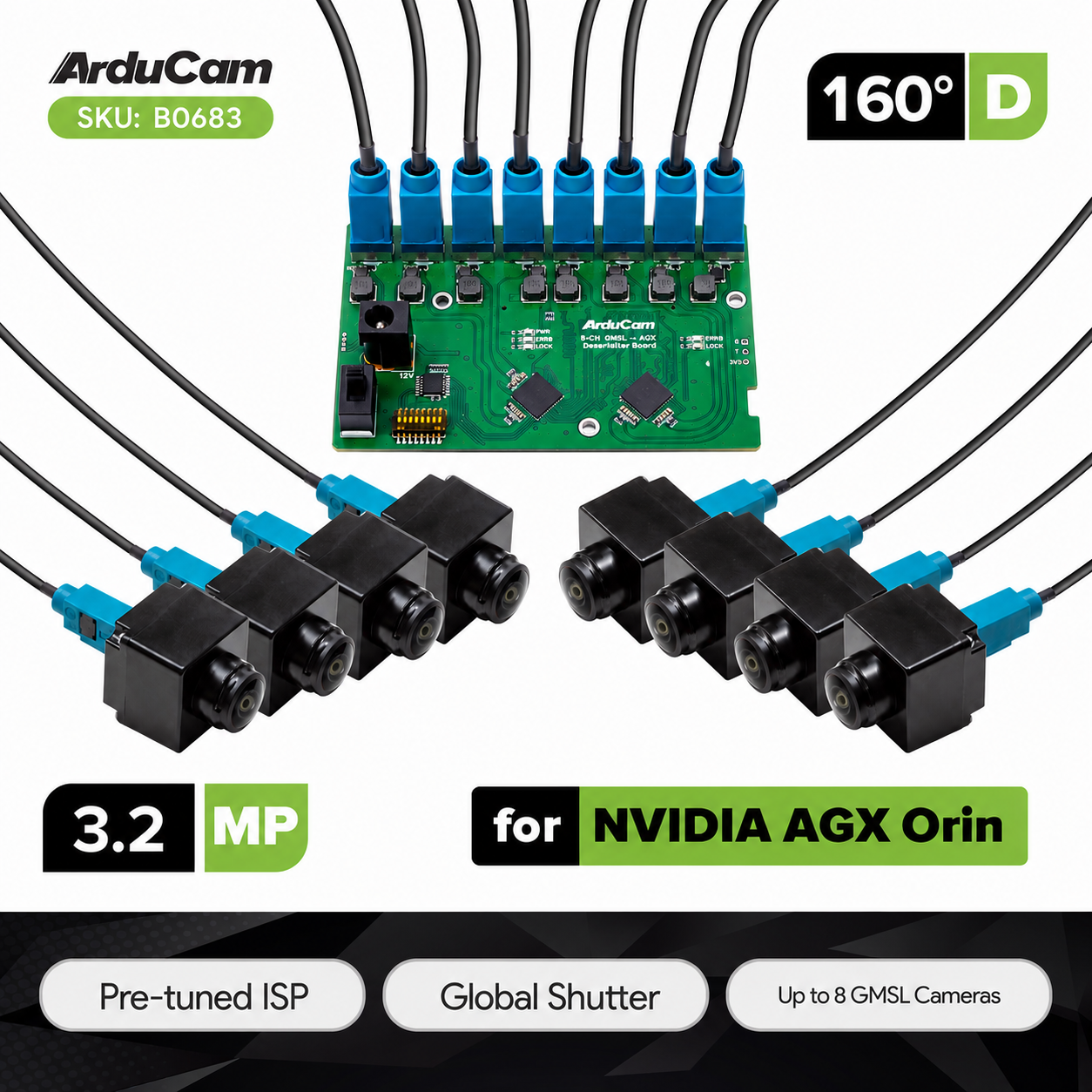

GMSL2 Multi-Camera Kits for NVIDIA Jetson
3 Products

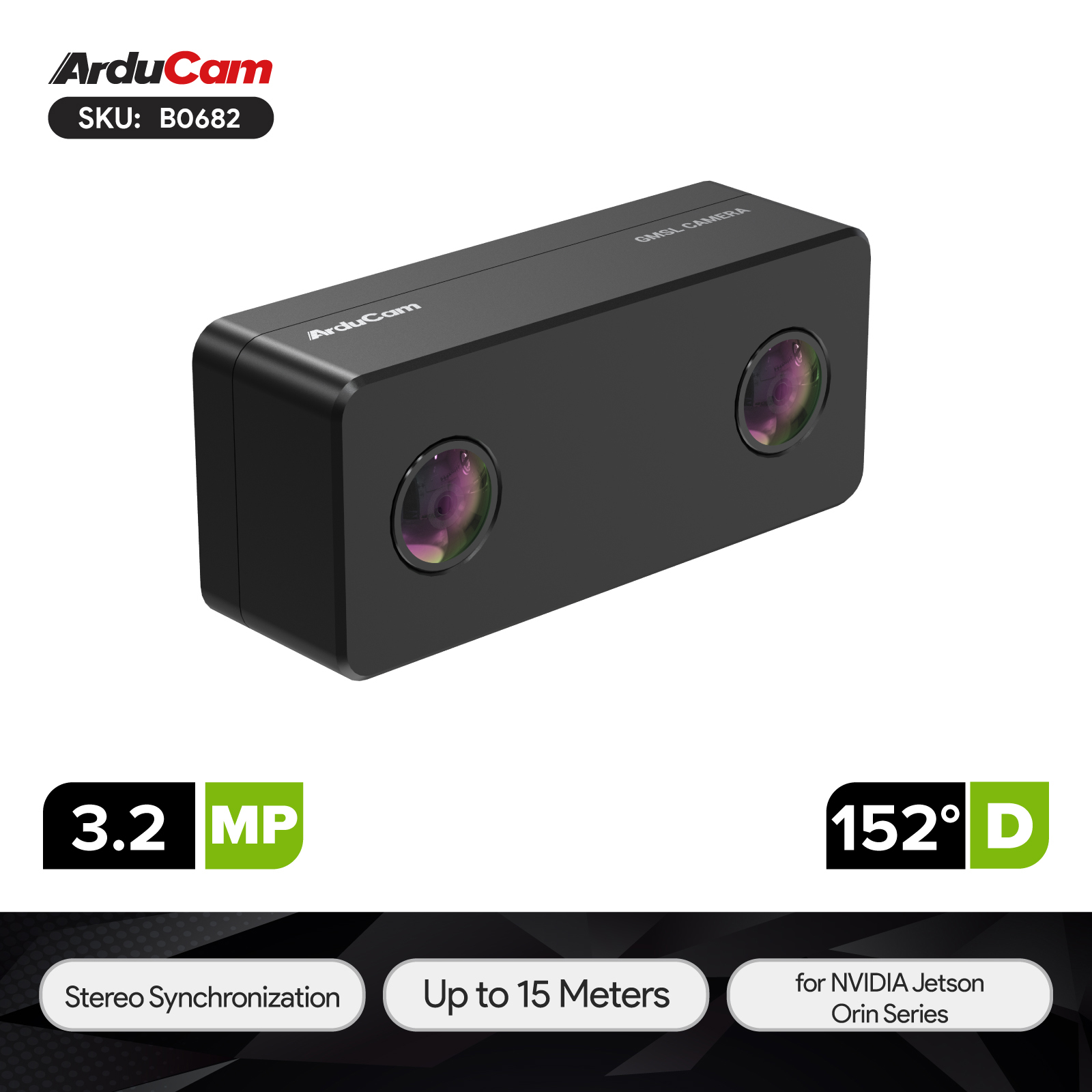

SKU # B0682
Dual-Camera Synchronized GMSL2 Kit
Professional NVIDIA ISP Tuning — pre-tuned for Jetson Orin: clear, accurate 1920×1536@30fps color imaging out of the box.
Native Jetson Orin Support — seamlessly compatible with Orin NX and Nano running JetPack 6.2.2 (L4T 36.5.0).
Precision Stereo Vision — hardware-level microsecond synchronization via GMSL2 for high-confidence depth estimation and VSLAM.
125° HFOV (152° DFOV) Lens — broad coverage providing dense visual data for spatial AI applications.
From warehouse floors to production lines, the IMX900 series keeps machines seeing clearly at speed.
Robotics

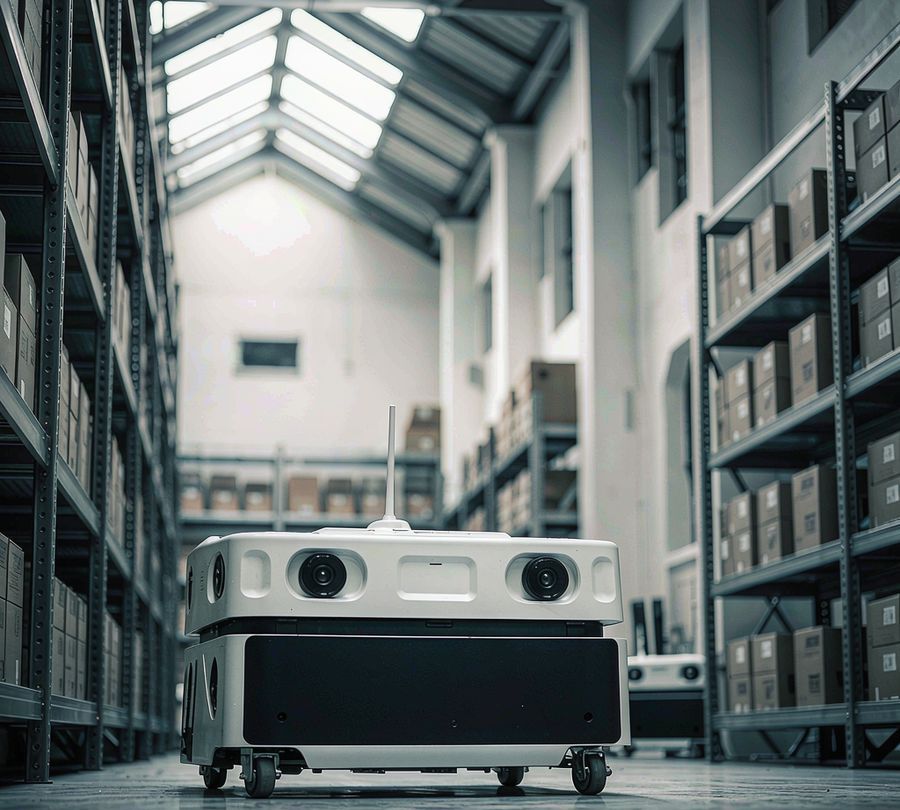

AMR (Autonomous Mobile Robots)
Eliminates rolling shutter artifacts while traversing variable environments. Dual, 4-, and 8-camera GMSL2 configurations offer wide 125° coverage and microsecond sync for reliable VSLAM positioning and spatial obstacle avoidance.
Factory Automation

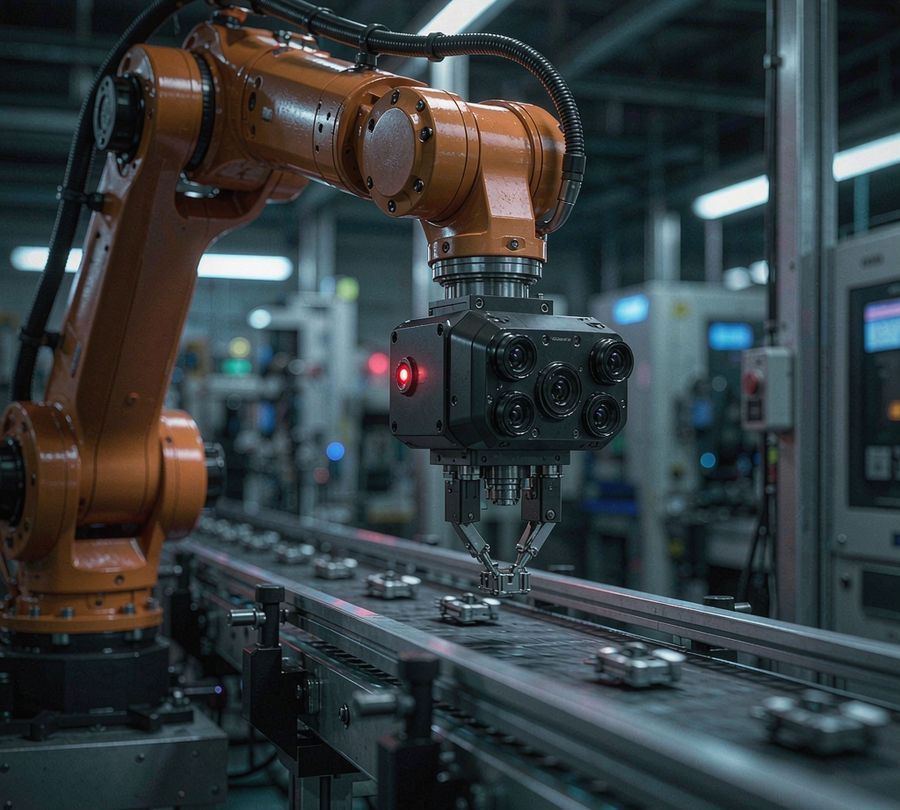

Picking Robots & Automated Arms
Captures fast-moving items in real time without geometrical skew. Enhanced NIR sensitivity combined with fast auto-exposure ensures high pick-and-place accuracy under fluctuating factory illumination.
Logistics

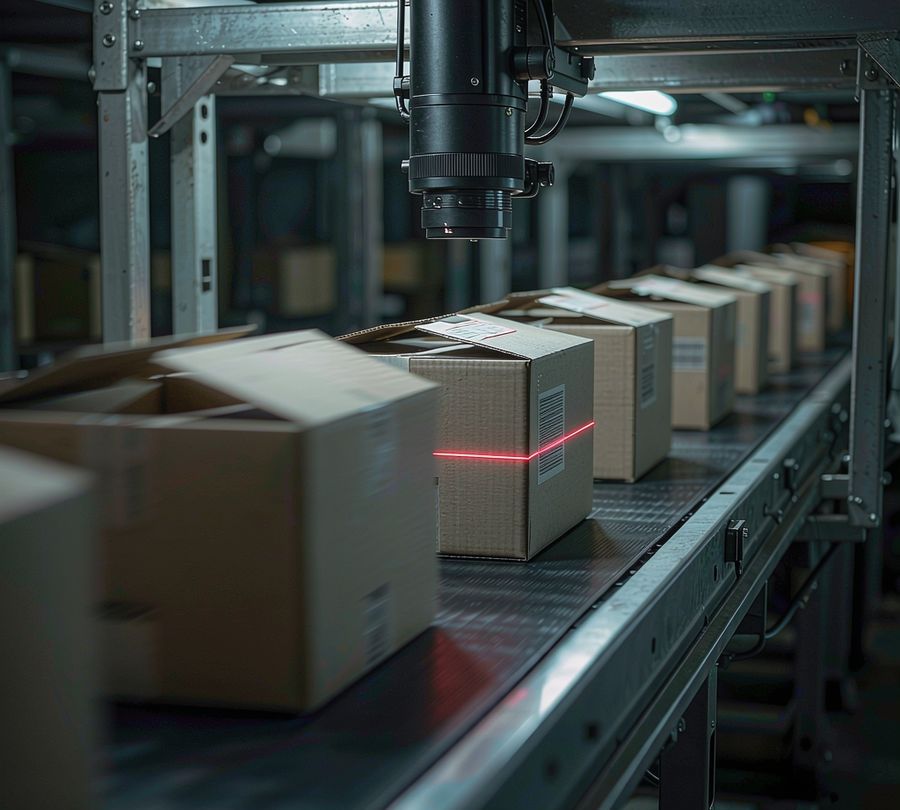

High-Speed Barcode Scanning
Delivers consistent, distortion-free reads on rapid conveyor systems. Fast AE and superior infrared response maintain high throughput across reflective, low-light, or moving surfaces.
Why Arducam
Why Industry Leaders Choose Arducam IMX900 Cameras?
01
Rapid Integration
Built on the Arducam open ecosystem. Native support for Jetson & Raspberry Pi with open-source drivers. Start coding in minutes, not months.
02
Production Hardened
Global Shutter sensors everywhere. GMSL2 links for interference-free data. Hardware synchronized for precise VSLAM. Built to survive vibration and heat.
03
Cost-Effective Scale
Don’t pay the “Industrial Tax”. Get 95% of the performance of high-end industrial cameras at 30–50% of the cost. Perfect for fleet deployment.
Ready to Accelerate Your Vision Deployment?
Whether you require off-the-shelf camera kits or custom optical modifications for volume production, our engineering team is here to assist.
