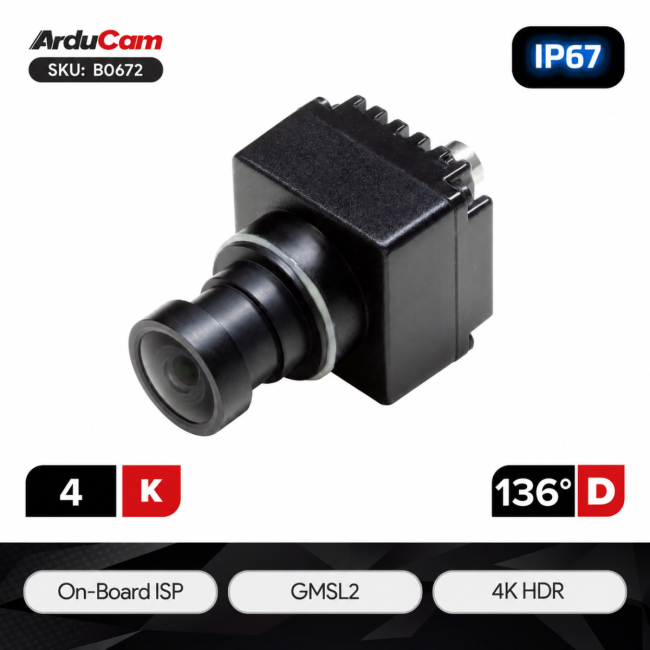

Arducam RapidRange-4K HDR 120°(HFOV) Wide-Angle GMSL2 IP67 Camera Module
SKU
B0672
Part No
RR-GMSL2-4K-RS-120H-IP67
- High Resolution: 4K (8MP) clarity for precision imaging and identification.
- GMSL2 Technology: Reliable, long-distance data transmission with low latency.
- HDR Performance: Captures vivid details in extreme lighting conditions (High Dynamic Range).
- Industrial Ruggedness: IP67-rated enclosure for reliable outdoor and industrial deployment.
- Flexible FOV: Default 136°(D) x 120°(H) lens; optional 30°H and 60°H versions available.
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
This 4K GMSL2 camera module is a high-performance imaging solution designed for long-distance, low-latency applications in challenging environments. Featuring an on-board Image Signal Processing (ISP) and HDR support, the camera delivers pre-processed, high-dynamic-range 8MP video even in high-contrast lighting. Its IP67-rated rugged enclosure ensures reliable operation against dust and water, making it ideal for automotive, robotics, and industrial vision systems.
Applications
- ADAS & Autonomous Driving
- AMR & Delivery Robots
- Industrial Inspection
- Smart Agriculture
- Outdoor Surveillanc
Features
- 4K Ultra HD & HDR: 8MP resolution combined with High Dynamic Range (HDR) for superior detail in both highlight and shadow areas.
- Advanced GMSL2 Interface: Supports high-bandwidth, low-latency video transmission over coax cables up to 15 meters.
- On-Board ISP: Integrated hardware ISP handles de-Bayering, noise reduction, and color correction for ready-to-use output.
- IP67 Waterproof & Dustproof: Industrial-grade sealing protects the camera from water immersion and dust ingress.
- Configurable Optics: Available with multiple lens options (30°H / 60°H / Default 120°H) to suit varied field-of-view requirements.
Specification
| Camera | |
| Resolution | 8.3MP(4K) |
| Chroma | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/1.73" |
| Pixel Size | 2.1 µm x2.1 µm |
| Sensor Active Area | 3840(H)×2160(V) |
| Sensor Image Area | 8.064 mm x 4.536 mm (9.252 mm diagonal) |
| Resolution@fps | 3840x2160@30fps |
| ISP | On-Board ISP |
| Default Lens | |
| Focus Type | Fixed Focus |
| FOV | 136 °(D)×120 °(H)×65.5 °(V) |
| Lens Mount | M12 Mount |
| F.NO | F1.6 |
| E.F.L | 4.01mm |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Max Optical Distrotion | -58.1% |
| Alignment Method | Active Alignment (AA) |
| Functional and Compatibility | |
| Camera Interface | GMSL2 |
| Connector | FAKRA male type Z |
| Output Format | UYVY |
| HDR Support | Yes |
| LFM Support | Yes |
| Serializer | MAX9295A |
| Electrical and Mechanical | |
| GMSL Cable Length | 1m by default, up to 15m (please contact [email protected] for 15m cable) |
| Operating Voltage | 8V~16V |
| Power Consumption | Max:3W |
| Overall Weight (Net) | 60g |
| Overall Size | L30*W30*H41.5 |
| Standard and Certifications | |
| Temperature range (Storage) | -40°F-203°F (-40°C to +95°C) |
| Temperature range (Operating) | -40°F-185°F (-40°C to +85°C) |
| Ingress Protection | IP67 |
| Certification | CE & RoHS |
Package Including
- 1 x Arducam RR-GMSL2-4K-RS-120H-IP67 Camera
- 1 x 1m FAKRA Coax Cable
Note
- This product does not come with a GMSL2 RX Deserializer Board by default. For specific GMSL RX platform adaptation or compatibility inquiries, please contact Arducam Sales in advance.
Documentation
GMSL Camera Selection Guide
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
