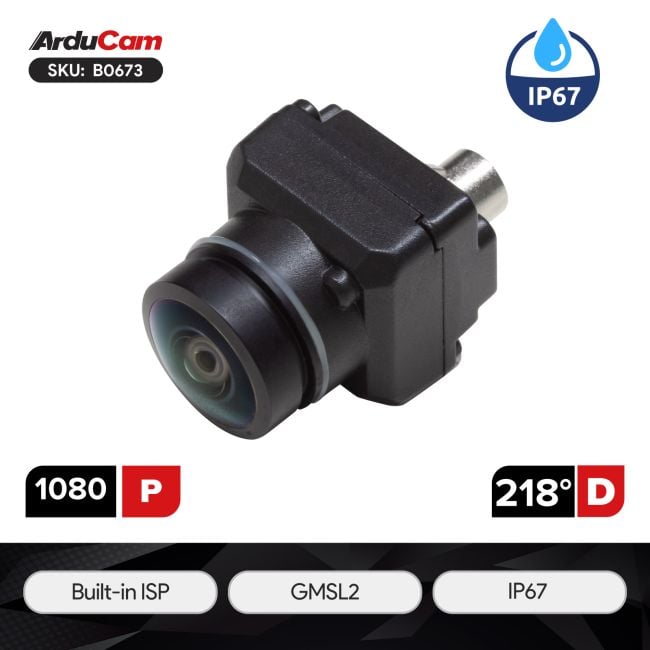

Arducam RapidRange 1080P Low Light 195 °(HFOV) Fisheye GMSL2 IP67 Camera Module
SKU
B0673
Part No
RR-GMSL2-1080P-RS-195H-IP67
- Crisp 1080P Video: Full HD resolution at 30fps with enhanced high-sensitivity low-light performance.
- Ultra-Wide Perspective: Default 218°(D) x 195°(H) lens for maximum situational awareness.
- Miniature Design: Extremely small 23x23mm housing for covert or space-limited integration.
- GMSL2 Interface: Ensures high-speed, low-latency data transmission over coaxial cables.
- Ruggedized & Waterproof: IP67 rating ensures durability in outdoor and industrial deployments.
- Customizable FOV: Choose from 30°H, 60°H, 100°H, 120°H, or the default 195°H lens options.
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
This ultra-compact 1080p GMSL2 camera module is engineered for high-performance imaging in space-constrained and harsh environments. Measuring only 23x23mm, it integrates a built-in ISP and a high-sensitivity sensor that excels in low-light conditions. With its IP67-rated housing and GMSL2 interface, this camera provides a robust, low-latency video solution for long-distance transmission, making it perfect for surround-view systems and industrial robotics.
Applications
- 360° Surround View Systems
- AMR & Delivery Robots
- UAVs & Drones
- Automotive Rear-View & Parking Assist
- Industrial Endoscopy & Inspection
Features
- High-Sensitivity Low-Light Imaging: Optimized sensor performance ensures clear, low-noise 1080p video at 30fps in dimly lit environments.
- Ultra-Compact Form Factor: The 23x23mm footprint allows for flexible installation in the tightest mounting positions.
- Built-in ISP & GMSL2: Features an integrated ISP for automated image enhancement and a GMSL2 interface for reliable, long-reach connectivity.
- Industrial-Grade Protection: Fully sealed IP67 enclosure provides complete protection against water immersion and dust.
- Versatile Lens Ecosystem: Offers multiple FOV options ranging from narrow 30°H to ultra-wide 195°H to meet diverse application needs.
Specification
| Camera | |
| Resolution | 1080P |
| Chroma | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/2.8" |
| Pixel Size | 2.9 µm x 2.9 µm |
| Sensor Active Area | 1920(H)×1080(V) |
| Sensor Image Area | 5.568 mm x 3.132 mm (6.479 mm diagonal) |
| Resolution@fps | 1920x1080@30fps |
| ISP | Built-in ISP |
| Default Lens | |
| Focus Type | Fixed Focus |
| FOV | 218 °(D)×195 °(H)×154 °(V) |
| Lens Mount | M12 Mount |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Alignment Method | Active Alignment (AA) |
| Functional and Compatibility | |
| Camera Interface | GMSL2 |
| Connector | FAKRA male type Z |
| Output Format | UYVY |
| Serializer | MAX96717F |
| Electrical and Mechanical | |
| GMSL Cable Length | 1m by default, up to 15m (please contact [email protected] for 15m cable) |
| Operating Voltage | 7V~16V |
| Power Consumption | Max:1W |
| Overall Weight (Net) | 50g |
| Overall Size | L23*W23*H31.17 |
| Standard and Certifications | |
| Temperature range (Storage) | -22°F-203°F (-30°C to +95°C) |
| Temperature range (Operating) | -22°F-185°F (-30°C to +85°C) |
| Ingress Protection | IP67 |
| Certification | CE & RoHS |
Package Including
- 1 x Arducam RR-GMSL2-1080P-RS-195H-IP67 Camera
- 1 x 1m FAKRA Coax Cable
Note
- This product does not come with a GMSL2 RX Deserializer Board by default. For specific GMSL RX platform adaptation or compatibility inquiries, please contact Arducam Sales in advance.
Documentation
- Datasheet-Camera Module
- Quick Start Guide
GMSL Camera Selection Guide
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
