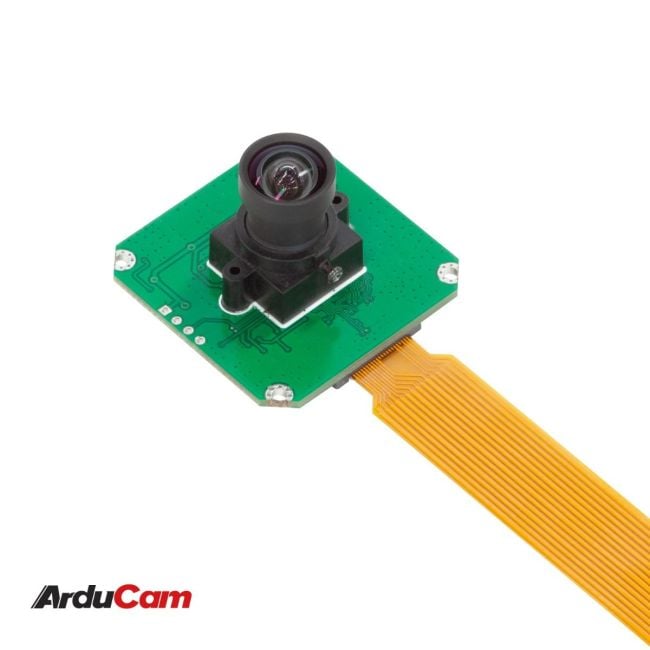

Arducam 18MP AR1820HS Color 1/2.3‘’ CMOS Color Rolling Shutter Camera Module for Raspberry Pi
SKU
B0164
- Note; This camera is currently discontinued, please refer to B0367
- Check Jetson Nano version SKU: B0216
- More: USB 3.0 quick development?and evaluation board for sensors like AR1820HS.
$119.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam AR1820HS camera breakout incorporates ON Semiconductor 1/2.3−inch CMOS active−pixel digital imaging sensor AR1820HS with 1.25um x 1.25um A-PixHS™ BSI Pixel . It can support 18-megapixel (4912H x 3684V) digital still images at 24 fps and a 1080p plus additional 27 percent pixels for electronic image stabilization (2448H x 1378V) in digital video mode at 60 fps and 1080p120 fps.
Features
- Optical format 1/2.3−inch (4:3)
- Active pixels 4912H x 3684V
- Pixel size 1.25um x 1.25um
- Color filter array RGB Bayer pattern
- ADC resolution 12−bit, on−chip
- Responsivity 0.62 V/lux−sec (545 nm)
- Dynamic range 65.8 dB
- SNRMAX 36.3 dB
- Output Interface 4-Lane MIPI
- Frame Rate 4:3 – 18 Mp full resolution at 15 fps (MIPI-4L)
- 16:9 – 14 Mp aField of View (FOV)t 20 fps (MIPI-4L)
16:9 – 8 Mp at 30 fps (MIPI-4L)
16:9 – Full HD + 27.5%EIS at 60 fps
16:9 – Full HD at 120 fps - Field of View (FOV): 75° (H)
- Lens: Low distortion M12 lens (Part Number: M23390H08)
- IR Sensitive: build-in 650nm IR filter, visible light only
Applications
- Digital video cameras
- Digital still cameras
- Industrial camera
- Medical camera
- Microscopy camera
- UAV camera
Package including
- 1 pcs Arducam CMOS AR1820HS 1/2.3−inch 18MP Color Camera Module
- 1 pcs 80mm 22pin FPC cable
- 1 pcs 150mm 15pin to 22pin FPC cable
NOTE: The camera module is the RAW sensor which doesn’t include ISP (Image Signal Processing) on the image sensor chip, so it only supports manual exposure, manual white balance, manual gain settings.
Lens Options
| SKU | LN056 | LN031 | LN074 | ||||||||
|
Part No: |
M17350H08 |
M2025ZM02 |
M231250H03 |
M2306ZM13 |
M23390H08 |
M23356H09 |
M23270H10 |
M23325H12 |
M23272M14 |
M25156H18 |
M27150H19 |
| Optical Format | 1/2.3' | 1/2.3' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3' | 1/2.3' |
| EFL(mm) | 35.00 | 25.00 | 12.50 | 6.00 | 3.90 | 3.56 | 2.70 | 3.25 | 2.27 | 1.56 | 1.50 |
| BFL(mm) | 5.50 | 5.20 | 2.11 | 7.56 | 4.49 | 5.92 | 4.97 | 4.10 | 3.01 | 4.30 | 5.19 |
| Construction | 5G | 6G | 6G+IR | 6G+IR | 6G+IR | 4G3P+IR | 5G2P+IR | 7G+IR | 8G+IR | 6G+IR | 9G+IR |
| F/NO | 3.0 | 2.0 | 2.35 | 2.0 | 2.8 | 2.5 | 2.8 | 2.2 | 2.5 | 2.0 | 1.8 |
| HFOV on 1/2.3‘’ Cam | 8° | 20° | 30° | 50° | 75° | 90° | 100° | 120° | 140° | 180° | 190° |
| IR filter | No IR filter | No IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter |
| MOD | 0.35m | 0.20m | 0.30m | 0.30m | 0.30m | 0.20m | 0.30m | 0.30m | 0.20m | 0.20m | 0.30m |
|
Size(mm) |
22x 29.3 | 17 x 21 | 14 x 22.72 | 16x 16.41 | 14x 18.67 | 14x 16.3 | 16x 18.43 | 17x 19 | 17.2x 22 | 20x 17.3 | 24x 16.9 |
NOTE: The M12 Lens kit for the HQ/AR1820HS Camera module, please check LK003, 6 lenses are included.
NOTE: For the sample order, please order the lens you need to replace separately and Contact us in advance for customization if you would like to replace the lenses on the Camera board.
Documentation
18MP AR1820HS
Introduction Arducam AR1820HS camera breakout incorporates ON Semiconductor 1/2.3−inch CMOS active−pixel digital imaging sensor AR1820HS with 1.25um x 1.25um A-PixHS™ BSI Pixel . It can support 18-megapixel (4912H x 3684V) digital still images at 24 fps and a 1080p plus additional 27 percent pixels for electronic image stabilization (2448H x 1378V) in digital video mode […]
User guide.pdf
Datasheet.pdf |
Blog
Arducam USB3.0 Camera Shield
Introduction Arducam USB3 camera shield is the latest USB3.0 camera shields, it offers the improved performance and enhanced functions than the previous USB2.0 camera shield. It not only supports high resolution and high frame rate image sensors, but also supports stereoscopy camera and IRCUT control feature. With the given camera configuration files, user can switch […]
Github
Raspberry Pi Camera Selection Guide
| SKU | Product | Resolution | Color | Shutter | Camera board | Mount | IR sensitivity | Focus |
|---|---|---|---|---|---|---|---|---|
| B0161 | 0.3MP Monochrome Global Shutter | 0.3MP | B/W | Global shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0162 | 1MP Monochrome Global Shutter | 1MP | B/W | Global shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0165 | 1MP Monochrome Global Shutter M12 Mount | 1MP | B/W | Global shutter | 40mm | M12 | Visible light | Adjustable |
| B0031 | 5MP M12 | 5MP | RGB | rolling shutter | 36mm | M12 | Visible light | Adjustable |
| B0032 | 5MP CS Mount | 5MP | RGB | rolling shutter | 36mm | CS | Visible light | Adjustable |
| B0033 | 5MP | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B0033+B0087 | 5MP with Pi Zero Cable | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B003301 | 5MP NoIR | 5MP | RGB | rolling shutter | 24mm | Stock | IR sensitive | Fixed Focus |
| B0033C | 5MP with case | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B0033R | 5MP with long Ribbon Cable | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B0035 | 5MP M12 NOIR | 5MP | RGB | rolling shutter | 36mm | M12 | IR sensitive | Adjustable |
| B003503 | 5MP Switchable IR-cut with LED | 5MP | RGB | rolling shutter | 36mm | M12 | Switchable IR filter | Adjustable |
| B0036 | 5MP CS Mount CS NOIR | 5MP | RGB | rolling shutter | 36mm | CS | IR sensitive | Adjustable |
| B0055 | 5MP M12 Fisheye | 5MP | RGB | rolling shutter | 36mm | M12 | Visible light | Adjustable |
| B0066 | 5MP Cam | 5MP | RGB | rolling shutter | spy cam | Stock | Visible light | Fixed Focus |
| B006602 | 5MP NOIR | 5MP | RGB | rolling shutter | spy cam | Stock | IR sensitive | Fixed Focus |
| B006603 | 5MP Pi zero spy cam 60 | 5MP | RGB | rolling shutter | spy cam Zero | Stock | Visible light | Fixed Focus |
| B006604 | 5MP Pi zero spy cam 120 | 5MP | RGB | rolling shutter | spy cam Zero | Stock | Visible light | Fixed Focus |
| B006605 | 5MP Pi zero spy cam 160 | 5MP | RGB | rolling shutter | spy cam Zero | Stock | Visible light | Fixed Focus |
| B0121 | 5MP AutoFocus | 5MP | RGB | rolling shutter | 40mm | Stock | Visible light | Programmable |
| B0151 | 5MP Switchable IR-cut | 5MP | RGB | rolling shutter | 36mm | M12 | Switchable IR filter | Adjustable |
| B01675MP | 5MP PTZ | 5MP | RGB | rolling shutter | 36mm | F14 | Switchable IR filter | Varifocal |
| B0176 | 5MP AutoFocus mini | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Programmable |
| B0102 | 8MP CS | 8MP | RGB | rolling shutter | 36mm | CS | Visible light | Adjustable |
| B0103 | 8MP M12 | 8MP | RGB | rolling shutter | 36mm | M12 | Visible light | Adjustable |
| B0122 | 8MP AutoFocus | 8MP | RGB | rolling shutter | 40mm | Stock | Visible light | Programmable |
| B0152 | 8MP M12 NOIR | 8MP | RGB | rolling shutter | 36mm | M12 | IR sensitive | Adjustable |
| B0153 | 8MP CS NoIR | 8MP | RGB | rolling shutter | 36mm | CS | IR sensitive | Adjustable |
| B0154 | 8MP M12 Switchable IR-cut | 8MP | RGB | rolling shutter | 36mm | M12 | Switchable IR filter | Adjustable |
| B01678MP | 8MP PTZ | 8MP | RGB | rolling shutter | 36mm | F14 | Switchable IR filter | Varifocal |
| B0180 | 8MP IMX219 replacement M12 170 Wide Angle | 8MP | RGB | rolling shutter | Sensor Module | M12 | Visible light | Adjustable |
| B0182 | 8MP IMX219 replacement Autofocus | 8MP | RGB | rolling shutter |
