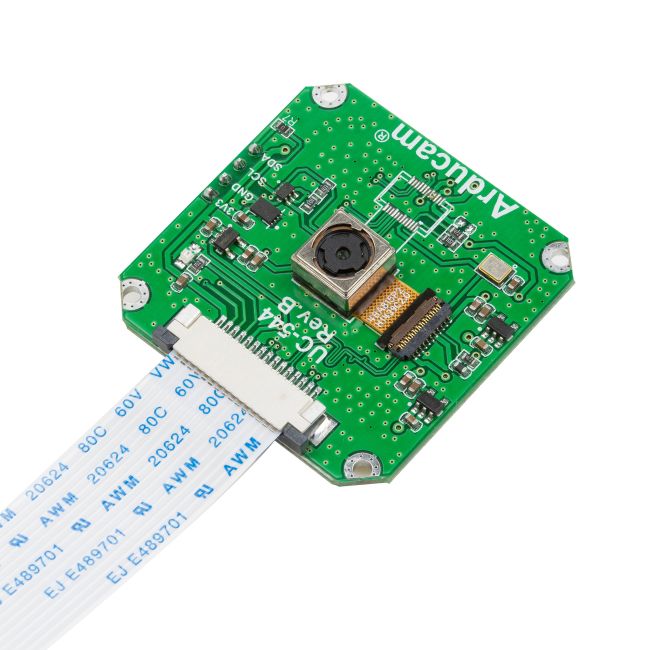

Arducam 8MP Motorized Focus 8MP Camera IMX219 Sensor for Raspberry Pi 4/3B+/3
SKU
B0122
Note: This product was discontinued. Please check the new version-SKU: B0182.
$64.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The standard pi camera is a fixed focus lens, some of them are glued which can not be adjusted by users, and some of them are not glued which can adjust the lens focus manually. But in certain circumstances, you want to programmable control the focus distance remotely where the device can not be reached. The ArduCAM team now designed a motorized control focus 5MP and 8MP camera module for Raspberry Pi series boards to address this problem.
To learn more about autofocus with Raspberry Pi camera modules, we recommend you read Raspberry Pi Camera Autofocus: The Complete Guide.
Features
- High-Definition video camera for Raspberry Pi Model A/B/B+ and Raspberry Pi 2 Pi 3B, Pi 3B+ and Pi Zero
- 8MP IMX219 sensor with motorized focus lens
- Integral IR filter
- Angle of View: 54 x 41 degrees
- Field of View: 2.0 x 1.33 m at 2 m
- Full-frame SLR lens equivalent: 35 mm
- Focus distance: 4 cm to infinity (can be customized to much closer distance)
- Size: 40 x 40 mm
- 15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector
Package Including
- 1pcs Motorized Focus 8MP Camera IMX219 for Raspberry Pi
- 1pcs 15cm 15pin FPC cable
Documentation
8MP IMX219 Motorized Focus Camera Module
Introduction Arducam 8MP IMX219 Motorized Focus Camera Modules are designed for you to control the focus via software, so you can see closer and see where you want to see. To learn more about autofocus with Raspberry Pi camera modules, we recommend you read Raspberry Pi Camera Autofocus: The Complete Guide. Models in this Series There […]
Datasheet.pdf |
Blog
Solving the Raspberry Pi Camera V2 Focus Issue with An Auto-Focus Camera Module
The Focus Distance of a V2 Camera Module The viewing distance of the offical Raspberry Pi cameras is 1m to infinity, which means that you will extra works if you need to shoot closer than 1m. Introduction Problems with Fixed Focus In some simple applications, it’s fine to go with a fixed-focus camera. However, that’s […]
Video
Selection Guide
| SKU | Product | Resolution | Color | Shutter | Camera board | Mount | IR sensitivity | Focus |
|---|---|---|---|---|---|---|---|---|
| B0161 | 0.3MP Monochrome Global Shutter | 0.3MP | B/W | Global shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0162 | 1MP Monochrome Global Shutter | 1MP | B/W | Global shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0165 | 1MP Monochrome Global Shutter M12 Mount | 1MP | B/W | Global shutter | 40mm | M12 | Visible light | Adjustable |
| B0031 | 5MP M12 | 5MP | RGB | rolling shutter | 36mm | M12 | Visible light | Adjustable |
| B0032 | 5MP CS Mount | 5MP | RGB | rolling shutter | 36mm | CS | Visible light | Adjustable |
| B0033 | 5MP | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B0033+B0087 | 5MP with Pi Zero Cable | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B003301 | 5MP NoIR | 5MP | RGB | rolling shutter | 24mm | Stock | IR sensitive | Fixed Focus |
| B0033C | 5MP with case | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B0033R | 5MP with long Ribbon Cable | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B0035 | 5MP M12 NOIR | 5MP | RGB | rolling shutter | 36mm | M12 | IR sensitive | Adjustable |
| B003503 | 5MP Switchable IR-cut with LED | 5MP | RGB | rolling shutter | 36mm | M12 | Switchable IR filter | Adjustable |
| B0036 | 5MP CS Mount CS NOIR | 5MP | RGB | rolling shutter | 36mm | CS | IR sensitive | Adjustable |
| B0055 | 5MP M12 Fisheye | 5MP | RGB | rolling shutter | 36mm | M12 | Visible light | Adjustable |
| B0066 | 5MP Cam | 5MP | RGB | rolling shutter | spy cam | Stock | Visible light | Fixed Focus |
| B006602 | 5MP NOIR | 5MP | RGB | rolling shutter | spy cam | Stock | IR sensitive | Fixed Focus |
| B006603 | 5MP Pi zero spy cam 60 | 5MP | RGB | rolling shutter | spy cam Zero | Stock | Visible light | Fixed Focus |
| B006604 | 5MP Pi zero spy cam 120 | 5MP | RGB | rolling shutter | spy cam Zero | Stock | Visible light | Fixed Focus |
| B006605 | 5MP Pi zero spy cam 160 | 5MP | RGB | rolling shutter | spy cam Zero | Stock | Visible light | Fixed Focus |
| B0121 | 5MP AutoFocus | 5MP | RGB | rolling shutter | 40mm | Stock | Visible light | Programmable |
| B0151 | 5MP Switchable IR-cut | 5MP | RGB | rolling shutter | 36mm | M12 | Switchable IR filter | Adjustable |
| B01675MP | 5MP PTZ | 5MP | RGB | rolling shutter | 36mm | F14 | Switchable IR filter | Varifocal |
| B0176 | 5MP AutoFocus mini | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Programmable |
| B0102 | 8MP CS | 8MP | RGB | rolling shutter | 36mm | CS | Visible light | Adjustable |
| B0103 | 8MP M12 | 8MP | RGB | rolling shutter | 36mm | M12 | Visible light | Adjustable |
| B0122 | 8MP AutoFocus | 8MP | RGB | rolling shutter | 40mm | Stock | Visible light | Programmable |
| B0152 | 8MP M12 NOIR | 8MP | RGB | rolling shutter | 36mm | M12 | IR sensitive | Adjustable |
| B0153 | 8MP CS NoIR | 8MP | RGB | rolling shutter | 36mm | CS | IR sensitive | Adjustable |
| B0154 | 8MP M12 Switchable IR-cut | 8MP | RGB | rolling shutter | 36mm | M12 | Switchable IR filter | Adjustable |
| B01678MP | 8MP PTZ | 8MP | RGB | rolling shutter | 36mm | F14 | Switchable IR filter | Varifocal |
| B0180 | 8MP IMX219 replacement M12 170 Wide Angle | 8MP | RGB | rolling shutter | Sensor Module | M12 | Visible light | Adjustable |
| B0182 | 8MP IMX219 replacement Autofocus | 8MP | RGB | rolling shutter | Sensor Module | Stock | Visible light | Programmable |
| B0184 | 8MP IMX219 replacement M12 Low Distortion | 8MP | RGB | rolling shutter | Sensor Module | M12 | Visible light | Adjustable |
| B0188 | 8MP IMX219 replacement M12 Low Distortion NoIR | 8MP | RGB | rolling shutter | Sensor Module | M12 | IR sensitive | Adjustable |
| B0190 | 8MP IMX219 replacement Autofocus NoIR | 8MP | RGB | rolling shutter | Sensor Module | Stock | IR sensitive | Programmable |
| B1094 | 8MP IMX219 replacement M12 170 Wide Angle NoIR | 8MP | RGB | rolling shutter | Sensor Module | M12 | IR sensitive | Adjustable |
| B0163 | 13MP MIPI Camera | 13MP | RGB | rolling shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0174 | 16MP MIPI Camera | 16MP | RGB | rolling shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0164 | 18MP MIPI Camera | 18MP | RGB | rolling shutter | 40mm | M12 | Visible light | Adjustable |
