GET STARTED

Installation

Environment configuration and use based on Arduino IDE

Step 1. Click LIBRARY MANAGER in Arduino IDE

Step 2. Enter “arducam_mega” in the input box to search for the Arduacm_Mega library

Step 3. Click the INSTALL button and wait for the library to be installed successfully

Note

This demo is based on the Arduino UNO development board

How it Works

Note

Arducam has released a full-featured script, which can be used to check all the functions of the Arducam Mega. Here we explain the specific workflow on Arduino UNO platform.

setup()

myUart.arducamUartBegin(921600);
myCAM.begin();
myCAM.registerCallBack(readBuffer,200);

Initialize serial communication

Initialize serial communication, used for communication of Arducam Mega software.

Initialize the camera

Use the begin() function to initialize the camera configuration.After this function runs, the camera will be configured as JPEG data format and the resolution will be the maximum.

• Function prototype:

CamStatus begin(ArducamCamera* camera);

Register callback function

Register the callback function. This function will be called in streaming mode.

• Function prototype:

void registerCallback(ArducamCamera* camera, BUFFER_CALLBACK function, uint8_t blockSize);

Warning

Transmission length should be less than 255

loop()

In the loop, it follows the specific protocol Arducam defined to parse command sent by Arducam Mega host and do specific operation to response each command. The detail script is here:

Serial data receiving

if (myUart.arducamUartAvailable())
{
    temp = myUart.arducamUartRead();
    arducamDelayMs(5);
    if (temp == 0x55)
    {
        while (myUart.arducamUartAvailable())
        {
        commandBuff[commandLength] = myUart.arducamUartRead();
        if (commandBuff[commandLength] == 0xAA)
        {
            break;
        }
        commandLength++;
        }
        myUart.uartCommandProcessing(&(myCAM.cameraInfo),commandBuff,commandLength);
        commandLength = 0;
    }
}

Protocol analysis

uint8_t ArducamLink::uartCommandProcessing(Arducam* myCAM,uint8_t* commandBuff)
{
    ArducamCamera* cameraInstance = myCAM->getCameraInstance();
    CamStatus state;
    uint16_t gainValue = 0;
    uint32_t exposureValue = 0;
    uint32_t exposureLen1 = 0;
    uint32_t exposureLen2 = 0;
    uint32_t exposureLen3 = 0;

    uint8_t cameraResolution = cameraInstance->currentPictureMode;
    uint8_t cameraFarmat = cameraInstance->currentPixelFormat;
    switch (commandBuff[0])
    {
        case SET_PICTURE_RESOLUTION:                                                                                                                                //Set Camera Resolution
            cameraResolution = commandBuff[1] & 0x0f;
            cameraFarmat = (commandBuff[1] & 0x70) >> 4;
            myCAM->takePicture((CAM_IMAGE_MODE)cameraResolution,(CAM_IMAGE_PIX_FMT)cameraFarmat);
            break;
        case SET_VIDEO_RESOLUTION:                                                                                                                          //Set Video Resolution
            cameraResolution = commandBuff[1] & 0x0f;
            state = myCAM->startPreview((CAM_VIDEO_MODE)cameraResolution);
            if (state == CAM_ERR_NO_CALLBACK)
            {
                Serial.println("callback function is not registered");
            }
            break;
        case SET_BRIGHTNESS:                                                                                                                                //Set brightness
            myCAM->setBrightness((CAM_BRIGHTNESS_LEVEL)commandBuff[1]);
            break;
        case SET_CONTRAST:                                                                                                                          //Set Contrast
            myCAM->setContrast((CAM_CONTRAST_LEVEL)commandBuff[1]);
            break;
    ..............

flow chart

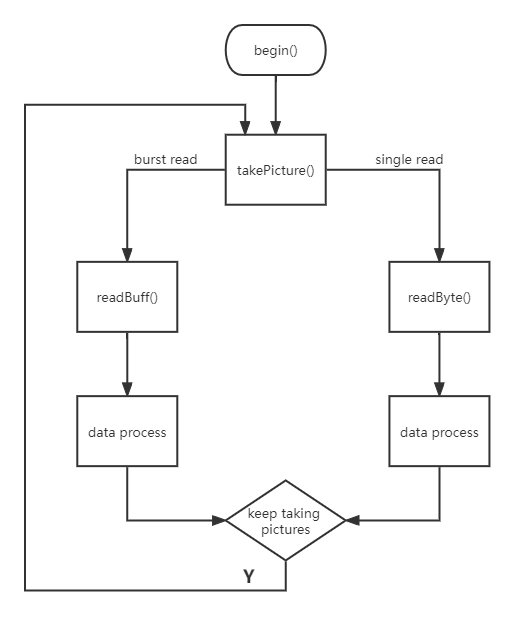

take pictures

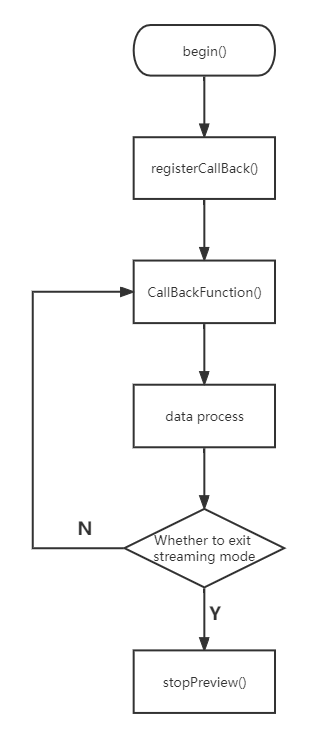

streaming mode
