Arduino DUE
Note
This demo is based on a 5MP camera
Hardware connection
Camera pin |
Development board pins |
---|---|
VCC |
5V |
GND |
GND |
SCK |
13 |
MISO |
12 |
MOSI |
11 |
CS |
7 |
full_featured
Select platform
![../../_images/selectPlatform.bmp](../../_images/selectPlatform.bmp)
Select example
![../../_images/selectFullFeatured.bmp](../../_images/selectFullFeatured.bmp)
Download program
![../../_images/download.bmp](../../_images/download.bmp)

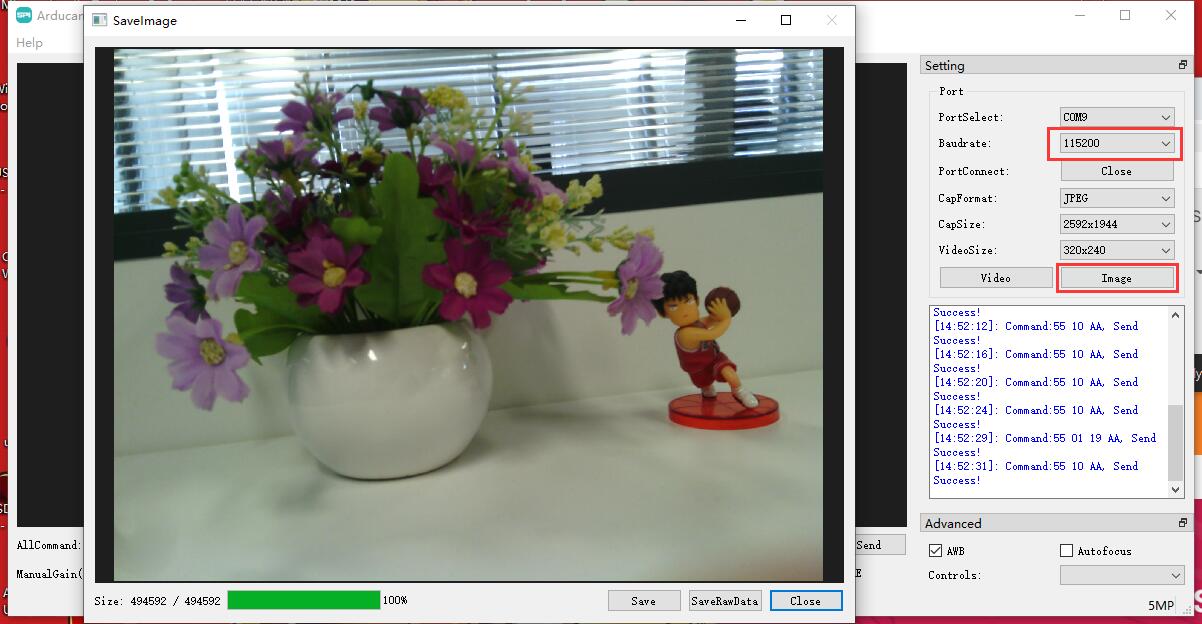

Effect demonstration
![../../_images/PcSoftware.jpg](../../_images/PcSoftware.jpg)
Note
The default is the maximum resolution, and the image pixel format is JPEG
capture2SD
Select example
![../../_images/selectCapture2SD.bmp](../../_images/selectCapture2SD.bmp)
Download program
![../../_images/capture2SDDownload.bmp](../../_images/capture2SDDownload.bmp)
Serial tool display information
![../../_images/capture2SDUartResult.jpg](../../_images/capture2SDUartResult.jpg)
SD card content is as follows
![../../_images/capture2SDResult.jpg](../../_images/capture2SDResult.jpg)
lowPowerMode
Select example
![../../_images/selectLowPowerMode.bmp](../../_images/selectLowPowerMode.bmp)
Download program
![../../_images/download1.bmp](../../_images/download1.bmp)

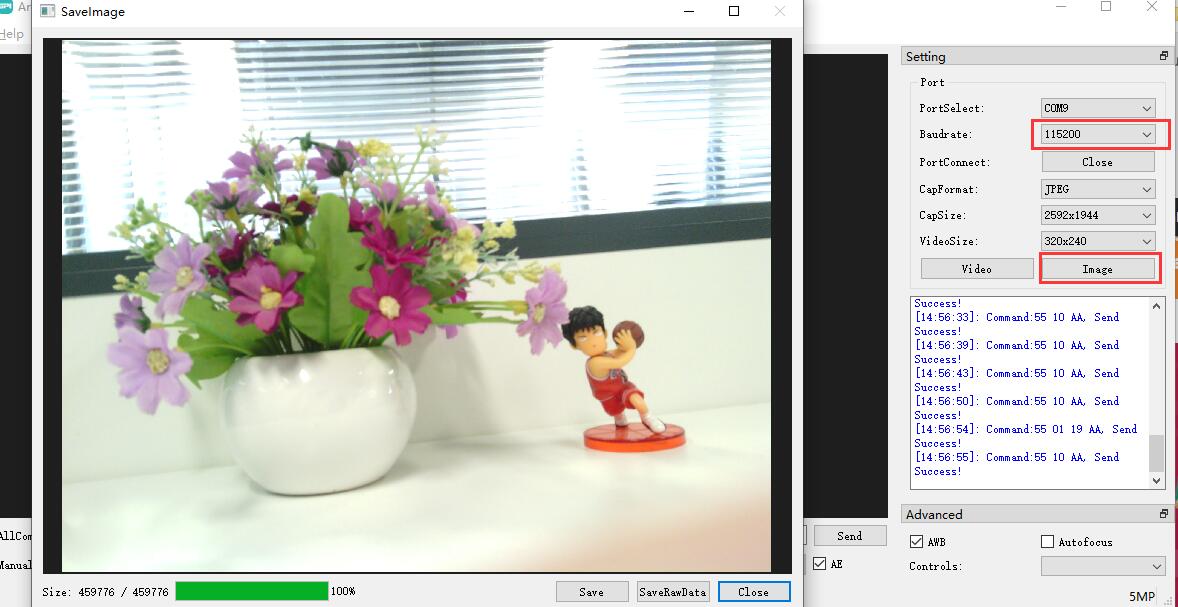

Effect demonstration
![../../_images/resultLowPowerMode.jpg](../../_images/resultLowPowerMode.jpg)
