Arduino Portenta C33
Note
This demo is based on a 5MP camera

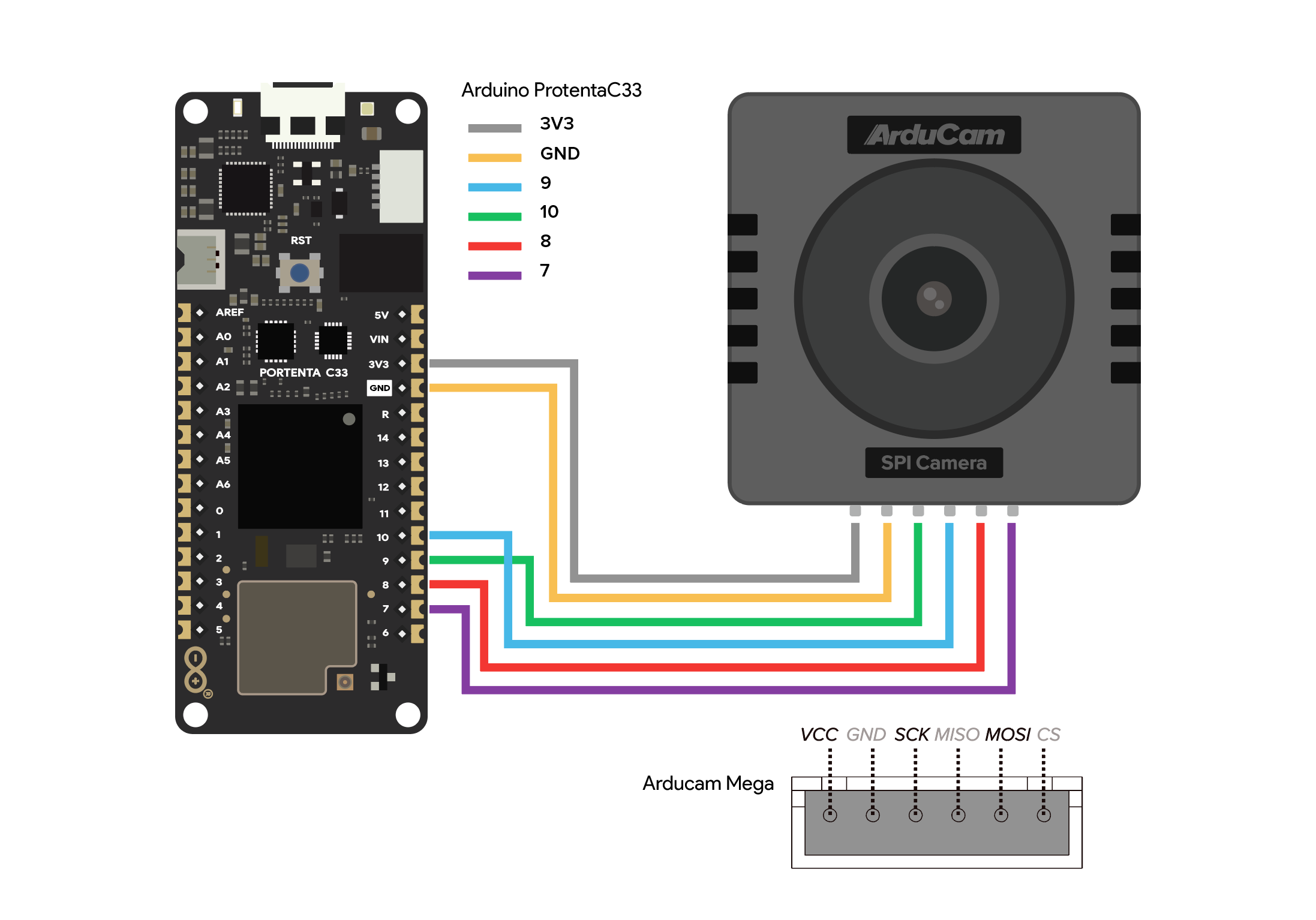

Hardware connection
![../../_images/hardwareconnection.png](../../_images/hardwareconnection.png)
Camera pin |
Development board pins |
---|---|
VCC |
3.3V |
GND |
GND |
SCK |
9 |
MISO |
10 |
MOSI |
8 |
CS |
7 |
full_featured

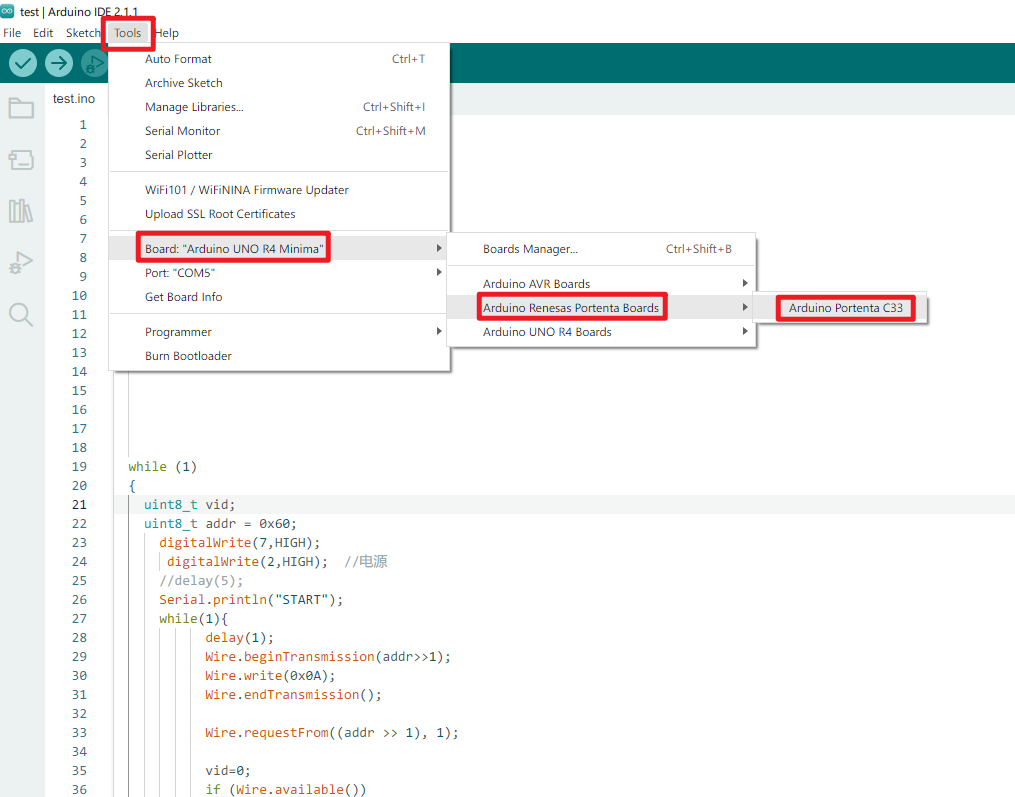

Select platform
![../../_images/selectPlatform.png](../../_images/selectPlatform.png)

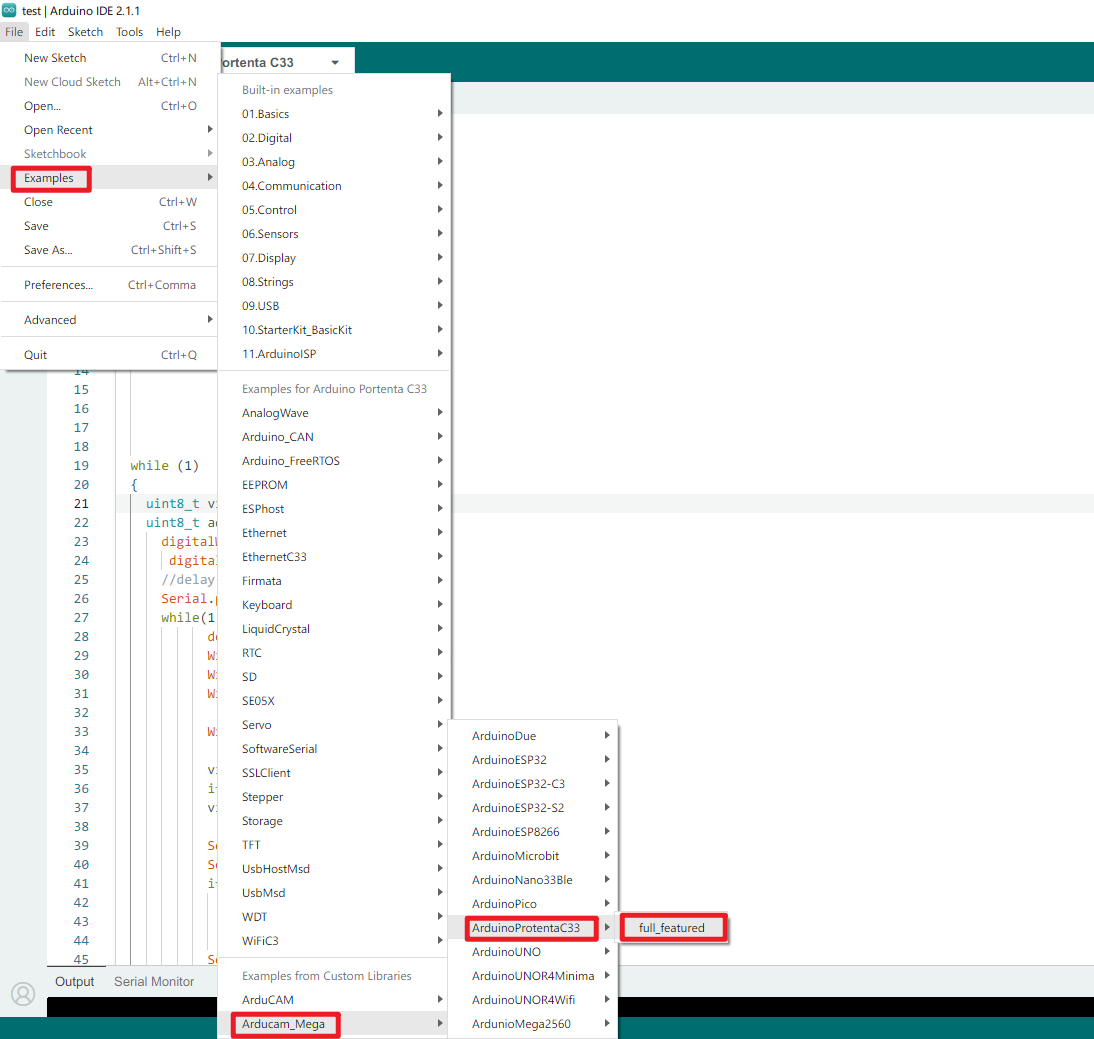

Select example
![../../_images/selectExample.png](../../_images/selectExample.png)

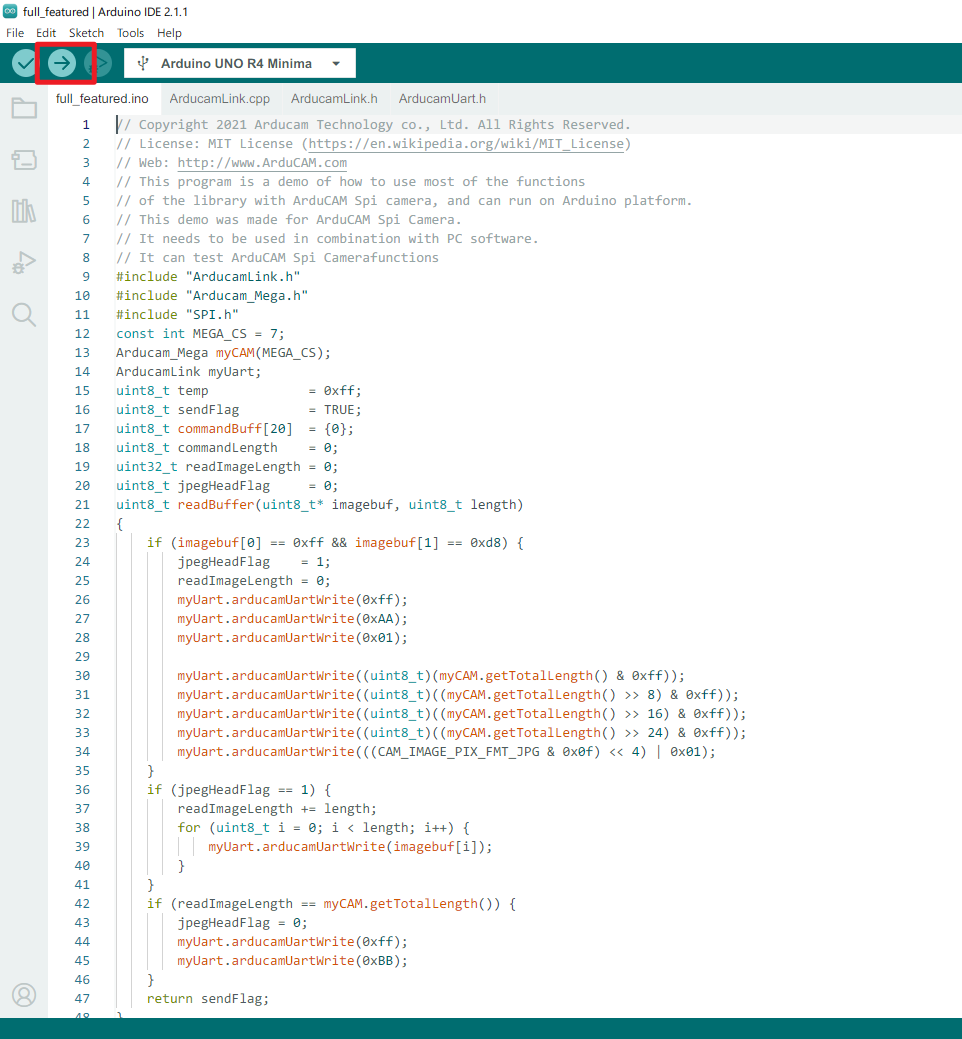

Download program
![../../_images/download.png](../../_images/download.png)

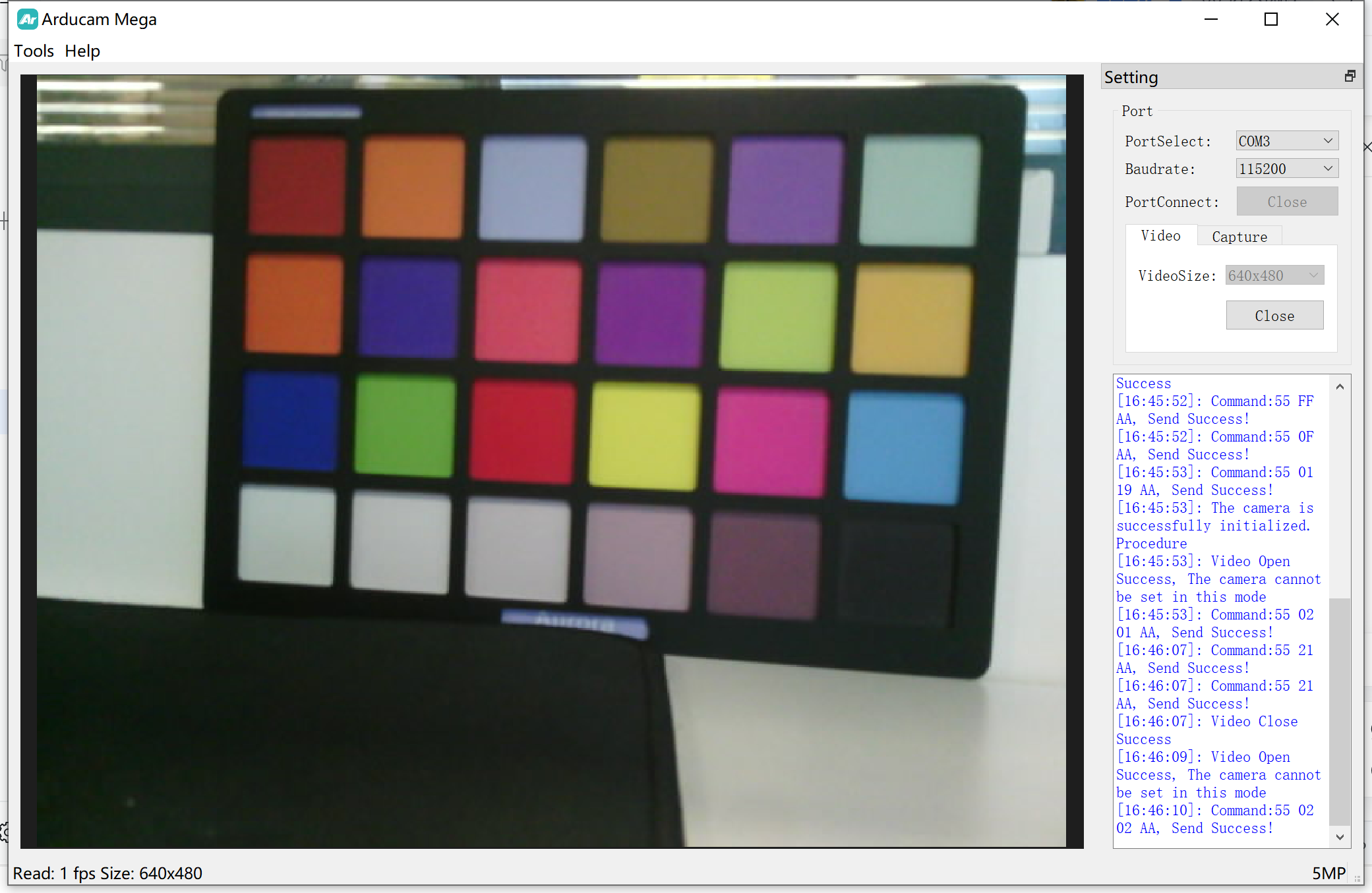

Effect demonstration
![../../_images/demonstration.png](../../_images/demonstration.png)
