ESP32C3

Note

This demo is based on a 5MP camera

Hardware connection

Camera pin	Development board pins
VCC	3V3
GND	GND
SCK	4
MISO	5
MOSI	6
CS	1

full_featured

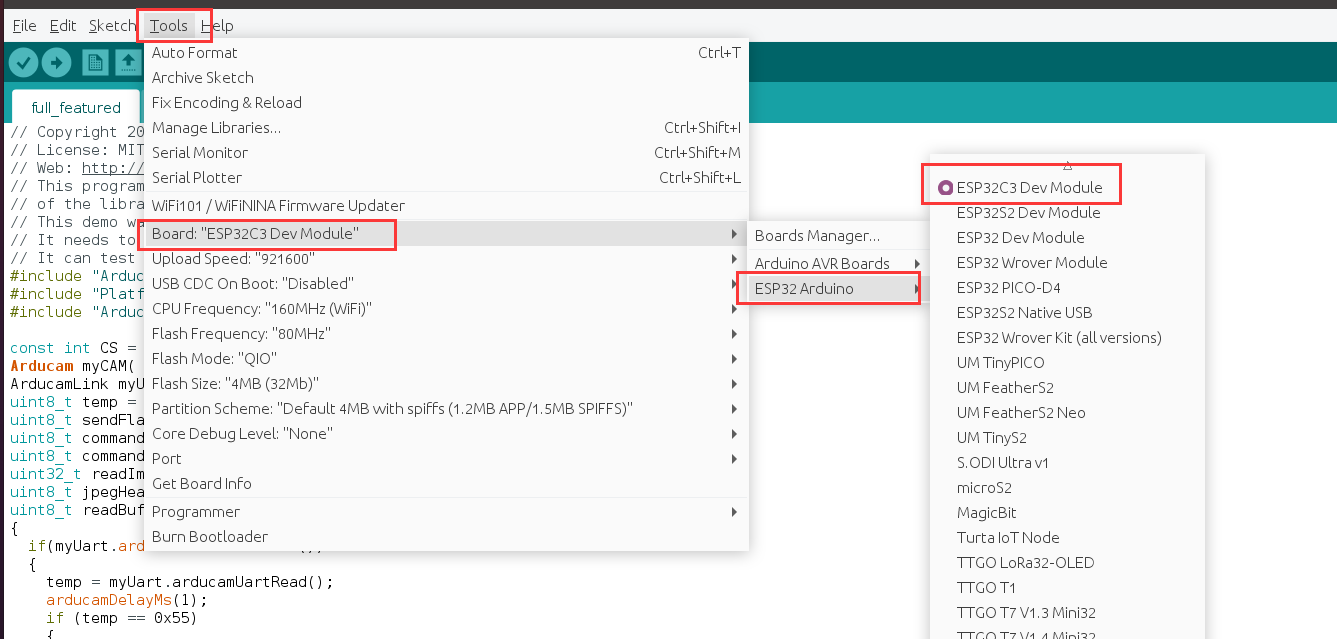

Select platform

../../_images/selectPlatform3.png

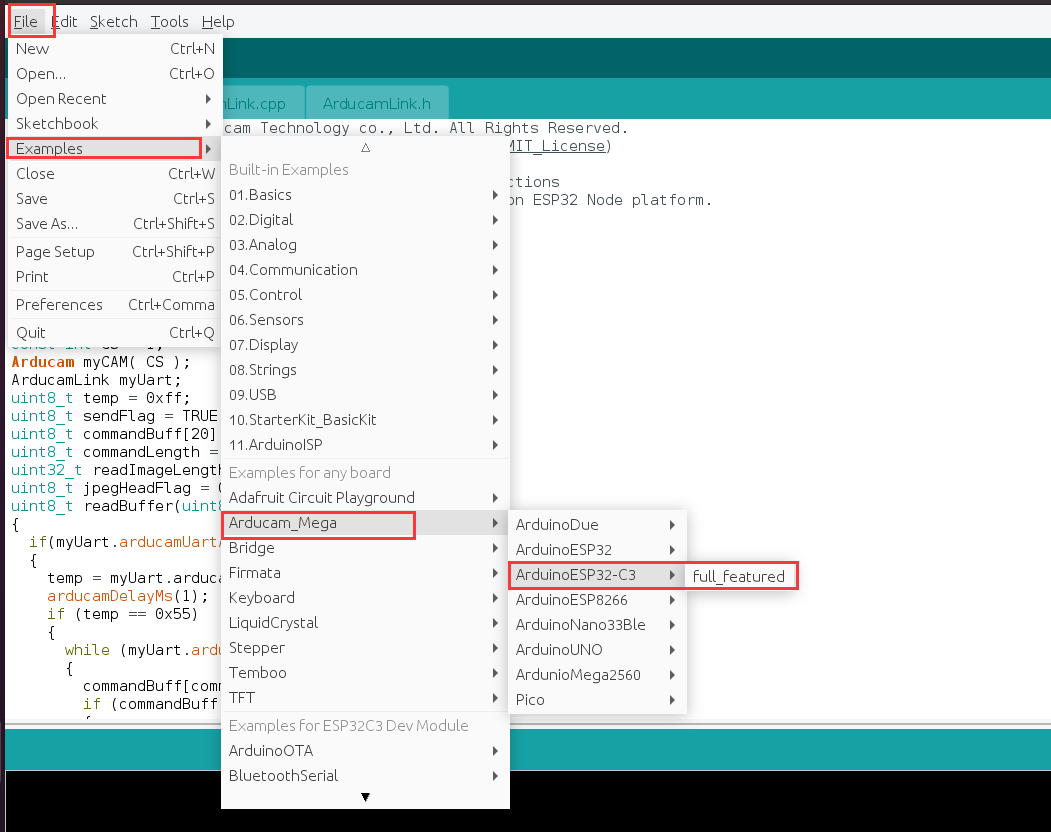

Select example

../../_images/selectExample3.png

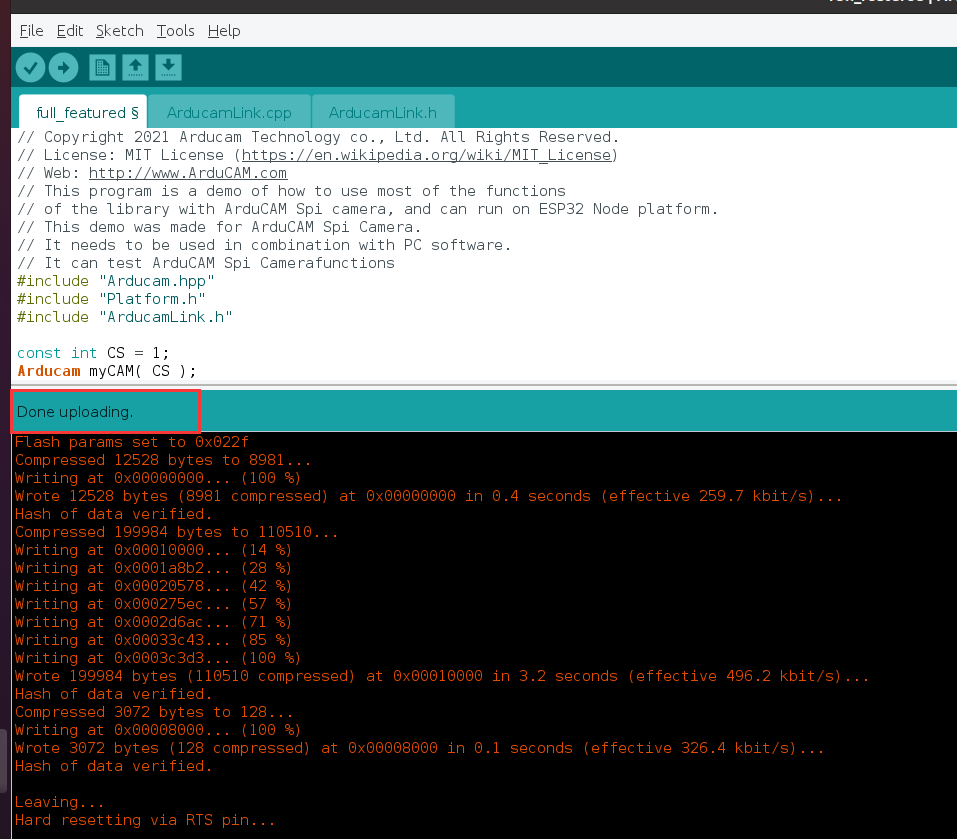

Download program

../../_images/download3.png

Effect demonstration

../../_images/image.bmp
