STM32F103C8T6
Note
This demo is based on a 5MP camera
Hardware connection
Camera pin |
Development board pins |
|---|---|
VCC |
3.3 |
GND |
GND |
SCK |
PA5 |
MISO |
PA6 |
MOSI |
PA7 |
CS |
PA4 |
Serial port module |
Development board pins |
|---|---|
GND |
GND |
RXD |
PA9 |
TXD |
PA10 |
full_featured

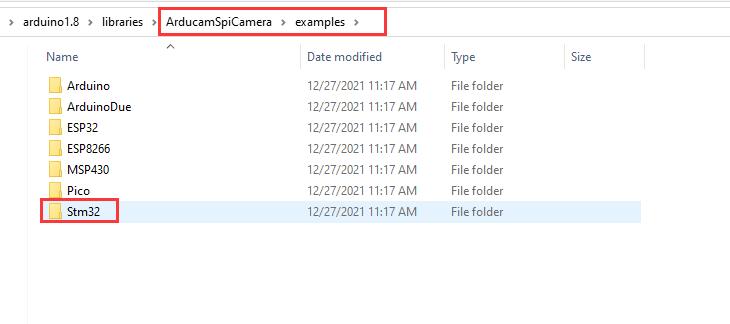

Select platform
Compile the program

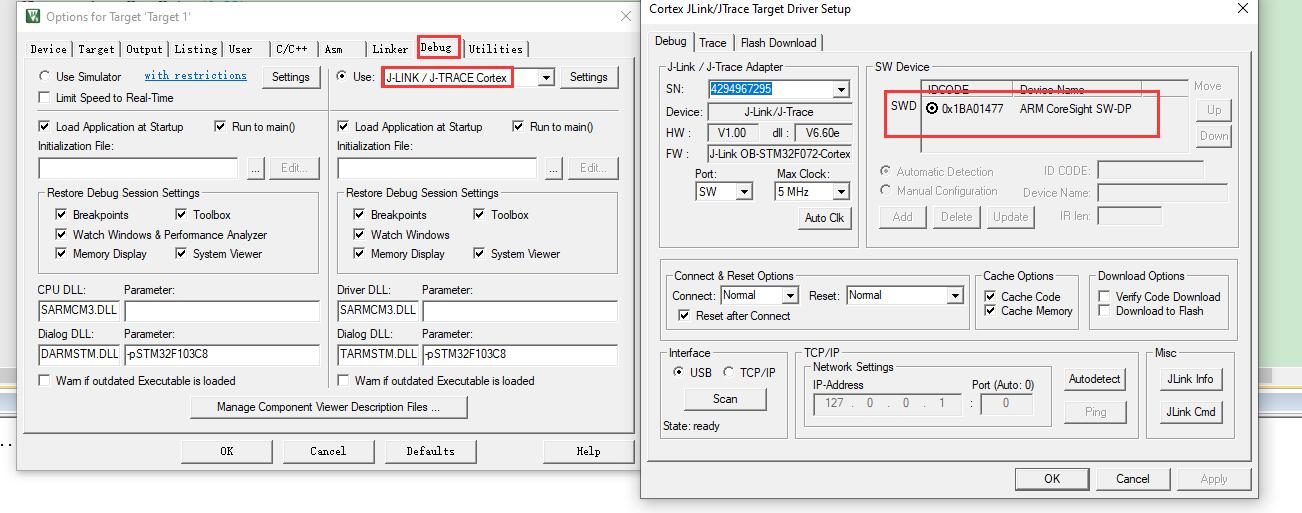

Configuration downloader
Download program
Effect demonstration
