Arduino Mega or Mega 2560
Note
This demo is based on a 5MP camera
Hardware connection
Camera pin |
Development board pins |
---|---|
VCC |
5V |
GND |
GND |
SCK |
13 |
MISO |
12 |
MOSI |
11 |
CS |
7 |
full_featured
Select platform
![../../_images/selectPlatform1.bmp](../../_images/selectPlatform1.bmp)
Select example
![../../_images/selcetFullFearured.bmp](../../_images/selcetFullFearured.bmp)
Download program
![../../_images/download.bmp](../../_images/download.bmp)
Effect demonstration
![../../_images/image.bmp](../../_images/image.bmp)
capture2SD
Select example
![../../_images/selectCapture2SD1.bmp](../../_images/selectCapture2SD1.bmp)
Download program
![../../_images/capture2SDDownload.bmp](../../_images/capture2SDDownload.bmp)
Serial tool display information
![../../_images/capture2SDUartResult.jpg](../../_images/capture2SDUartResult.jpg)

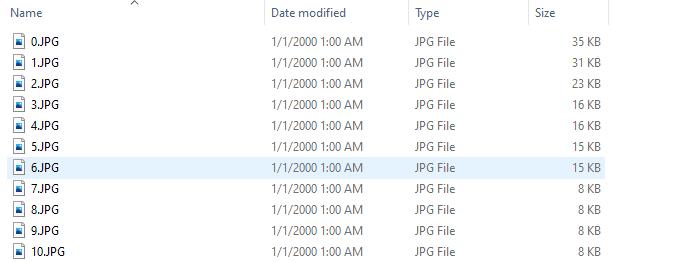

SD card content is as follows
![../../_images/capture2SDResult.jpg](../../_images/capture2SDResult.jpg)
lowPowerMode
Select example
![../../_images/selectLowPowerMode1.bmp](../../_images/selectLowPowerMode1.bmp)
Download program
![../../_images/download1.bmp](../../_images/download1.bmp)
Effect demonstration
![../../_images/lowPowerDown.bmp](../../_images/lowPowerDown.bmp)
