ESP32 Node
Note
This demo is based on a 5MP camera
Hardware connection
Camera pin |
Development board pins |
---|---|
VCC |
3V3 |
GND |
GND |
SCK |
P18 |
MISO |
P19 |
MOSI |
P23 |
CS |
P17 |
full_featured
Select platform
![../../_images/selectPlatform5.bmp](../../_images/selectPlatform5.bmp)
Select example
![../../_images/selectExample3.bmp](../../_images/selectExample3.bmp)

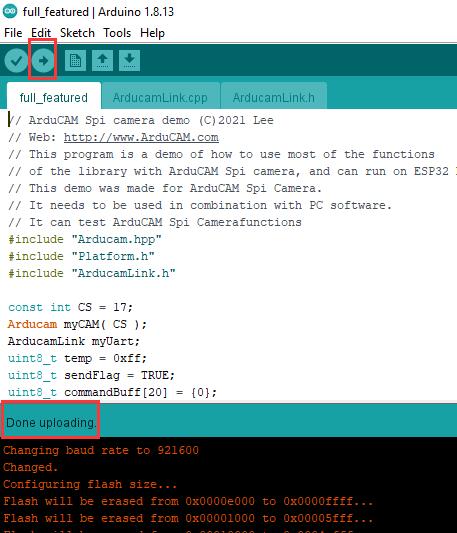

Download program
![../../_images/download.jpg](../../_images/download.jpg)
Effect demonstration
![../../_images/image.bmp](../../_images/image.bmp)
