Micro bit
Note
This demo is based on a 5MP camera
Hardware connection
Camera pin |
Development board pins |
---|---|
VCC |
3V |
GND |
GND |
SCK |
13 |
MISO |
14 |
MOSI |
15 |
CS |
12 |
full_featured
Select platform
![../../_images/selectPlatform2.bmp](../../_images/selectPlatform2.bmp)
Select example
![../../_images/selectExample.bmp](../../_images/selectExample.bmp)
Download program
![../../_images/download2.bmp](../../_images/download2.bmp)

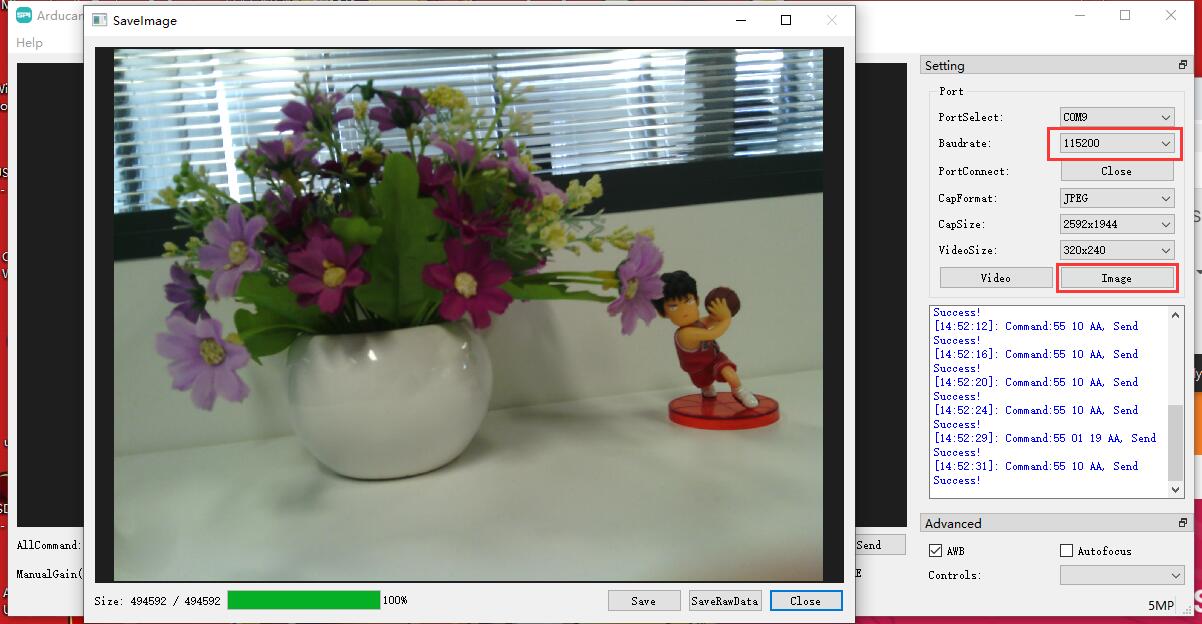

Effect demonstration
![../../_images/PcSoftware1.jpg](../../_images/PcSoftware1.jpg)
Note
The default is the maximum resolution, and the image pixel format is JPEG
