MSP430

Note

This demo is based on a 5MP camera

Hardware connection

Camera pin	Development board pins
VCC	VCC
GND	GND
SCK	P1.5
MISO	P1.6
MOSI	P1.7
CS	P2.0

Serial port module	Development board pins
GND	GND
RXD	P1.2
TXD	P1.1

full_featured

Select platform

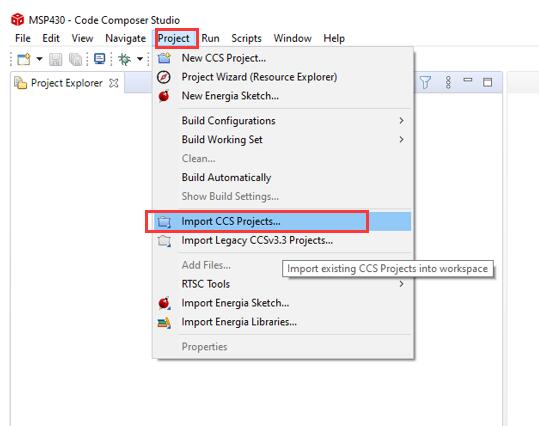

../../_images/selectPlatform1.jpg

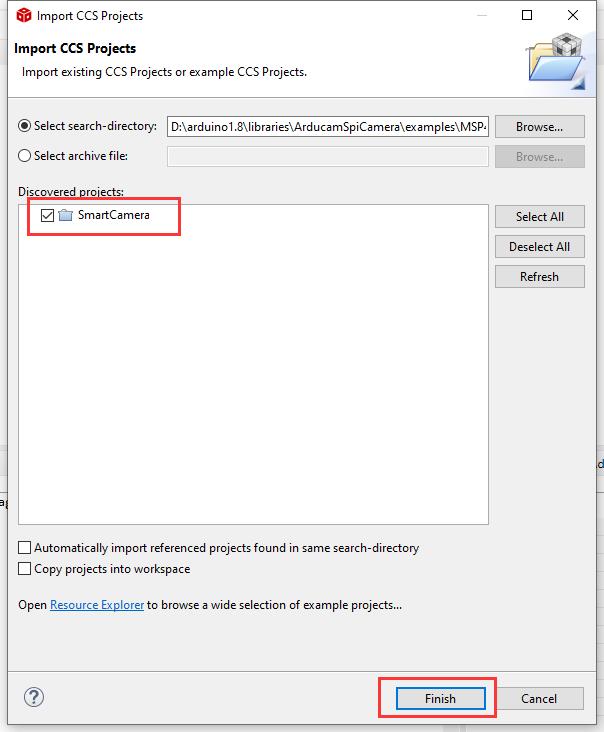

../../_images/selectPlatform2.jpg

../../_images/selectPlatform3.jpg

Compile the program

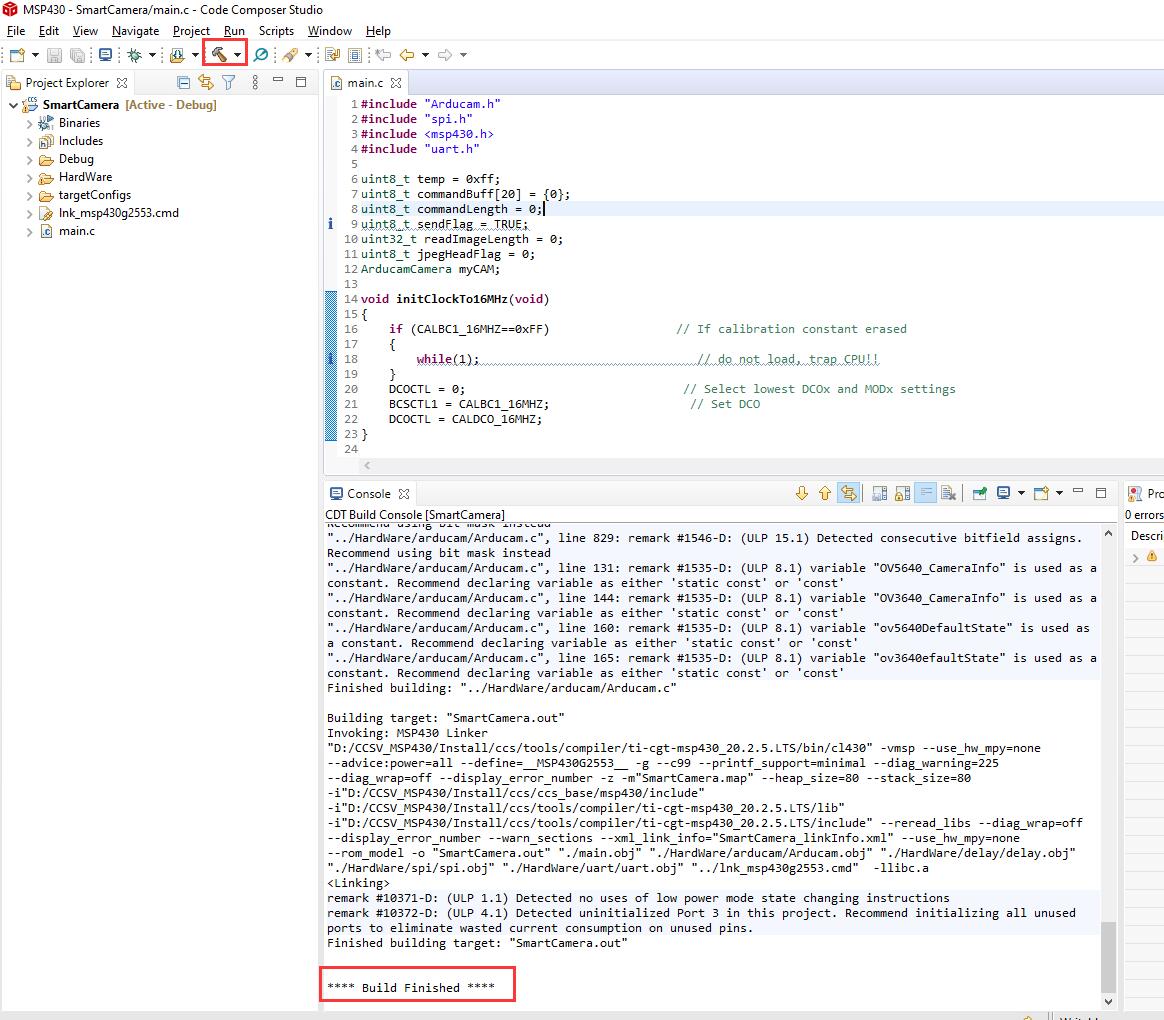

../../_images/build.jpg

Download program

../../_images/download2.jpg

Effect demonstration

../../_images/image.bmp
