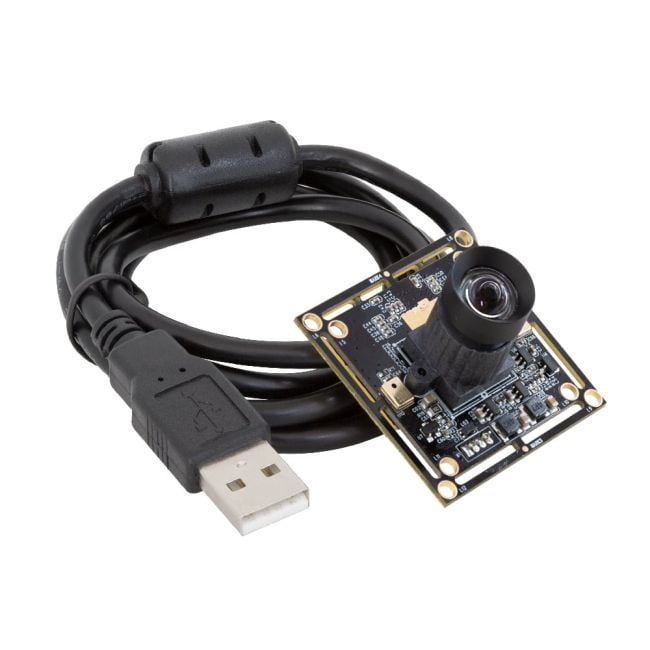

[Discontinued] 1080P Low Light Low Distortion USB Camera Module with Microphone, 2MP IMX323 Mini Webcam
SKU
UB0212
Discontinued, check alternative item B0468.
- HD Resolution and Low Light: This camera adopts the SONY 2MP IMX323 Color COMS sensor, can capture the minimum illumination 0.01 [email protected]
- Low Distortion: This camera module has 68°(H) Low-Distortion (<3%) M12 Lens, which minimizes the imaging distortion and provides a wilder Field of View (FoV) than the most stock lens
- Capture Video with Audio: H.264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 480; Audio, dual microphones
- Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: this tiny 38mmx38mm (compatible with 34mmx34mm, 28x28mm) camera board can be installed in the most hidden and narrow position for a home video surveillance system, day&night low light vision camera system, dashcam or other machine vision application.
$39.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP, and USB cameras since 2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique.
Arducam UB0212 is a new member of Arducam's USB camera family. It's a 2MP, based on the 1/2.9" Sony IMX323 image sensor, UVC-compliant USB 2.0 camera.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
This SONY 2MP IMX323 color CMOS sensor produces the camera capture the minimum illumination 0.01Lux, which gives you clearer visual joy for low light and night vision.
Applications:
- Video conference
- Home video surveillance system
- Dashcam
- Monitoring 3D printer
- Baby Camera
- Robot and machine vision
- ......
Features & Specs
Camera
- Sensor: 1/2.9” IMX323
- Resolution: 2MP 1920 x 1080
- Data Format: H.264/MJPG/YUY2
- Frame Rate: H.264 30fps@1080p; MJPG 30fps@1080p; YUY2 30fps@640 x 480
Lens
- Field of View (FOV)：68°(H)
- Lens Mount: M12
- IR Sensitivity: Integral IR filter, visible light only
- Focusing Range: 3.3ft (1M) to infinity
Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: Single microphones
- System Compatibility: Windows, Linux, Mac, and Android with UVC
Power
- Power Supply: USB powered 5V
- Working Current: MAX 300mA
Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C).
- Dimension: 38mmx38mm (compatible with 34mmx34mm, 28x28mm)
- Cable Length: 3.3ft (1M)
Lens option
| SKU | LN001 | LN065 | LN002 | LN003 | LN011 | LN012 | LN013 | LN005 | LN055 | LN007 |
| Model No: | M2516ZH01 | M2512ZH03 | M2508ZH02 | M2506ZH04 | M2504ZH05S | M25360H06S | M27280M07S | M27210H08 | M27195H15 | M25170H12 |
| Optical Format | 1/2.5'' | 1/2.5'' | 1/2.5'' | 1/2.5'' | 1/2.5'' | 1/2.5'' | 1/2.7'' | 1/2.7'' | 1/2.7'' | 1/2.5'' |
| EFL(mm) | 16 | 12 | 8 | 6 | 4 | 3.6 | 2.8 | 2.1 | 1.95 | 1.7 |
| BFL(mm) | 7.1 | 6.5 | 8.1 | 7.3 | 3.24 | 2.75 | 2.6 | 6.3 | 3.8 | 4.7 |
| Construction | 6G+IR | 6G+IR | 6G+IR | 6G+IR | 2G2P+IR | 2G2P+IR | 2G2P+IR | 6G+IR | 6G+IR | 6G+IR |
| F/NO | 2.0 | 2.0 | 2.0 | 2.0 | 2.8 | 3.0 | 2.8 | 2.0 | 2.0 | 2.0 |
| FOV (D/H/V) on 1/2.7‘’ Cam | 25/22/12 | 31/27/15 | 48/42/25 | 64/57/34 | 80/72/45 | 90/82/52 | 103/95/63 | 136/130/101 | 158/155/136 | 180/180/180 |
| FOV (D/H/V) on 1/2.8‘’ Cam | 23/20/11 | 29/25/14 | 45/40/23 | 62/55/33 | 78/70/43 | 88/80/50 | 98/90/59 | 131/125/94 | 154/150/129 | 180/180/180 |
| FOV (D/H/V) on 1/2.9‘’ Cam | 20/18/10 | 26/23/13 | 43/38/22 | 60/53/32 | 76/68/42 | 86/78/49 | 93/85/55 | 127/120/89 | 149/145/121 | 180/180/180 |
| IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter |
| MOD | 0.3m | 0.3m | 0.3m | 0.3m | 0.3m | 0.2m | 0.3m | 0.3m | 0.2m | 0.2m |
| Size(mm) | 14 x 16.2 | 14 x 16.7 | 14 x 16.9 | 14 x 17.4 | 14 x 18.7 | 14 x 16.3 | 14 x 15.6 | 14 x 15.2 | 17.5 x 19.9 | 20 x 18.7 |
NOTE: The M12 Lens kit for the USB Camera module, please check LK005, 10 lenses are included.
NOTE: For the sample order, please order the lens you need to replace separately and Contact us in advance for customization if you would like to replace the lenses on the Camera board.
Package Including
- 1 × 2MP IMX323 USB 2.0 camera board
- 1 × 3.3ft (1M) USB 2.0 cable
Documentation
User guide.pdf |
Datasheet.pdf |
