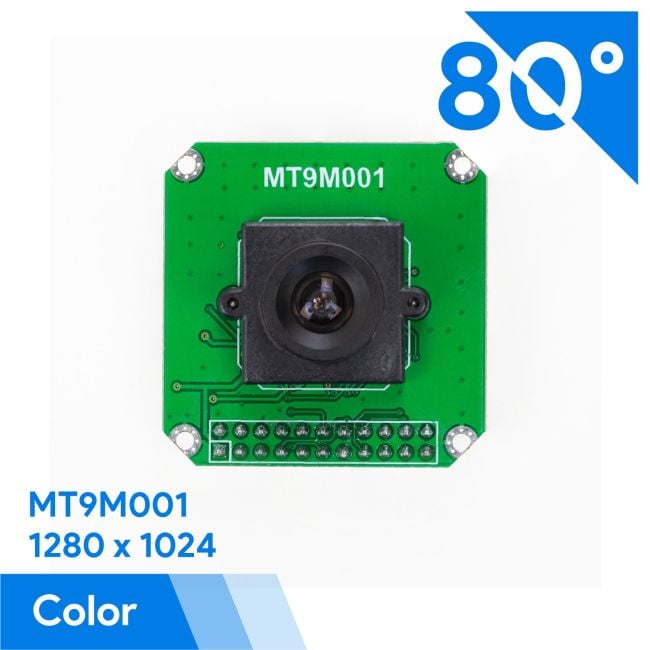

[Discontinued] Arducam 1.3MP MT9M001 Color HD CMOS Camera Module with M12 Mount 6mm Lens
SKU
B0160
- 1.3MP MT9M001 Color M12 Mount.
- USB 3.0 quick development and evaluation board for sensors like MT9M001.
- Extreme High sensitivity for low-light operation
$39.99
Overview
Specifications
Wiki
Documents
Video
Customization
Features
- Color image sensor MT9M001
- Maxim resolution 1280 x 1024 SXGA at 15 fps
- Shutter type: Electronic rolling shutter (ERS)
- Optical size 1/2"
- ADC resolution 10-bit
- Supports image sizes: SXGA, VGA, QVGA, CIF, QCIF, etc
- Extreme High sensitivity for low-light operation
- Low operating voltage for embedded portable apps
- Standard I2C two wire interface
- Digital Video Port interface
- Easy intergrate with STM32,FPGA,DSP,Arduino etc.
Applications
- Digital video cameras
- Digital still cameras
- Industrial camera
- Medical camera
- Microscopy camera
- UAV camera
Package Including
- 1pcs MT9M001 camera module with M12 mount 6mm lens
- NOTE: This camera module can be used together with Arducam USB shield for Windows, Linux and Raspberry Pi.
Documentation
Camera Breakout Board Introduction
Arducam now offers the camera breakout boards for customers who want to build prototypes or put the boards into their products. Users don’t need to handle with the tiny and fine pin pitch camera module connector and high speed signal connectivity, just take it for granted. The camera resolution is ranging from 0.3MP to 16MP […]
Datasheet.pdf
User guide.pdf
Application note .pdf |
GitHub
Blog
Arducam USB3.0 Camera Shield
Introduction Arducam USB3 camera shield is the latest USB3.0 camera shields, it offers the improved performance and enhanced functions than the previous USB2.0 camera shield. It not only supports high resolution and high frame rate image sensors, but also supports stereoscopy camera and IRCUT control feature. With the given camera configuration files, user can switch […]
How to purchase
You can purchase this item from Arducam distributors
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
