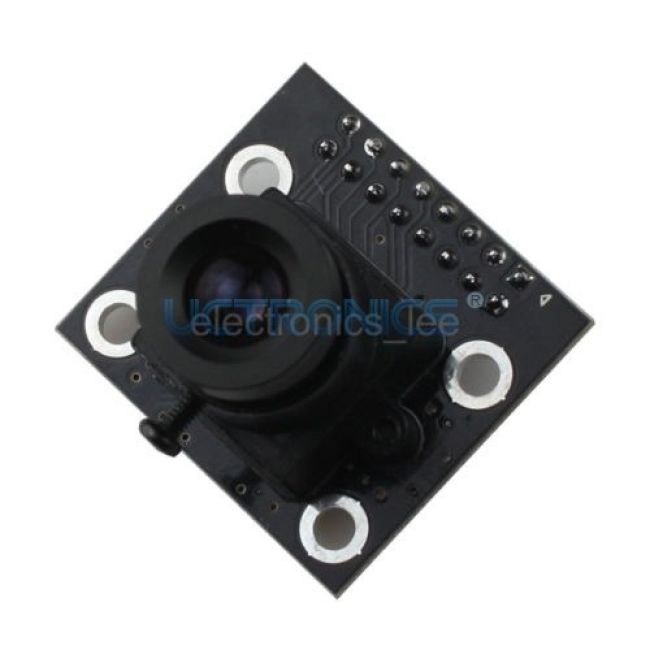

[Discontinued] Arducam 0.3MP MT9V111 1/4'' 640*480 Camera
SKU
B0059
0.3MP MT9V111 1/4” 640*480 Camera
$7.35
Overview
Specifications
Wiki
Documents
Video
Customization
Features
- Onboard LDO regulators for 2.8V
- Single 3.3V power input
- 2.54mm (0.1 inch) standard pinout
- SOC Camera Module
- Active array size: 640 x 480
- Optical Format 1/4 inch (4:3)
- Fast Rate: 30fps VGA, 60fps CIF, 90fps QVGA at 27MHz Clock
- Responsivity: 1.9V/lux-sec (550nm)
- Dynamic Range: 60dB
- ITU_R BT.656 (YCbCr), YUV, 565RGB, 555RGB, and 444RGB output data formats
- External 1/4 inch high quality 6mm/F2.0 M12x0.5 mount
Package Including
- MT9V111 640*480 0.3 Mega pixels Camera Module Compatible w/ OV7670
Documentation
Camera Breakout Board Introduction
Arducam now offers the camera breakout boards for customers who want to build prototypes or put the boards into their products. Users don’t need to handle with the tiny and fine pin pitch camera module connector and high speed signal connectivity, just take it for granted. The camera resolution is ranging from 0.3MP to 16MP […]
Instruction Manual.pdf
Datasheet.pdf |
Blog
ArduCAM USB Camera Shield Released
The ArduCAM USB camera shield is a universal camera control board designed for both PCs and embedded systems like the Raspberry Pi, TI Beaglebone, and similar products. It supports most parallel interface image sensors ranging from 0.3MP to 14MP, including both global and rolling shutter sensors. The camera is packaged with the software you need to put it to […]
How to purchase
You can purchase this item fromArducam distributors
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
