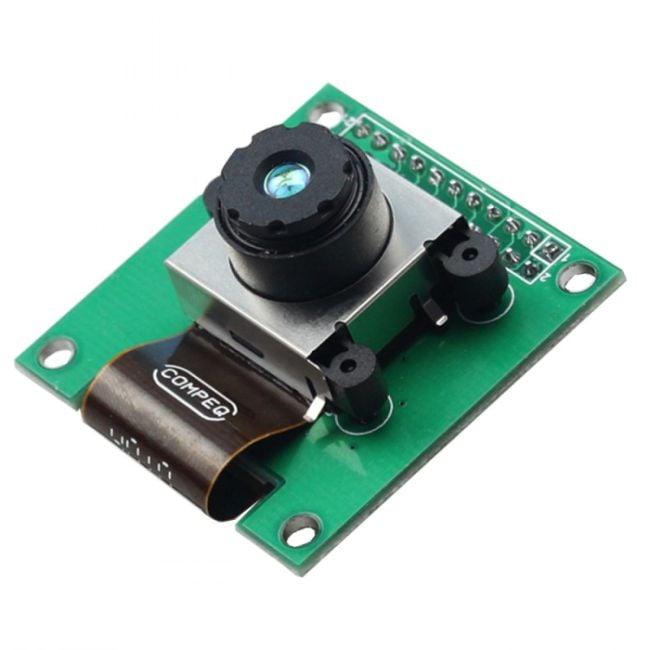

[Discontinued] Arducam 1.3MP MT9M001 Infrared HD CMOS Camera Module with Adapter Board
SKU
B0063
- 1.3MP MT9M001 Infrared Camera Module.
- Larger pixel size and excellent low light performance
$19.99
Overview
Specifications
Wiki
Documents
Video
Customization
Features
- Microsoft xbox360 Kinect original monochrome infrared camera module
- Maxim resolution 1280 x 1024 SXGA at 30 fps
- Maxim frame rate 30fps
- Shutter type: Electronic rolling shutter (ERS)
- Optical size 1/2"
- ADC resolution 10-bit
- Supports image sizes: SXGA, VGA, QVGA, CIF, QCIF, etc
- Extreme High sensitivity for low-light operation
- Low operating voltage for embedded portable apps
- Standard I2C two-wire interface
- Digital Video Port interface
- 34 pin golden finger FPC cable connector
- Easy integrate with STM32,FPGA,DSP,Arduino etc.
Applications
- Digital still cameras
- Digital video cameras
- PC cameras
- Can be used in Arduino, Maple, ChipKit, STM32, ARM, DSP, FPGA platforms
Package Including
- 1pcs MT9M001 1.3Mp HD CMOS Infrared Camera Module with Adapter board
Documentation
Camera Breakout Board Introduction
Arducam now offers the camera breakout boards for customers who want to build prototypes or put the boards into their products. Users don’t need to handle with the tiny and fine pin pitch camera module connector and high speed signal connectivity, just take it for granted. The camera resolution is ranging from 0.3MP to 16MP […]
Datasheet.pdf
User guide.pdf
Application note.pdf |
