[Discontinued] Arducam 5MP OV5647 Camera Module with IR Cut and LED for Jetson Nano (Jetvariety RAW 5)
SKU
B0215
Discontinued, Check Jetson Cameras
Check Raspberry Pi version SKU: B003503
$46.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview

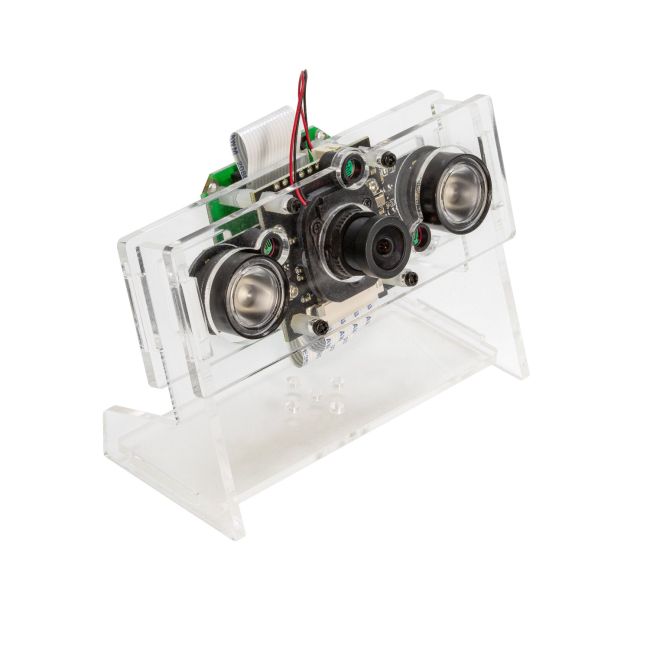

As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano. Arducam released this OV5647 camera module for Jetson Nano. It is designed for both daylight and night vision photography with build-in IR cut filter and two infrared LED illuminator boards. The IR cut filter and the infrared LEDs are automatically ON/OFF according to the light condition and it can be widely used in wild life photography, agriculture NDVI applications and etc.
⚠️ KERNEL CAMERA DRIVER USED
This camera relies on kernel drivers to work – one kernel version, one camera driver. Up or downgrading your OS leads to a kernel bump, and you may need to re-install a matching driver.
Key Specifications:
- CMOS size: 1/4inch
- Resolution: 5MP 2592x1944
- Pixel Size: 1.4 x 1.4 um
- Lens: f=2.25mm
- Field of View: Horizontal 85 degree
- Fixed Focus: 30 cm to infinity
- Max frame rate: 30fps
- Video: 1080p at 30 fps, up to 90 fps Video at VGA
- Provides 3.3V power output for infrared LEDs
- Build-in Motorized IR-CUT filter
- Two infrared illuminate LEDs with heat sinks
- Dimension: 36mm X 36mm
- 4 screw mounting holes
Driver Features
- Support RAW8/10 bayer format
- Support Standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
- Support Single Line Driver Installation Command
- Support OpenCV Friendly and Provides Source Code Demonstration
Applications
- Smart robots
- Wide life Photograph
- Agriculture NDVI
Documentation
Jetvariety – MIPI Camera Modules for Jetson Nano/Xavier NX
Jetson Nano’s MIPI interface and MIPI connectors The Jetson Nano Developer Kit consists of two parts: The Computer on a Module (CoM), and the carrier board. The CoM supports high-speed MIPI interface, which is now a must-have for embedded vision applications. The carrier board of the Jetson Nano developer kit exposes the MIPI interface in […]
Blog
Project Jetvariety: How Arducam Makes it Possible to Use Any Camera Module on the Jetson Nano with One Kernel Driver for All
Introducing Project Jetvariety – Increase the Jetson Nano Camera Variety Today we are proud to introduce the Project Jetvariety (short for Jetson variety), which aims to quickly increase the variety of Jetson Nano cameras with our proprietary general-purpose camera solution. The Jetson Nano and Xavier NX only have official driver support of the Raspberry Pi […]
Video
How to purchase
You can purchase this item from Arducam distributors
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
