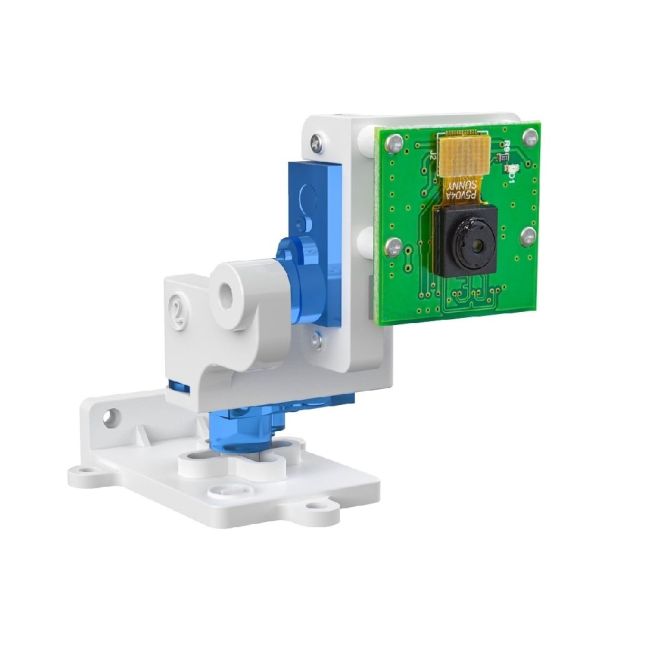

[Discontinued] Arducam Pan Tilt Camera for Raspberry Pi, 2 DOF Platform with 5MP 1080P Camera Board with PTZ Control Board
SKU
B0033PT
- Complete accessories: A 5MP camera module, two ribbon cable (for all Pi models), a pan tilt bracket kit (with 2 servo motors), a PTZ controller board (with jumper wires)
- 5MP Camera: Based on OV5647 Sensor. Resolution: 2592 (H) x 1944 (V), Frame Rates: 30fps@1080P
- Pan Tilt Kit – Free panning and tilting in a smaller PT bracket
- Specifically designed for a broader view on Raspberry Pi camera projects. PWM controller board is included
- Mini Digital servos: Two GH-S37D digital servos for a faster speed, higher torque and better holding capability (than analog servos.)
- Wide Applications: Home security and surveillance, robotics, sun tracker and so on.
$24.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
B0033PT is a new member of PTZ family, which can move your camera in two dimensions with 180 degrees horizontal and 145 degrees vertical movements. The PTZ camera controller board outputs the PWM signals to drive the servo motors directly. Therefore, B0033PT can be used to monitor places that should be covered by multiple ones commonly in the surveillance system.
Applications
- IoT cameras
- Robot cameras
- Sun tracker
- Wildlife cameras
- Cellular phones,PDAs,Toys
- Other security and surveillance projects, etc.
Specifications
| Sensor | Omnivision OV5647 sensor |
| Sensor size | 1/4” (OV5647) |
| Resolution | 5MP 2592×1944 |
| Video | 1080p 30 fps, 720p 60fps, 480p 90fps |
| FOV | 54°(H), 41°(V) |
| Focus Type | Front group: focus Back group: Zoom |
| Torque | 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V |
| IR Sensitivity | Integral IR filter, visible light only |
| Camera Board Size | 25mm x 24mm |
| Operating Speed | 0.13sec/60° at 3.6V, 0.09sec/60° at 4.8V |
| Operating Voltage | 3.6v/5v |
| Dead Band | 3 usec |
| Digital Servo Size | 20mm x 8.75mm x 22mm |
| Operating Current | ＜350mA |
| Focus Range(Near => Far) | 3009 steps 0.0047mm/step |
| PWM Driver | PCA9685 |
| PWM resolution | 12-bit |
| Ambient light sensor | TSL2581FN |
| Ambient light resolution | 16-bit |
| Communication interface | I2C |
| Control Board Size | 25mm x 61mm |
Package Including
- 1 x 5MP camera for Raspberry Pi with a 15cm 15 pin camera cable for Raspberry Pi
- 1 x 15 pin to 22 pin camera cable for Pi Zero&W
- 2 x Digital servos
- 1 set epoxy bracket pieces with screws
- 1 x PWM control board
- 4 x Female to female jumper wires (The wire has no fixed color)
- 2 x Male to female jumper wires (The wire has no fixed color)
Note
- Raspberry pi board is not included in the package
