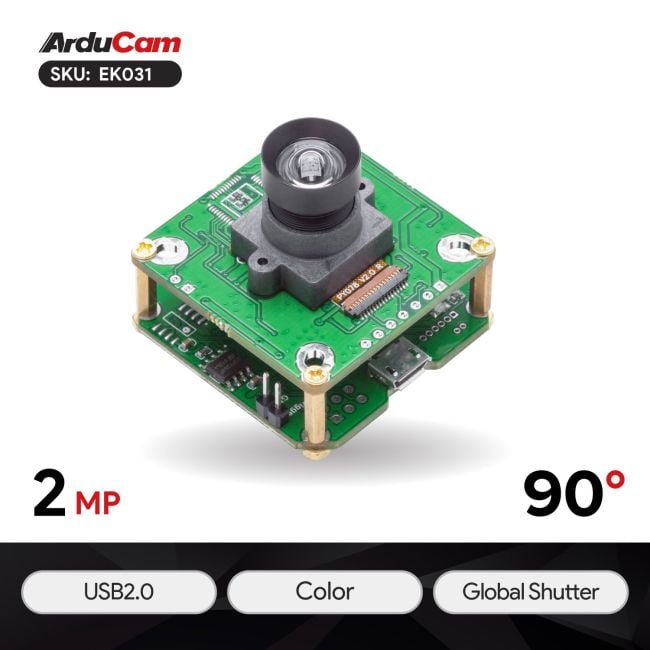

Arducam 2.3MP AR0234 Color Global Shutter Camera USB2.0 Evaluation Kit
SKU
EK031
- Highly Integrated: Support MIPI interface without any MIPI adapter board
- Color Global Shutter: 2.3MP AR0234 Color Global shutter sensor
- General Solution: Compatible with any hardware you choose
- Developer-friendly SDK & API for easy integration
$179.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
Arducam AR0234 Color Global Shutter Camera eliminates rolling shutter artifacts to better capture fast-moving objects. This camera can be used for dynamic capture of high-speed moving objects, real-time monitoring of factory machines, etc.
The highlight of the new USB2.0 camera shield is that it supports MIPI interface sensors without any MIPI adapter board. It has an onboard 16MByte hardware frame buffer, and overcomes the bandwidth and dropping frames issue when using the software frame buffer scheme.
The lens on this camera is not interchangeable, if you need to replace the lens, please contact sales in advance!
Applications
- Cellular phones
- Toys
- Tablets
- Machine vision
- ARM/FPGA/DSP based platforms
- Product prototyping/development, etc.
Note
-
About External Trigger Mode: This camera module supports the development of external trigger mode function. If you have relevant requirements, please contact Arducam sales for customization.
Specifications
| Specs | |
|---|---|
| Resolution/Frame Rate* | 960x600@80fps, 1920x1200@20fps |
| Sesnor Output Format | 34us-33333us |
| Exposure Control Range | 34us-33333us |
| Gain Control Range | 2.0-11.0 Times |
| Focus Control Range | / |
| Focal Length | 3.6mm |
| Field of View(FOV) | 120°(D)x90°(H)x75°(V) |
| F.NO | 2.8 |
| Focus Type | Manual Focus |
| Power Consumption* | 5V/300mA |
| Operation Temperature | -10℃～+55℃ |
| Evaluation Kit Size | 40mm x 40mm |
| Functions | |
| Image File Format | DNG/JPEG |
| External Trigger Mode | Not Supported |
| Software ISP | Not Supported |
| Supported Programming Languages | Python/C++ |
| Supported OS | Windows x86/x86_64 |
| GUI(Graphical User Interface) | Supported |
| Optional Items | |
| Random Resolution | These addtional functions require customized serivces to get supported. Please contact [email protected] for customization services. |
| Even Higher/Lower Frame Rate | |
| More RAW Output Format Options(RAW10) | |
| Long Exposure | |
| External Trigger Mode | |
Package Including
- 1 x Arducam USB2 Camera Shield - Support MIPI Interface Sensors
- 1 x Arducam 2.3MP AR0234 Camera Module with M12 lens
- 1 x 500mm USB2.0 micro-USB Cable
- 1 x 80mm 22pin 0.5mm pitch FPC cable
Documentation
-
-
-
-
-
-
FAQ
Does it support other image formats?
- With post-processing from the software side, yes.
Can I use it with Raspberry Pi & Jetson Nano?
- Yes, but we highly recommend using our high-res Pi/Jetson camera series.
Can I use custom resolutions & frame rates?
- Yes.
Does it support H.264/H.265 encoding?
-It depends on the hardware you are using the camera kit with.
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
