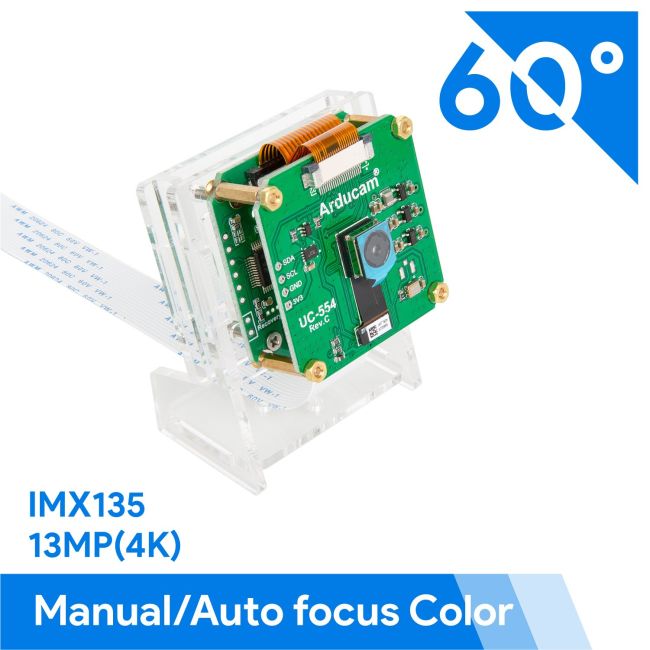

[Discontinued] Arducam 13MP IMX135 Camera Module for Jetson Nano (Jetvariety RAW 13)
SKU
B0213
$59.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano. Arducam just released this high-quality camera module for Jetson Nano. This camera is based on a 1/3 inch Sony IMX135 image sensor which adopts Exmor-R™ technology to achieve high-speed image capturing with high sensitivity and low noise performance. “RGBW coding” color filter is employed and RGB primary color mosaic is reproduced on-chip. High sensitivity, low dark current, and smear-free features are achieved. It equips an electronic shutter with variable integration time.
This MIPI camera module can be used on other ARM, FPGA, DSP, or Nvidia TX1/TX2 hardware platform as well.
⚠️ KERNEL CAMERA DRIVER USED
This camera relies on kernel drivers to work – one kernel version, one camera driver. Up or downgrading your OS leads to a kernel bump, and you may need to re-install a matching driver.
Applications
- Cellular phones
- PDAs
- Toys
- Other battery-powered products
- ARM/FPGA/DSP based platforms
Features
- High Resolution
- Platform Support: Jetson Nano
- High sensitivity, low dark current, no smear, excellent anti-blooming characteristics
- Programmable motorized focus lens
- Support RAW8/10 bayer format
- Support standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
- Support Single Line Driver Installation Command
- Support OpenCV Friendly and Provides Source Code Demonstration
Specifications
- Sensor Type: IMX135
- Pixel Size: 1.12um x 1.12um
- Optical Size: 1/3”
- Lens Spec: Focal length: 3.85mm, F.NO: 2.0±5%, FOV: 60deg
- Color Filter Array: RGB Bayer pattern
- Frame Rate: 24fps@13 Mp full resolution, 60fps@720p, 30fps@1080p
- Interface Type: 2-Lane /4-Lane MIPI
- Output Format: RAW8/RAW10 output
- Board Size: 40x40mm
Package Including
- 1pcs Arducam IMX135 13MP Color MIPI Camera Module
- 1pcs 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
- 1pcs 80mm 22pin 0.5mm pitch FPC cable
- 1pcs Arducam Adapter Board for Jetson Nano
- Acrylic case for the camera module
Documentation
Sensor Datasheet.pdf |
Acrylic Bracket Assembly Guide.pdf |
Jetvariety – MIPI Camera Modules for Jetson Nano/Xavier NX
Jetson Nano’s MIPI interface and MIPI connectors The Jetson Nano Developer Kit consists of two parts: The Computer on a Module (CoM), and the carrier board. The CoM supports high-speed MIPI interface, which is now a must-have for embedded vision applications. The carrier board of the Jetson Nano developer kit exposes the MIPI interface in […]
