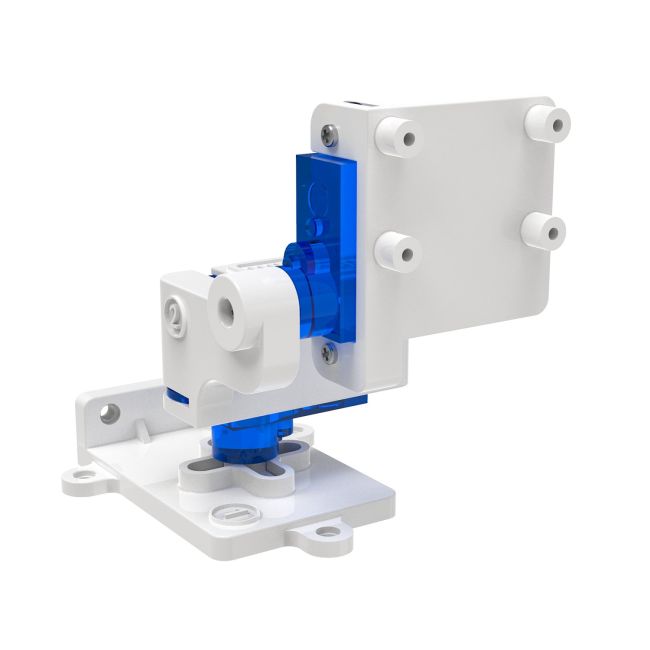

[Discontinued] Arducam Pan Tilt Platform for Raspberry Pi Camera, 2 DOF Bracket Kit with Digital Servos and PTZ Control Broad
SKU
B0227
Discontinued, check alternative item B0283.
- You’ll be Getting: A pan tilt bracket kit, 2 digital servo motors, a PTZ controller board (with jumper wires).
- Pan Tilt Kit: Free panning and tilting in a smaller PT bracket. Specifically designed for a broader view on Raspberry Pi camera projects. PWM controller board included.
- Mini Digital Servos: Two GH-S37D digital servos for a faster speed, higher torque and better holding capability (than analog servos).
- PWM Control Board: I2C controlled; Up to 16-Channel servo, 12-bit resolution for each channel; outputs the PWM signals to drive the servo motors directly.
- Applications: Home security and surveillance, robotics, sun tracker or other raspberry pi projects where you need a single camera to cover more areas.
- An upgraded version of B0227 with improved bracket quality and a mini customized control board has been released.
$16.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam B0227 is a new arrival, which can move your camera in two dimensions with 180 degrees horizontal and 145 degrees vertical movements. The PTZ camera controller board outputs the PWM signals to drive the servo motors directly. Therefore, B0227 can be used to control your camera to monitor places that should be covered by multiple ones commonly in the surveillance system.
Applications:
- IoT cameras
- Robot cameras
- Wildlife cameras
- Other security and surveillance projects
Features & Specs
Digital Servo
- Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V
- Operating Speed: 0.13sec/60° at 3.6V, 0.09sec/60° at 4.8V
- Operating Voltage: 3.6v～4.8v
- Operating Current: ＜350mA
- Dead Band: 3 usec
- Dimension: 20mm x 8.75mm x 22mm
PTZ Control Board
- PWM Driver: PCA9685
- PWM resolution: 12-bit
- Ambient light sensor: TSL2581FN
- Ambient light resolution: 16-bit
- Communication interface: I2C
- Operating voltage: 3.3V/5V
- Dimension: 25mm x 61mm
Package Including
- 1 set epoxy bracket pieces with screws
- 1 x PWM control board
- 4 x Female to female jumper wires (The wire has no fixed color)
- 2 x Male to female jumper wires (The wire has no fixed color)
Documentation
Used on Pi
8MP IMX219 Motorized Focus Camera Module
Introduction Arducam 8MP IMX219 Motorized Focus Camera Modules are designed for you to control the focus via software, so you can see closer and see where you want to see. To learn more about autofocus with Raspberry Pi camera modules, we recommend you read Raspberry Pi Camera Autofocus: The Complete Guide. Models in this Series There […]
Used on Jetson
IMX219 – Motorized Focus Camera
Introduction The autofocus camera is an advanced IMX219 camera module for Jetson Nano/Xavier NX board. It helps to focus the object in close range from 5cm~30cm, within this range the standard fixed focus camera can not get sharp focus and the image looks burry. All the focus procedure is controlled by the software without manually […]
User guide.pdf |
