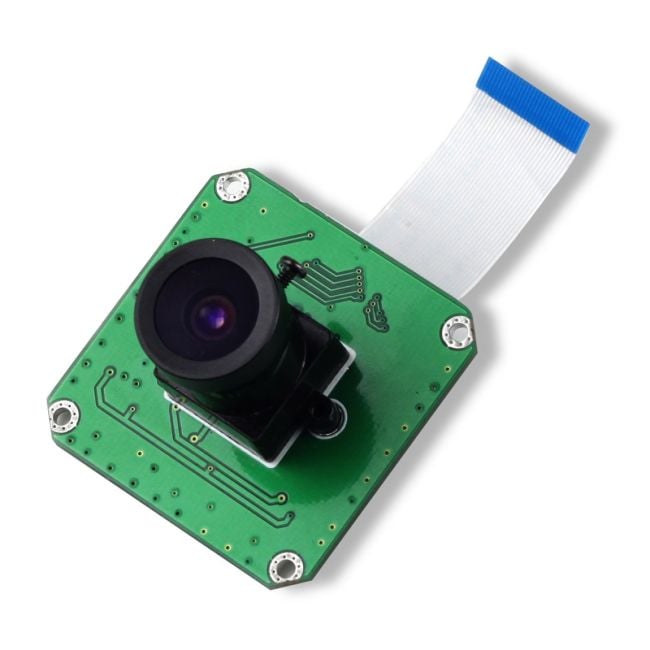

[Discontinued] Arducam 14MP MT9F002 Color 1/2.3‘’ CMOS Camera Module

The MT9F001/002 camera module features Aptina’s breakthrough low-noise CMOS imaging technology that achieves near-CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS. 1/2.3" 14MP (4608 x 3288) CMOS color rolling shutter with global reset release camera module MT9F001/002. World-Class 1.4μm Pixel Sensitivity, Produced on Aptina’s world-class 1.4μm pixel with Aptina A-Pix technology, this high-resolution, highly sensitive compact sensor is perfect for DSC/DVC designs.

Full HD Video Modes and EIS, Full HD support—1080p at 60 fps—for max video performance and 20% extra imaging area for image stabilization.
Improved Low Light Performance Equivalent level as CCD sensor to support DSC applications.

Preprocessing Features, including resampling for sub-sampled video and 2D defect correction, provide improved image quality.

Features

• 1/2.3" optical format
• RGB Bayer pattern
• 14MP 4608 x 3288 MT9F001/002 sensor
• 1.4 x 1.4 um Pixel size
• 6.3fps at full resolution
• 0.724V/lux-sec responsivity
• 65.3dB dynamic range
• single 3.3V power input
• Parallel camera interface
• Default M12 mount 4.2mm LS-18023 lens

Applications

• Digital video cameras
• Digital still cameras
• Industrial camera
• Medical camera
• Microscopy camera
• UAV camera

Package includes

• 1pcs Arducam CMOS MT9F001 1/2.3-Inch 14MP Color Camera Module

NOTE: The camera module only can be used together with the Arducam USB shield.  You could check USB shield here:
Arducam USB2.0 Shield
Arducam USB3.0 Shield

Documentation

14MP MT9F001/MT9F002

Posted: April 7, 2019

Introduction Arducam MT9F001/MT9F002 camera breakout incorporates ON Semiconductor 1/2.3−inch CMOS active−pixel digital imaging sensor MT9F001/MT9F002 with an active pixel array of 4608 H × 3288 V (4640 H × 3320 V including border pixels). It can support 14−megapixel (4384 H × 3288 V) digital still images and a 1080p plus additional 20 percent pixels for […]

Instruction Manual.pdf Datasheet.pdf

Blog

Arducam USB3.0 Camera Shield

Posted: May 9, 2018

Introduction Arducam USB3 camera shield is the latest USB3.0 camera shields, it offers the improved performance and enhanced functions than the previous USB2.0 camera shield. It not only supports high resolution and high frame rate image sensors, but also supports stereoscopy camera and IRCUT control feature. With the given camera configuration files, user can switch […]

GitHub

ArduCAM/RaspberryPi

How to purchase

You can purchase this item from Arducam distributors
