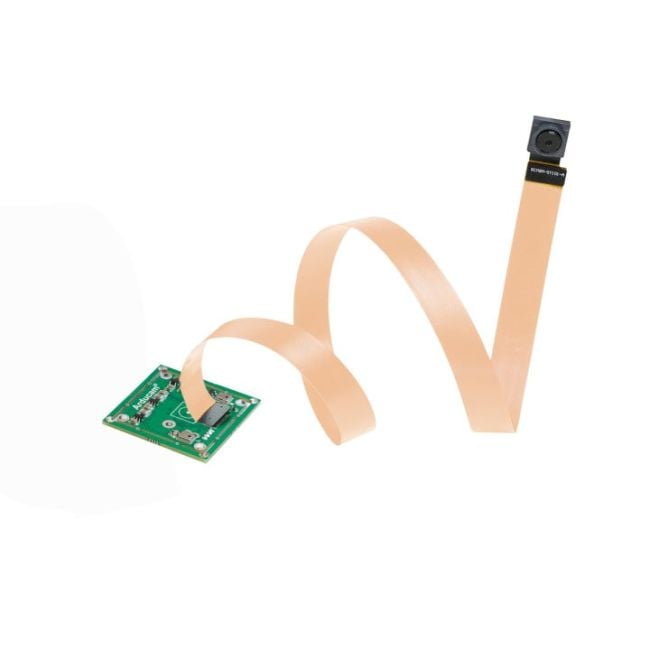

Arducam 8MP IMX219 USB2.0 Camera Module with 300mm Extension Cable
SKU
B0320
- More than HD: This camera adopts 8MP IMX219 sensor for sharp image and accurate color reproduction
- Frame Rates: TBD
- Widely Compatible: Support Windows, Linux, Mac and Android with UVC.
- Plug&Play: UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: this tiny 31mmx31mm camera board can be installed in most hidden and narrow position for a home surveillance system, monitoring 3D Printer, dashcam or other machine vision application.
$42.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam 8MP IMX219 USB2.0 Camera Module with 300mm Extension Cable
Specifications
| Image Sensor | |
| Sensor | IMX219 |
|---|---|
| Still Resolution | 8 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/4" |
| Output Format | MJPG/YUY2 |
| Pixel Size | 1.12μm*1.12μm |
| Sensor Active Area | 3280(H)×2464(V) |
| Max Frame Rate | MJPG: 15fps@3264×2448/2592×1944; 30fps @1920×1080/1600×1200/1280×720/800×600/640×480 YUV: 10fps@1280×720/800×600/640×480/320×240 |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Lens | |
| Focus Type | Fixed Focus |
| FOV | 75°(D)×60°(H)×47°(V) |
| Lens Type | Stock Lens |
| F.NO | F2.0 |
| E.F.L | 3.04mm |
| Default Focus Range | 40mm-∞ |
| USB Interface | |
| Interface | USB 2.0 device |
| Connector | B4B-ZR(LF)(SN) |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Working Current | Max 200mA |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Camera Board Size | 38*38 mm (Hole Pitch: 34mmx34mm, 28mmx28mm) |
| Functionality and Compatibility | |
| Audio | Dual Microphone |
| Supported OS | Windows, Linux, Android, and Mac OS with USB Application |
| Recommend Sample Application | Amcap for Windows, VLC Player for Linux |
| UVC Controls | Saturation, Contrast, Acutance, White balance, Exposure. |
Applications
- Windows, Linux, Mac, and Android with UVC
Package Including
- 1pcs Arducam IMX219 USB2.0 Camera Module
- 1pcs Arducam 300mm extension cable
- 1pcs 3.3ft (1m) UVC cable
Documentation:
User guide.pdf
3D drawing.step
