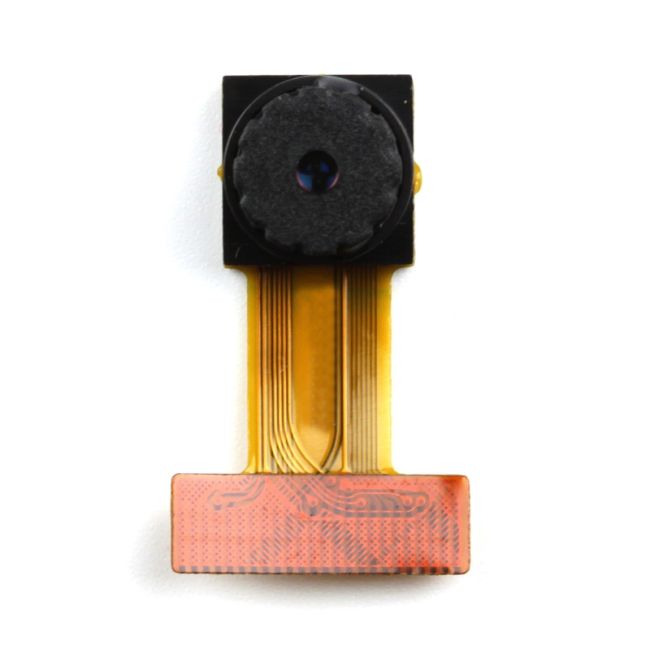

Arducam 1MP OV9655 1/4" CMOS Standalone Camera Module UC9655-D

Features

• High sensitivity for low-light operation
• Low operating voltage for embedded portable apps
• Standard SCCB interface
• Output support for Raw RGB,RGB(GRB 4:2:2, RGB565/555), YUV (4:2:2) and YCbCr(4:2:2) formats
• Supports image sizes:SXGA,VGA,CIF,and any size scaling down from CIF to 40*30
• VarioPixel^® method for sub-sampling
• Automatic image control functions including automatic exposure control (AEC), automatic white balance (AWB), automatic band filter (ABF), and automatic black-level calibration(ABLC)
• Image quality controls including color saturation, gamma, sharpness (edge enhancement), lens correction, white pixel canceling, noise canceling, and 50/60 Hz luminance detection
• Supports LED and flash strobe mode
• Supports scaling

Key Specifications

• Active array size: 1289*1024
• Power supply: core 1.8VDC ± 10%, analog 2.45 to 3.0VDC,I/O 1.7V to 3.3V
• Power requirements: active 90 mW typical (15fps SXGA YUV format), standby <20 uA, operation -30℃ to 70℃, stable image 0℃ to 50℃
• Output formats (8-bit): YUV/YCbCr 4:2:2, RGB565/555, GRB 4:2:2, Raw RGB Data
• Lens size: 1/4"
• Chief ray angle: 25°
• Maximum image transfer rate: SXGA 15fps, (VGA CIF and down scaling) 30fps
• Sensitivity: 1.1V/(Lux• sec)
• S/N ratio: 42 dB
• Dynamic range: 50 dB
• Scan mode: Progressive
• Maximum exposure interval: 1050 * t_ROW
• Gamma correction: programmable
• Pixel size: 3.18 um * 3.18 um
• Dark current: 15mV/s at 60℃
• Well capacity: 10 Ke
• Fixed pattern noise: <0.03% of V_PEAK-TO-PEAK
• Image area: 4.17 mm * 3.29 mm
• Package dimensions: 5145 um * 6145 um
