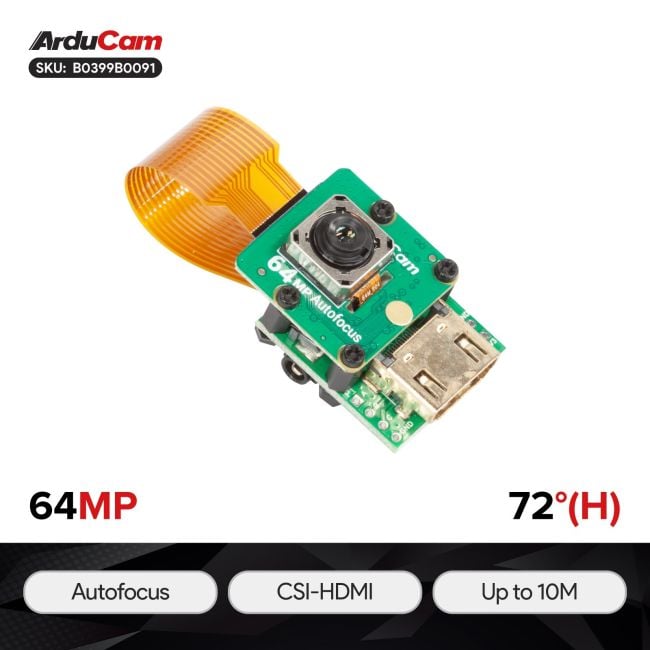

64MP Camera and CSI-to-HDMI Adapter Set
SKU
B0399B0091
- Longer Cable Length: Extend your pi camera connection up to 10 meters.
- Zero Configuration: plug-n-play out of the box.
- 64MP Camera: best-in-class ultra high res module.
- Natively Supported: also works with official V1, V2, and HQ cameras.
- Highly Compatible: works well with most Pi models.
- Reliability: Robust and durable. No worry about the fragileness and vulnerability of FPC cables’ crisp nature.
$73.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
A high-res 64MP autofocus camera paired with a CSI-to-HDMI cable extension solution that offers up to 10-meter connection for most Raspberry Pis.
Great for projects/applications where you need to put a camera module far away from an RPi.
The CSI-to-HDMI kit works out of the box, no extra software/configuration is needed, it is also compatible with the official camera V1/V2/HQ and Arducam OV5647/IMX219/IMX477 series.
We also have another kit if you want longer connections over CSI 2.
Specifications
| Optical Size | 1/1.7" 9.25mm Diagonal(7.4×5.55mm) |
| Focus Type | Manual/Auto |
| Sensor Resolution | 9152×6944 |
| Color Filter | Quad Bayer Coding(QBC) |
| Focus | 8cm~INF |
| Focal Length | 5.1mm |
| View Angle | 84 Degrees (Diagonal) |
| Dimensions | 25×24 mm |
| Shutter Type | Rolling |
| Sensor Output Formats | RAW10 |
| Video Modes (Camera Module)* | 9152×[email protected], 8000×6000@3fps, 4624×3472@10fps, 3840×2160@20fps, 2312×1736@30fps, 1920×1080@60fps, 1280×720@120fps |
| Platform Output Formats | JPEG/YUV/RGB/RAW10 |
| Video Modes (on Raspberry Pi) | 1080p30,720p60 and 640×480p60/90 |
| Supported Platforms | Raspberry Pi 5/4B/Pi 2/3/CM3/CM4/CM5/Zero W/Zero 2 W |
| Raspberry Pi OS | bookworm/bullseye(32-bit/64-bit) 01/28/22 or later releases |
Specifications - CSI-to-HDMI Kit
- Support NVIDIA Jetson and Raspberry Pi 5, 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+, Pi Zero
- Reserved microphone and headphone jack for audio or GPIO signals
- Three additional solder pads are available (same signals as a headphone jack)
- Reliability: Way more durable than FPC cables when it is folded or twisted or under negative environmental factors such as moisture, humidity and temperature changes.
- Size: 27.63 x 25.00mm
Documentation
- 64MP-AF Product Brief
- 64MP Camera & CSI-to-HDMI Cable Extension Kit
- How to use Arducam 64MP camera on Raspberry Pi
- Arducam Camera Extension Solution for Raspberry Pi Cameras
- 64MP-AF Camera Getting Started Guide
Note
The arducam 64MP cameras can only get maximum resolution and video streaming on Pi4 and CM4 platforms. The resolution and video streaming of the camera will be limited on other Raspberry Pi platforms
Packing Including
- 1 x 64MP-AF Camera
- 2pcs HDMI to CSI Adapter Boards
- 2 x 80mm 15-15pin Ribbon Cables
- 2 x 73mm 15-22pin Ribbon Cables
- 1 x 150mm 15-22pin Ribbon Cable
- 1 x 150mm 22-22pin Ribbon Cable
Note:
**Make sure to use high-quality HDMI v2.1 cables.
