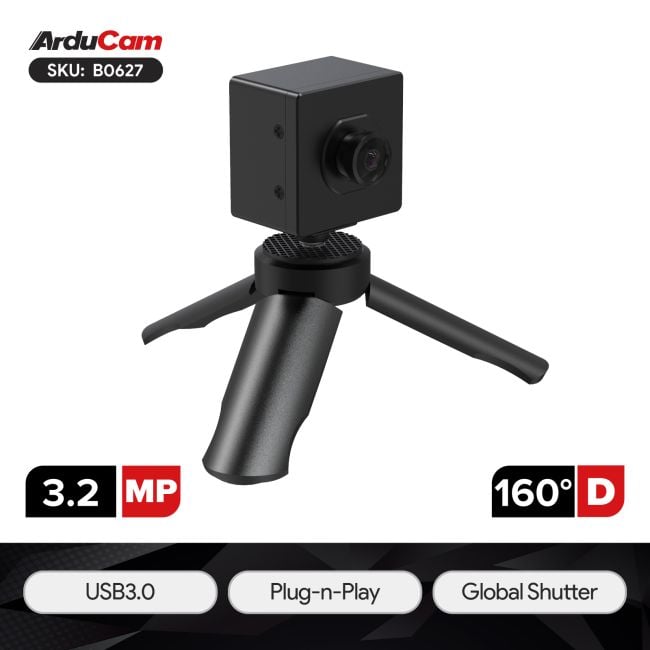

Arducam RoAD IMX900 3.2MP Global Shutter USB3 Wide Angle Camera for Robotics
SKU
B0627
- 3.2MP Global Shutter: High-res IMX900 sensor captures fast-moving objects without motion distortion.
- USB3 Type-C: Plug-and-play UVC compliance for easy setup on Linux, Windows, and Edge platforms.
- 125.6° Wide Angle: M12 lens with a broad field of view, ideal for robotic navigation and SLAM.
- Superior NIR & Fast AE: Enhanced near-infrared sensitivity and rapid auto-exposure for fluctuating light.
- Customization Options: Available customization options for External trigger, Resolution&Frame Rate, ROI, etc.
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam RoAD (Robotics & AI Deployment) IMX900 USB3 Camera Module is a professional-grade imaging solution designed to bridge the gap between Proof of Concept (POC) and large-scale deployment. Featuring the advanced Sony IMX900 global shutter sensor, it delivers 3.2MP of crystal-clear, motion-jelly-free data, making it a cornerstone for modern robotic perception and AI training.
Beyond the hardware, choosing the Arducam RoAD series means choosing long-term peace of mind. We understand that industrial projects require consistency; therefore, we guarantee long-term supply availability and dedicated technical support. Our modules are designed with flexibility in mind—offering customizable lens options and firmware tuning—ensuring that Arducam remains your reliable partner throughout the entire product lifecycle.
Applications
- Autonomous Mobile Robots (AMR): Ideal for obstacle avoidance, SLAM (Simultaneous Localization and Mapping), and warehouse navigation.
- AI Training Data Collection: High-fidelity, global-shutter image capture for training robust machine learning models.
- Industrial Automation: High-speed assembly line inspection and quality control where motion blur is not an option.
- Gesture Recognition & Tracking: High NIR sensitivity allows for precise tracking in low-light or infrared-illuminated environments.
- Edge AI Deployment: Lightweight UVC protocol for seamless use with Jetson Orin, Raspberry Pi, and other edge computing platforms.
Features
- Precision Global Shutter Technology:
Unlike rolling shutter sensors that produce "jello" effects, the IMX900 global shutter captures the entire frame at once. This ensures that every pixel is synchronized, providing the geometric accuracy required for 3D reconstruction and high-speed motion analysis. - Optimized for Robotics (125.6° HFOV):
The pre-installed M12 wide-angle lens offers a 125.6-degree horizontal field of view. This expansive perspective allows robots to see more of their surroundings with fewer cameras, reducing system complexity and power consumption. - Enhanced Low-Light & NIR Performance:
The IMX900 sensor is engineered for high sensitivity in the Near-Infrared spectrum. When paired with the camera’s rapid Auto-Exposure (AE) algorithms, it delivers stable, usable footage even when transitioning between dark shadows and bright sunlight. - Industrial-Grade USB 3.0 Interface:
The USB 3.0 Type-C interface provides the high bandwidth necessary for 3.2MP data transmission at high frame rates. Its UVC compliance means it is recognized as a standard webcam, ensuring instant compatibility with ROS (Robot Operating System), OpenCV, and other developer tools. - Scalable & Customizable:
While the standard module is optimized for high-speed capture, the underlying IMX900 sensor supports Quad HDR technology. For specialized applications requiring extreme dynamic range or any other functions, Arducam offers customization services to unlock these advanced imaging capabilities to suit your specific deployment environment.
Specifications
| Camera | |
| Sensor | Sony® Pregius S IMX900 |
| Resolution | 3.2 Megapixels |
| Chroma | Color |
| Shutter Type | Global Shutter |
| Optical Format | 1/3.1" |
| Pixel Size | 2.25 µm x 2.25 µm |
| Sensor Active Area | 2064(H)x1552(V) |
| Sensor Image Area | 4.644 mm x 3.492 mm (5.81 mm diagonal) |
| Output Format | MJPG/YUV |
| Resolution@fps(USB3.0) | 2054x1552@30fps |
| Resolution@fps(USB2.0)) | 2054x1552@5fps |
| ISP | Yes |
| Lens | |
| Focus Type | Fixed Focus |
| FOV | 160°(D)×125°(H)×92.5°(V) |
| Lens Mount | M12*P0.5 |
| F.NO | F2.0 |
| E.F.L | 1.83mm |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Default Focus Distance | 30cm-INF |
| Distrotion | <-20% |
| Weight | 4.8g |
| USB Features | |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |
| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Functional and Compatibility | |
| Exposure Time Range | 500us~200000us |
| Supported OS | Windows, Linux |
| Recommend Imaging Applications | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Sharpness, Hue, Brightness, Contrast, Saturation, Power Line Frequency |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Power Consumption | Max: 1.6W |
| Camera Board Size | 34×34 mm |
| Overall Weight (Net) | 50g |
| Overall Size | 38x38 mm |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | RoHS |
Package Including
- 1 x Arducam 3.2MP IMX900 Color Global Shutter USB3 UVC Camera Module
- 1 x 1m USB A to Type-C Cable
Notes
- This module supports customized resolution, frame rate, and ROI. For other requirements, please contactArducam for customization.
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
