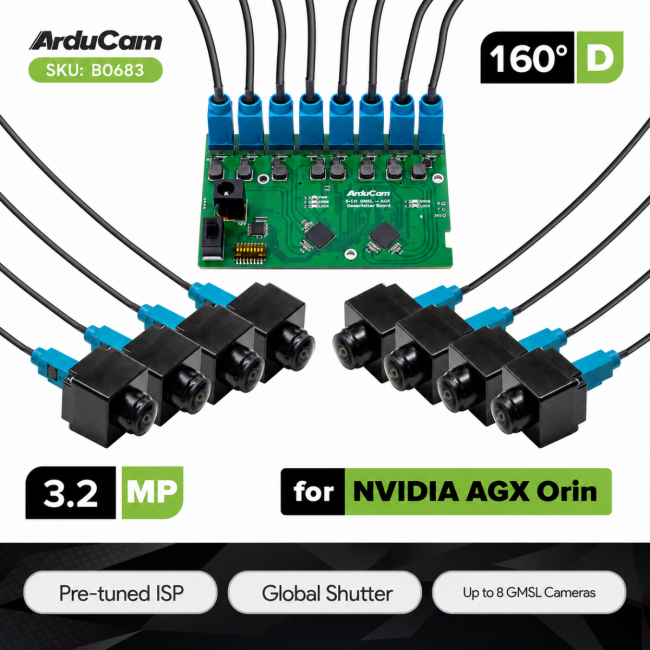

Arducam 3.2MP IMX900 8-Channel GMSL2 Camera Kit for NVIDIA Jetson AGX Orin – Color Global Shutter Wide-angle, IP65 Waterproof, up to 8 x camera and 15 m Cable Extension
SKU
B0683
Part No
RR-GMSL2-3MP-GS-125H-8Cam-Kit
- [8-Channel Camera Kit] Scalable setup supporting up to 8*IMX900 cameras for NVIDIA Jetson AGX Orin.
- [Sony IMX900 Global Shutter] 3.2 MP sensors designed to eliminate motion blur and distortion in high-speed scenarios.
- [125° Wide HFOV] Ultra-wide horizontal field of view for superior coverage and surround-view applications.
- [GMSL2 Long-Range Support] Reliable, low-latency video transmission up to 15m via coaxial cabling.
- [ISP Support & IP65] Image signal processing supported and weather-resistant housing for industrial reliability.
As low as
$2,499.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The 3.2MP IMX900 8-Channel GMSL2 Camera Kit is a professional-grade multi-camera solution designed for high-speed motion capture and synchronized perception on the NVIDIA Jetson AGX Orin. Featuring Sony’s Global Shutter IMX900 sensors, this kit eliminates motion artifacts and rolling shutter distortion, making it essential for fast-moving robotics and precision automation. Each module boasts a 125° Horizontal Field of View (HFOV) and ISP support, ensuring high-fidelity, wide-angle imaging with low-latency transmission over coaxial cables up to 15 meters. Encased in IP65-rated weather-resistant housings, it is built to deliver reliability in industrial and semi-outdoor environments.
Applications
- High-Speed Autonomous Robotics: Perfect for drones and warehouse robots moving at high velocities.
- Precision Industrial Automation: Quality inspection and gesture recognition without motion blur.
- 360° Surround View Systems: Leveraging the 125° HFOV for comprehensive situational awareness.
- Logistics & Sorting: Accurate tracking of fast-moving items on conveyor belts.
- AI Vision & Sensor Fusion: Multi-channel synchronized input for advanced AI workloads on Jetson Orin.
Features
- ▶ 8-Channel Synchronized Imaging: Supports up to eight IMX900 cameras connected simultaneously to the Jetson AGX Orin, providing massive bandwidth for 360° perception and complex spatial computing.
- ▶ Sony IMX900 Global Shutter Technology: Captures the entire frame at once, eliminating the distortion typical of rolling shutter sensors. Ideal for freezing high-speed motion in industrial and robotic applications.
- ▶ 3.2MP Resolution & 125° Wide HFOV: Delivers 3.2 megapixels of sharp detail paired with a 125-degree horizontal field of view, covering wider areas with fewer cameras.
- ▶ GMSL2 Extension up to 15 m: Utilizes high-speed GMSL2 technology for low-latency, high-bandwidth data transmission via coaxial cables. (Kit includes eight 1 m cables by default.)
- ▶ Image Signal Processor (ISP) Support: Features ISP support on NVIDIA Jetson platforms, optimized for the Jetson platform to handle color balance, exposure, and noise reduction.
- ▶ IP65 Weather-Resistant Design: The cameras are housed in IP65-rated enclosures, providing robust protection against dust and water splashes, suitable for industrial workshops and outdoor use.
- ▶ Native Jetson AGX Orin Optimization: Specifically engineered for the Jetson AGX Orin architecture, ensuring seamless integration, high-frame-rate performance, and minimal CPU overhead.
Specifications
| Image Sensor | |
| Sensor | Sony's IMX900 |
| Resolution | 3.2 Megapixels |
| Chroma | Color |
| Shutter Type | Global Shutter |
| Optical Format | 1/3.1" |
| Pixel Size | 2.25 µm x 2.25 µm |
| Sensor Active Area | 2064(H)×1552(V) |
| Sensor Image Area | 5.760 mm x 4.608 mm (7.38 mm diagonal) |
| Resolution@fps | 2048x1552@30fps |
| ISP Support | Yes |
| Lens | |
| Focus Type | Fixed Focus |
| FOV | 160°(D)×125°(H)×92.5°(V) |
| Lens Mount | M12 |
| F.NO | F2.0 |
| E.F.L | 1.83mm |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Distrotion | <-20% |
| Weight | 4.8g |
| Functionality and Compatibility | |
| Camera Interface | GMSL2 |
| Connector | FAKRA Connecter |
| Output Format | RAW/YUV* |
| GMSL Serializer | MAX96717 |
| GMSL Deserializer | MAX96724 |
| Supported OS | JetPack6.2/L4T36.4.3 and later versions |
| Supported Platform | NVIDIA Jetson AGX Orin |
| Electrical and Mechanical | |
| GMSL Cable Length | 1m by default, up to 15m (please contact [email protected] for 15m cable) |
| Overall Weight (Net) | 412g |
| Overall Size | Camera Module: 34 x 34 mm Deserializer Board: 93.2 x 58.3 mm |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| IP Rating | IP65 |
| Certification | RoHS & CE |
RAW/YUV*: The camera outputs RAW format data, and the NVIDIA Jetson ISP supports both RAW and YUV output. Image captured directly from video0 is in RAW format, while the output from the NVIDIA Jetson ISP is in YUV format.
Notes
- The camera kit is currently available for specific customers. If you need this product, please contact Arducam Sales in advance for confirmation.
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
