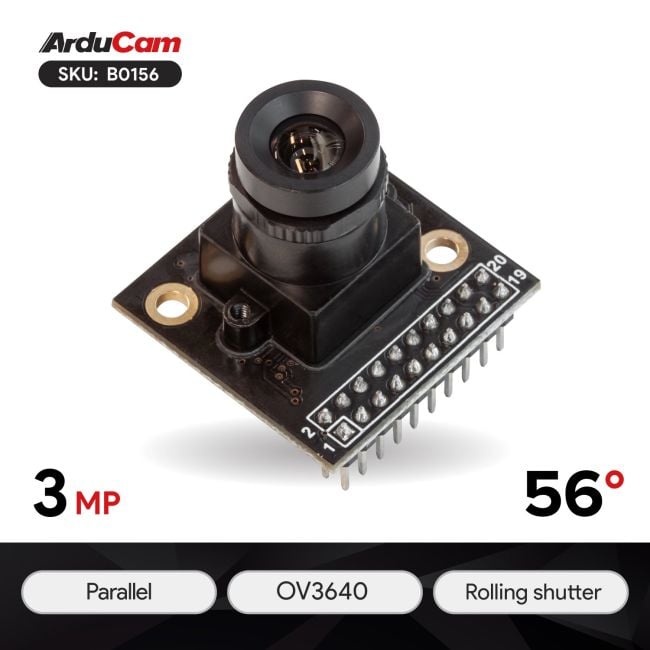

Arducam 1/4" 3 Mega pixel M12 Mount OV3640 Camera Module with JPEG Output
SKU
B0156
$19.99
Overview
Specifications
Wiki
Documents
Video
Customization
Features
- Onboard LDO regulators for 2.8V and 1.8V
- Single 3.3V power input
- 2.54mm (0.1 inch) standard pin out
- active array size: 2048 x 1536
- power supply:
core: 1.5VDC + 5% (internal regulator)
analog: 2.6 ~ 3.0V
I/O: 1.7 ~ 3.0V - output formats :
(8-bit): YUV(422/420) / YCbCr422,
RGB565/555/444, CCIR656,
8-bit compression data,
8/10-bit raw RGB data - lens size: 1/4″
- input clock frequency: 6 ~ 27 MHz
- shutter: rolling shutter
- maximum image transfer rate:
3 megapixel (2048×1536): 15 fps (and any size scaling down from 3 megapixel)
XGA(1024×768): 30 fps - scan mode: progressive
- pixel size: 1.75 μm x 1.75 μm
- image area: 3626 μm x 2709 μm
- Interface: Parallel RAW,RGB,YUV,JPEG output
- External 1/4 inch high quality M12x0.5 lens
Documentation
User guide
Datasheet
Application note
3D Drawing
