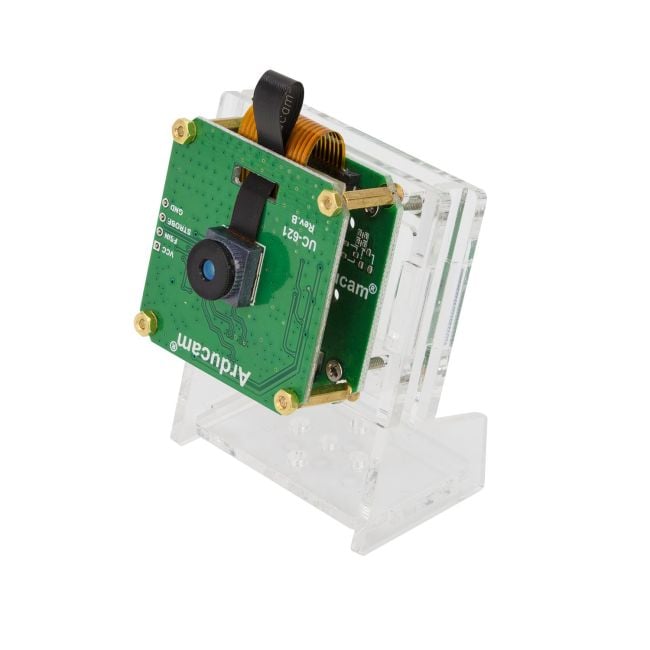

[Discontinued] Arducam 2MP OV2311 Global Shutter Mono NoIR Camera Module for Jetson Nano (Jetvariety RAW 2 STK)
SKU
B0220
Discontinued, check alternative item B0221.
$109.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano. Arducam released this 2MP Global shutter OV2311 camera module, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware. Based on 1/2.9-inch Omnivision OV2311 image sensor which adopts OmniPixel3-GS™ technology, it can provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 60fps in full resolution at 2-lane MIPI bus with complete user control over image quality.
Due to the sensor's high resolution, the OV2311 offers exceptionally accurate gaze- and eye-tracking capabilities, and it achieves high near-infrared quantum efficiency to minimize active illumination power and reduce the system power requirements.
⚠️ KERNEL CAMERA DRIVER USED
This camera relies on kernel drivers to work – one kernel version, one camera driver. Up or downgrading your OS leads to a kernel bump, and you may need to re-install a matching driver.
Features
- Sensors
- Sensor: Global Shutter OV2311 Monochrome
- Pixel size: 3 µm x 3 µm
- Active array size: 1600 x 1300
- Optical Format size: 1/2.9"
- Maximum image transfer rate: 1600 x 1300: 60 fps
- Support for image sizes: 1600 x 1300, 1280 x 720, 640 x 480
- Input clock frequency: 6~27 MHz
- Max S/N ratio: 37.4 dB
- Dynamic range: 68 dB
- Lens
- Lens Thread: M9 x 0.25P
- Lens Field of View(FoV): 55°(H)
- IR Sensitivity: without IR filter, sensitive to IR
- Camera Module
- Output interface: 2-lane MIPI
- Output formats: RAW 8/10 bit
- Minimum exposure time: 1 row period (11.3us at the resolution of 1600x1300 on Jetson Nano.)
Driver Features
- Support Gray, Y10, Y16
- Support standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
- Support External Trigger Global Shutter Camera
- Support Single Line Driver Installation Command
- Support OpenCV Friendly and Provides Source Code Demonstration
- Support Dual Camera Synchronization
Applications:
- Augmented and virtual reality
- Drones
- 3D imaging
- Machine vision
- Industrial bar code scanning
- Industrial automation
