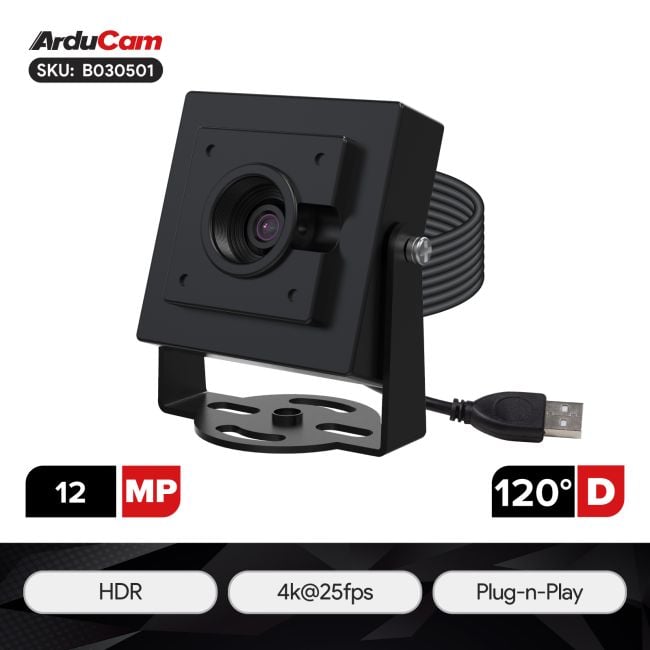

Arducam A708, 120°(DFOV) Wide-Angle Fixed Focus, 12MP HDR USB2 UVC Camera Module
SKU
B030501
- [Plug-and-Play] No additional driver is needed.
- [HDR] Features the High Dynamic Range function.
- [High Resolution] 12MP, Max resolution: 4608 × 2592
- [Wide Angle Fixed Focus]: 120 °(DFOV) Wide Angle Fixed Focus Lens, integral IR-cut filter. With Fixed Focus Lens, you can get a more stable and quickly generated image.
- Check 75 °(DFOV) Autofocus version: B030401
$71.98
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
A 12MP USB camera module with HDR support and a 120 °(DFOV) Wide Angle fixed-focus lens, designed for high-quality imaging up to 4608×2592 resolution. Its integrated 650nm IR-cut filter ensures accurate color performance. With plug-and-play compatibility on Windows, Linux, Android, and macOS—no driver required—the A708 is a reliable UVC solution for applications demanding clarity, durability, and wide dynamic range.What’s more, if off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
Applications
- Robotics
- Precision Agriculture
- Medical and Scientific Research
- Document Scanning and Archiving
- Broadcast and Media Production
Features
- [Plug-and-Play]: This 12MP camera module offers hassle-free plug-and-play operation across Windows, Linux, Android, and macOS platforms. No additional drivers or software are required—simply connect via USB and start capturing high-quality images instantly.
- [HDR Support]: Equipped with High Dynamic Range (HDR) technology, the camera captures well-balanced images that retain detail in both bright and shadowed areas, delivering superior image quality in challenging lighting environments.
- [High Resolution]: Featuring a 12MP sensor, the camera produces sharp still images with a maximum resolution of 4608 × 2592 pixels, ensuring clear and detailed visuals suitable for demanding applications.
- [Wide-Angle Fixed Focus]: The module is fitted with a high-quality 120 °(DFOV) wide-angle fixed-focus lens designed for consistent sharpness at a set focal distance. An integrated 650nm IR-cut filter enhances color accuracy by blocking infrared light, making it ideal for true-to-life color reproduction.
Specifications
| Camera | |
| Still Resolution | 12MP |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2.43" |
| Output Format | MJPG/YUY2 |
| Pixel Size | 1.4µm x 1.4µm |
| Sensor Active Area | 4608(H)x2592(V) |
| Frame Rate (MJPG) | 4608x2592@15fps, 3840x2160@25fps; 3264x2448@25fps, 2592x1944@30fps; 1920x1080@30fps,1280x720@30fps; 640x480@30fps; |
| Frame Rate (YUV) | 640x480@30fps, 320x240@30fps; 320x320@30fps, 128x128@30fps; 96x96@30fps; |
| Lens | |
| Focus Type | Fixed Focus |
| FOV | 120°(D)x102°(H)x67°(V) |
| Lens Mount | Stock Lens Mount |
| F.NO | F2.2 |
| E.F.L | 2.75mm |
| IR Sensitivity | Integral 650nm IR Filter |
| Default Focus Distance | 150cm~INF |
| Distrotion | <-22.30% | USB Features |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Functionality and Compatibility | |
| HDR Mode | Support |
| Supported Platform | x86 PC |
| Supported OS | Windows, Linux, Android |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Lowlight Compensation, Gain, Exposure (Manual/Auto) |
| Electrical and Mechanical | |
| Operating Voltage | 5V |
| Power Consumption | MAX:1.75W |
| Camera Board Size | 32mm x 32mm x 1.6mm |
| Overall Weight (Net) | 12g |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | RoHS |
Package Including
- 1 x Arducam A708 Fixed Focus Wide-Angle USB UVC Camera Module
- 1 x USB2.0 Cable (1m/3.3ft)
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
- If you can't capture the images using Amcap, please try other software such as USB Camera, PotPlayer, etc.
Documentation
- How to use UVC Camera on Linux
- How to use UVC Camera on Windows
- Modify Serial Number for UVC Cameras
- Raspberry Pi V3 IMX708 Camera Variants & Peripherals
Blog
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
