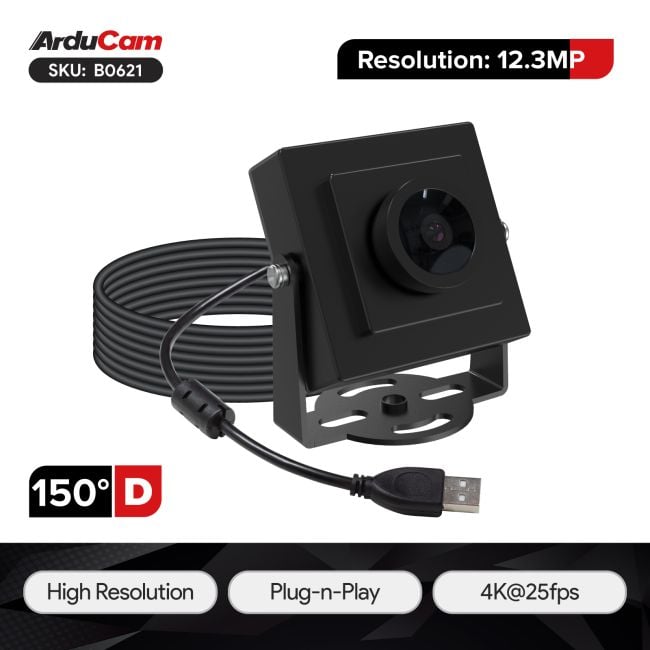

Arducam 12MP 4K@25fps USB2.0 UVC Wide Angle Camera Module for Windows, Linux, and Android
SKU
B0621
- [4K Ultra HD] Powered by a 12MP high-resolution image sensor, delivering a maximum resolution of 4032(H)×3040(V).
- [Enhanced Image Quality] Features an upgraded core controller for significantly improved clarity and overall image performance.
- [150° Ultra Wide-Angle] Equipped with a 150° DFOV M12 wide-angle lens, ideal for landscape photography and large-scene capture.
- [Wide Compatibility] UVC protocol compliant, supporting Windows, Linux, Android, and embedded systems out of the box.
- [Plug & Play] UVC-compliant, driver-free, and ready to use immediately after connection.
$49.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam 12MP 4K@25fps USB2.0 UVC Wide Angle Camera Module delivers high-resolution imaging with exceptional ease of use. Built around a 12MP high-performance image sensor, it supports clear 4K video at 25fps and a maximum resolution of 4032×3040, ensuring sharp, detailed visuals for a wide range of applications. Featuring an upgraded core controller and a 150° DFOV M12 wide-angle lens, this camera module provides improved image quality and expanded field of view, ideal for large-scene capture, landscape recording, and wide-view projects. Compliant with the standard UVC protocol, it offers full plug-and-play functionality with no drivers required, and is widely compatible with Windows, Linux, and Android systems. Designed for reliability and simplicity, it is a versatile solution for embedded vision, monitoring, creative imaging, and everyday camera applications.
Applications
- 3D Scanner
- VR Camera
- Lightburn Laser Engraver Machine
- Surveillance
- Video System
Features
- 4K Ultra HD High Resolution Powered by a high-quality 12MP image sensor, this camera module supports a maximum resolution of 4032(H)×3040(V) and smooth 4K video at 25fps, delivering sharp, detailed, and high-definition images for professional and daily imaging applications.
- Enhanced Image Quality Adopting an upgraded core controller solution, the camera significantly improves overall image performance with better clarity, color accuracy, and stability, ensuring consistent and reliable imaging even in varied lighting conditions.
- 150° Ultra Wide-Angle Lens Equipped with a 150° DFOV M12 wide-angle lens, this module captures a much broader field of view compared to standard lenses, making it highly suitable for landscape photography, large-area monitoring, scene capture, and wide-view applications.
- Wide System Compatibility Fully compliant with the standard UVC protocol, the camera supports a wide range of systems including Windows, Linux, Android, and embedded platforms, offering great flexibility for different devices and development environments.
- Easy Plug & Play Operation Designed for hassle-free use, this UVC-compliant camera supports true plug-and-play functionality with no additional drivers or complex setup required, allowing users to start capturing images and videos right after connection.
Specifications
| Camera | |
| Image Sensor | SONY 12MP Image Sensor |
| Max Still Resolution | 4032(H)x3040(V)=12.3MP |
| Color Filter Type | Color |
| Shutter Type | Rolling Shutter |
| Optical Size | 1/2.3'' |
| Output Format | MJPG |
| Pixel Size | 1.55 µm x 1.55µm |
| Sensor Active Area | 4032(H) x 3040(V) |
| Frame Rate(MJPG) | 4032x3040@10fps, 3840x2160@25fps; 2592x1944@25fps, 2056x1520@30fps; 1920x1080@30fps, 1600x1200@30fps; 1280x720@30fps, 640x480@30fps; |
| Lens | |
| Focus Type | Fixed Focus |
| FOV | 150°(D)x120°(H)x90°(V) |
| Lens Mount | M12*P0.5 |
| F.NO | F2.8±5% |
| E.F.L | 2.87±5%mm |
| Default Focus Range | 0.5m-INF |
| Distortion | -63.41% |
| Weight | 5g |
| IR Sensitivity | Integral 650nm IR Filter |
| USB Interface | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Functionality and Compatibility | |
| Supported Cable Length | 1m by default, 3m USB Cable Supported |
| Supported OS | Windows, Linux, Android |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Sharpness, Backlight Compensation, Gain, Exposure(Auto/Manual). |
| Electrical and Mechanical | |
| Operating Voltage | 5V |
| Power Consumption | 1.3W |
| Camera Board Size | 32mmX32mmX1.6mm |
| Overall Weight (Net) | 150g |
| Overall Size | 38.6x44.83x13.78 (exclude the Lens) |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certifications | RoHS, FCC |
Package Including
- 1 x Arducam 12MP Wide Angle USB2 UVC Camera Module
- 1 x 1m USB2 to B4B-ZR JST Cable
Notes
- This module supports customized resolution, frame rate, and ROI.
- This module supports a minimum exposure time of 100µs under the current UVC protocol. For even lower exposure times, please contact Arducam for customization.
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
