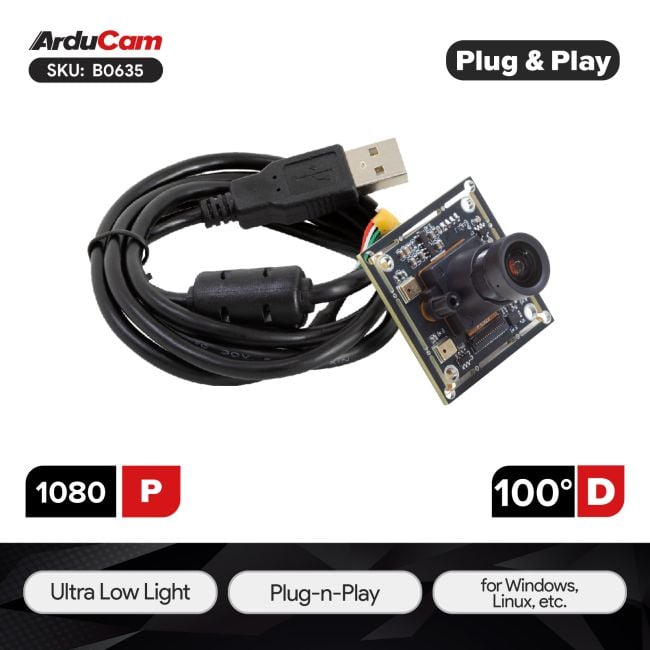

Arducam 1080P Ultra Low Light 100 Degree Wide Angle USB2 UVC Camera Module
SKU
B0635
- [Ultra Low Light] Boosts low-light sensitivity with Nyxel® and PureCel®Plus technologies for crisp, low-noise nighttime imaging.
- [1080P Full HD] Captures crisp and detailed high-definition video at smooth frame rates for professional applications.
- [100° Wide Angle] Features a 100-degree diagonal field of view to capture more content.
- [Plug-and-Play] Driverless UVC-compliant USB2 interface ensures quick and effortless setup across multiple platforms.
- [Rich ISP Controls] Offers versatile manual and auto adjustments for brightness, contrast, white balance, and exposure.
- [OEM/ODM] Customization options available.
$47.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam 1080P Ultra Low Light USB2 Camera Module is a high-performance imaging solution engineered for challenging environments. Integrating Nyxel® near-infrared and PureCel®Plus pixel technologies, this module captures crisp, noise-free Full HD video even in the darkness. With its generous 100° wide-angle view and driverless UVC plug-and-play convenience, it integrates seamlessly into various setups. Whether you need precise auto-adjustments or manual fine-tuning, its comprehensive ISP controls give you complete command over every visual detail, making it a reliable choice for advanced vision systems.
Applications
- Nighttime Security and Surveillance: Ideal for monitoring low-illumination areas without requiring heavy external lighting.
- Industrial Machine Vision: Perfect for automated inspection lines and robotic guidance in variable lighting environments.
- Smart Kiosks and ATMs: Enables reliable facial recognition and user interaction in dimly lit indoor or outdoor settings.
- Medical Imaging Devices: Suitable for specialized medical equipment requiring high-sensitivity and detailed color reproduction.
Features
- [Ultra Low Light Excellence] Enhanced by Nyxel® near-infrared and PureCel®Plus technologies, this camera module excels in dim environments, capturing bright, color-accurate, and ultra-low-noise images under the most challenging lighting conditions.
- [1080P HD Definition] Stream and record crystal-clear Full HD video at smooth frame rates, ensuring that every crucial detail is preserved for high-accuracy analysis or high-quality video streaming.
- [100° Wide Angle View] Equipped with a finely calibrated 100-degree diagonal field of view lens, it maximizes visual coverage, making it ideal for monitoring expansive areas without unacceptable distortion.
- [Seamless Plug-and-Play] Fully compliant with UVC standards, this USB2 camera module requires no extra drivers, offering hassle-free compatibility with Windows, Linux, and Android systems out of the box.
- [Advanced ISP Controls] The onboard Image Signal Processor allows users to fine-tune every detail through manual or automatic adjustments, including brightness, contrast, saturation, white balance, exposure, and gain.
Specifications
| Camera | |
| Max Still Resolution | 2 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2.8″ |
| Output Format | MJPG/YUV/H.264 |
| Pixel Size | 2.9 µm x 2.9 µm |
| Sensor Active Area | 1920(H) x 1080(V) |
| Frame Rate(MJPG/H.264) | 1920x1080@30FPS, 1280x720@30FPS; 640x480@30FPS, 320x240@30FPS; |
| Frame Rate(YUV) | 640x480@30FPS, 320x240@30FPS; 320x320@30FPS, 128x128@30FPS; 96x96@30FPS; |
| Lens | |
| Focus Type | Fixed Focus |
| FOV | 102°(D)×88°(H)×47°(V) |
| Lens Mount | M12-S |
| F.NO | F1.0 |
| E.F.L | 3.9mm |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Default Focus Distance | 300cm~INF |
| Distrotion | TV Distortion: -10.4%; F-θ Distortion: -32.0% |
| USB Features | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux, Android |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Gamma, Gain, Sharpness, Backlight Compensation, Lowlight Compensation, Exposure (Manual/Auto) |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Power Consumption | Max: 1W |
| Camera Board Size | 38mmX38mmX1.6mm |
| Overall Weight (Net) | 18g |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | RoHS |
Package Including
- 1 x Arducam 1080P Wide-Angle Ultra Low Light USB2 UVC Camera Module
- 1 x 1m USB2 to B4B-ZR JST Cable
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
