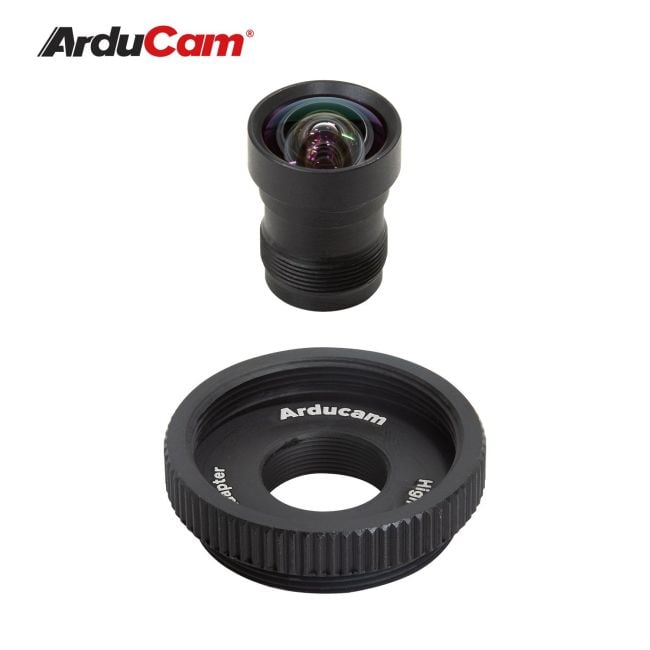

Arducam 75 Degree 1/2.3" M12 Lens with Lens Adapter for Raspberry Pi High Quality Camera
SKU
LN053
$14.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to wide angle for shooting on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.
If you want to grab all the available S-mount lenses for the HQ camera, Arducam has also got a 6-in-1 M12 lens bundle here.
Lens Specification
- Model No: M23390H08
- Optical Format: 1/2.3”
- Focal Length: 3.9mm
- Aperture: F2.8
- Field of View (FOV): 75° (H) on Raspberry Pi High Quality Camera, 50°(H) on Raspberry Pi V1/V2 Camera
- Mount: M12 mount
- Back Focal Length: 4.49mm
- MOD: 0.3m
- Dimension: Φ14×18.67mm
- Weight: 5g
Other Arducam S-mount lenses with different FoVs
- Lenses ender 70 degree: 20° HQ Camera Lens, 50° HQ Camera Lenses,, 75° HQ Camera Lenses.
- Wide Angle and Fisheye Lenses: 90° HQ Camera lens, 140° HQ Camera lens, 180° HQ Camera Lens.
Package Including
- 1pcs 1/2.3″ M12 75 degree camera Lens
- 1pcs M12 lens adapter
Documentation
Introduction
A lens is used to converge the light beams to an image plane on the image sensor for an clear and sharp frame. To understand how to quickly sort out the best lens, refer to this focal length calculator page. Something You Should Know about the Lenses Focal Length Parallel incident light transmitted into a […]
3D drawing.step |
Datasheet.pdf |
