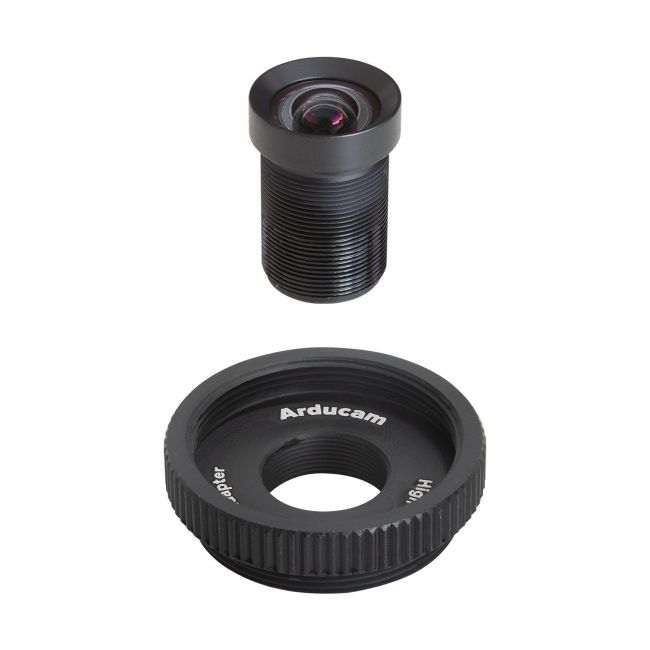

[Discontinued] Arducam 70 Degree 1/2.3" M12 Lens with Lens Adapter for IMX477 High Quality Camera
SKU
LN023
Note: This product was discontinued, check the Similar lens LN053
$12.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
In order to meet the new demands of the lens to work with IMX477 High Quality Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to wide angle for shooting on your HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.
If you want to grab all the available S-mount lenses for the HQ camera, Arducam has also got a 6-in-1 M12 lens bundle here.
Lens Specification
- Model No: M23430M14
- Optical Format: 1/2.3”
- Focal Length: 4.3mm
- Aperture: F2
- Field of View (FOV): 70° (H) on Arducam High Quality Camera, 45°(H) on Raspberry Pi V1/V2 Camera
- Mount: M12 mount
- Back Focal Length: 3.62mm
- MOD: 0.3m
- Dimension: Φ14×19.58mm
- Weight: 8g
- IR Sensitivity: sensitive to visible light, with 650nm IR filter
Other Arducam S-mount lenses with different FoVs
- Lenses ender 70 degree: 20° HQ Camera Lens, 50° HQ Camera Lenses.
- Wide Angle and Fisheye Lenses: 90° HQ Camera lens, 140° HQ Camera lens, 180° HQ Camera Lens.
Package Including
- 1pcs 1/2.3″ M12 70 degree camera Lens
- 1pcs M12 lens adapter
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
