Arducam 18MP USB Camera Evaluation Kit - CMOS AR1820HS 1/2.3−inch Color Camera with USB3.0 Camera Shield Plus
SKU
EK013
Note: The product has been changed and the information?will be?updated soon.
$319.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview

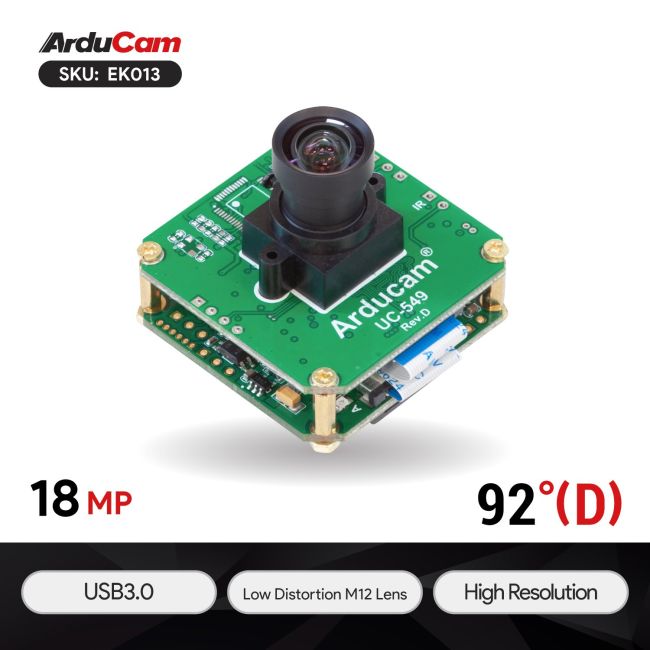

To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
Arducam AR1820HS camera breakout incorporates ON Semiconductor 1/2.3−inch CMOS active−pixel digital imaging sensor AR1820HS with 1.25um x 1.25um A-PixHS™ BSI Pixel and it can support 18-megapixel (4912H x 3684V) digital still images.
Features:
- Optical format: 1/2.3−inch
- Active pixels: 4912H x 3684V
- Pixel size: 1.25um x 1.25um
- Color filter array: RGB Bayer pattern
- ADC resolution: 12−bit, on−chip
- Responsivity: 0.62 V/lux−sec (545 nm)
- Dynamic range: 65.8 dB
- SNRMAX: 36.3 dB
- Output Interface: USB 2.0
- Frame Rate: 60 fps
- Lens Default: low distortion M12 lens (Part Number: M23390H08)
- FoV: 92°(D)×79°(H)×63.7°(V)
- IR Sensitive: build-in 650nm IR filter, none sensitive to IR light
Application:
- Digital video cameras
- Digital still cameras
- Industrial camera
- Medical camera
- Microscopy camera
- UAV camera
Documentation:
Datasheet_sensor.pdf |
18MP AR1820HS
Introduction Arducam AR1820HS camera breakout incorporates ON Semiconductor 1/2.3−inch CMOS active−pixel digital imaging sensor AR1820HS with 1.25um x 1.25um A-PixHS™ BSI Pixel . It can support 18-megapixel (4912H x 3684V) digital still images at 24 fps and a 1080p plus additional 27 percent pixels for electronic image stabilization (2448H x 1378V) in digital video mode […]
Package Including:
- 1 pcs Arducam CMOS AR1820HS 1/2.3−inch 18MP Color Camera Module
- 1 pcs Arducam USB3.0 camera shield plus
- 1 pcs USB3 Cable
Lens Options
| SKU | LN056 | LN031 | LN074 | ||||||||
|
Part No: |
M17350H08 |
M2025ZM02 |
M231250H03 |
M2306ZM13 |
M23390H08 |
M23356H09 |
M23270H10 |
M23325H12 |
M23272M14 |
M25156H18 |
M27150H19 |
| Optical Format | 1/2.3' | 1/2.3' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3' | 1/2.3' |
| EFL(mm) | 35.00 | 25.00 | 12.50 | 6.00 | 3.90 | 3.56 | 2.70 | 3.25 | 2.27 | 1.56 | 1.50 |
| BFL(mm) | 5.50 | 5.20 | 2.11 | 7.56 | 4.49 | 5.92 | 4.97 | 4.10 | 3.01 | 4.30 | 5.19 |
| Construction | 5G | 6G | 6G+IR | 6G+IR | 6G+IR | 4G3P+IR | 5G2P+IR | 7G+IR | 8G+IR | 6G+IR | 9G+IR |
| F/NO | 3.0 | 2.0 | 2.35 | 2.0 | 2.8 | 2.5 | 2.8 | 2.2 | 2.5 | 2.0 | 1.8 |
| HFOV on 1/2.3‘’ Cam | 8° | 20° | 30° | 50° | 75° | 90° | 100° | 120° | 140° | 180° | 190° |
| IR filter | No IR filter | No IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter |
| MOD | 0.35m | 0.20m | 0.30m | 0.30m | 0.30m | 0.20m | 0.30m | 0.30m | 0.20m | 0.20m | 0.30m |
|
Size(mm) |
22x 29.3 | 17 x 21 | 14 x 22.72 | 16x 16.41 | 14x 18.67 | 14x 16.3 | 16x 18.43 | 17x 19 | 17.2x 22 | 20x 17.3 | 24x 16.9 |
NOTE: The M12 Lens kit for the HQ/AR1820HS Camera module, please check LK003, 6 lenses are included.
NOTE: For the sample order, please order the lens you need to replace separately and Contact us in advance for customization if you would like to replace the lenses on the Camera board.
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
