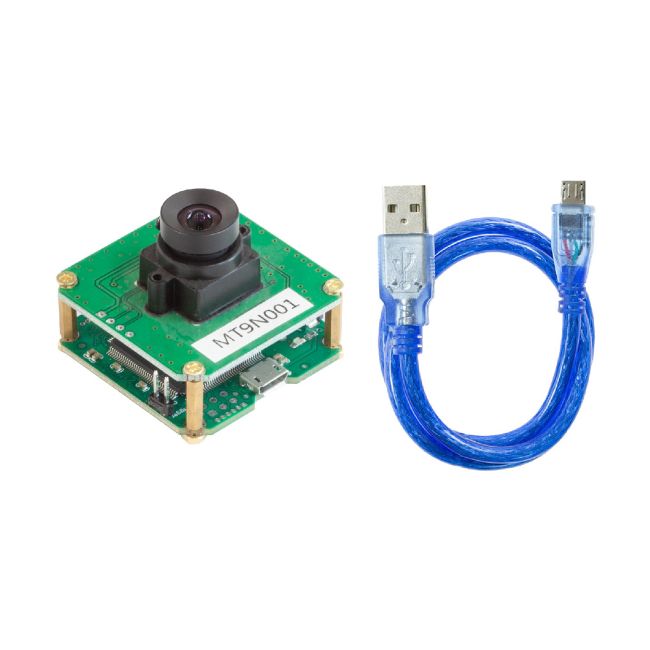

Arducam 9MP USB Camera Evaluation Kit - CMOS MT9N001 1/2.3-Inch Color Camera Module with USB2 Camera Shield
SKU
EK007
Note: The product has been changed and the information?will be?updated soon.
$109.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
The MT9N001 camera module features DigitalClarity—Micron’s breakthrough low-noise CMOS imaging technology that achieves near-CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS.
1/2.3" 9MP (3488 x 2616) CMOS color rolling shutter with global reset release camera module MT9N001 .
World-Class 1.75μm Pixel Sensitivity, Produced on Aptina’s world-class 1.75μm pixel with Aptina A-Pix technology, this high-resolution, highly sensitive compact sensor is perfect for DSC/DVC designs.
Improved Low Light Performance Equivalent level as CCD sensor to support DSC applications.
Preprocessing Features, including resampling for sub-sampled video and 2D defect correction, provide improved image quality.
Features
- 1/2.3" optical format
- RGB Bayer pattern
- 9MP 3488 x 2616 MT9N001 sensor
- 1.75 x 1.75 um Pixel size
- 9.7fps at full resolution
- 0.44V/lux-sec responsivity
- 62.7dB dynamic range
- single 3.3V power input
- Parallel camera interface
- M12 mount lens
Applications
- Digital video cameras
- Digital still cameras
- Industrial camera
- Medical camera
- Microscopy camera
- UAV camera
Documentation:
Datasheet.pdf |
9MP MT9N001
Introduction Arducam MT9N001 camera breakout incorporates Aptina 1/2.3−inch CMOS active−pixel digital imaging sensorMT9N001 with an active pixel array of 3488H x 2616V including border pixels. Please note that it is the RAW sensor which doesn’t include ISP (Image Signal Processing) on the image sensor chip, so it only supports manual exposure, manual white balance, manual […]
GitHub:
Packing List:
- 1pcs Arducam CMOS MT9N001 1/2.3-Inch 9MP Color Camera Module
- 1 pcs Arducam USB2 Camera Shield
- 1 pcs USB2 Cable
