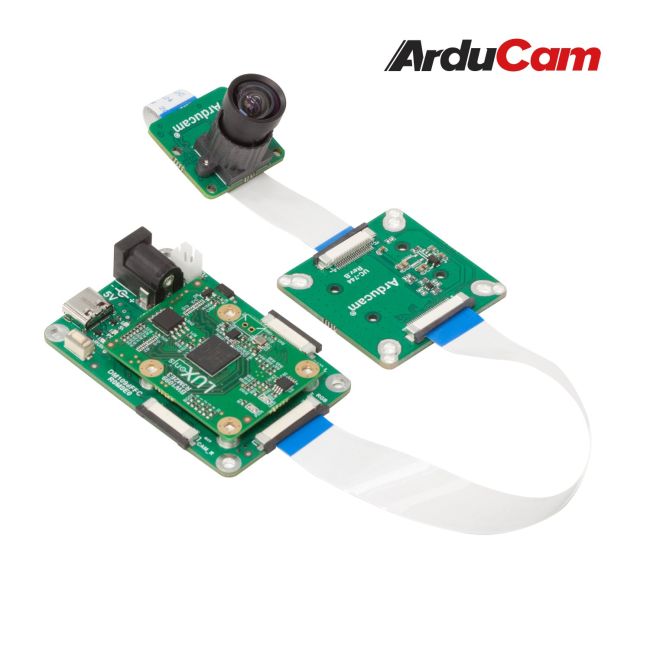

[Discontinued] Arducam 12MP IMX477 MINI High Quality Camera with M12 mount lens and adapter board for DepthAI OAK
SKU
B0300
Discontinued, check alternative item B0346.
$79.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
This Arducam 12MP IMX477 MINI High Quality Camera with M12 mount lens camera module is designed for DepthAI OAK,
Specifications
Camera
- Sensor: IMX477
- Optical Format: 1/2.3" (diagonal 7.857mm)
- Resolution: 4056(H) x 3040(V) 12.3MP
- Pixel Size: 1.55um x 1.55um
- IR Sensitivity: Visible light
- Interface: 4-lane MIPI CSI-2
- Maximum image transfer rate: 4K@60 fps
- Default Lens Mount: M12 Mount(SKU:LN053)
Lens
- Format: 1/2.3 inch
- Focal Length: 3.9mm
- Aperture (F): F2.8
- Field of View (FOV): 75° (H)
- Mount: M12 Mount
- Back Focal Length: 4.49mm
- MOD: 0.1m Dimension: Φ14×18.67mm
- Weight: 5g
- Camera board
- Board Size: 24mm×25mm
Lens Options
| SKU | LN056 | LN031 | LN074 | ||||||||
|
Part No: |
M17350H08 |
M2025ZM02 |
M231250H03 |
M2306ZM13 |
M23390H08 |
M23356H09 |
M23270H10 |
M23325H12 |
M23272M14 |
M25156H18 |
M27150H19 |
| Optical Format | 1/2.3' | 1/2.3' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3' | 1/2.3' |
| EFL(mm) | 35.00 | 25.00 | 12.50 | 6.00 | 3.90 | 3.56 | 2.70 | 3.25 | 2.27 | 1.56 | 1.50 |
| BFL(mm) | 5.50 | 5.20 | 2.11 | 7.56 | 4.49 | 5.92 | 4.97 | 4.10 | 3.01 | 4.30 | 5.19 |
| Construction | 5G | 6G | 6G+IR | 6G+IR | 6G+IR | 4G3P+IR | 5G2P+IR | 7G+IR | 8G+IR | 6G+IR | 9G+IR |
| F/NO | 3.0 | 2.0 | 2.35 | 2.0 | 2.8 | 2.5 | 2.8 | 2.2 | 2.5 | 2.0 | 1.8 |
| HFOV on 1/2.3‘’ Cam | 8° | 20° | 30° | 50° | 75° | 90° | 100° | 120° | 140° | 180° | 190° |
| IR filter | No IR filter | No IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter | 650 IR filter |
| MOD | 0.35m | 0.20m | 0.30m | 0.30m | 0.30m | 0.20m | 0.30m | 0.30m | 0.20m | 0.20m | 0.30m |
|
Size(mm) |
22x 29.3 | 17 x 21 | 14 x 22.72 | 16x 16.41 | 14x 18.67 | 14x 16.3 | 16x 18.43 | 17x 19 | 17.2x 22 | 20x 17.3 | 24x 16.9 |
NOTE: The M12 Lens kit for the HQ/AR1820HS Camera module, please check LK003, 6 lenses are included.
NOTE: For the sample order, please order the lens you need to replace separately and Contact us in advance for customization if you would like to replace the lenses on the Camera board.
Package Including
- 1 pcs 12.3MP IMX477 color camera module for DepthAI OAK
- 1 pcs 22pin-26pin adapter board
- 1 pcs 150mm/12inch 26pin to 26pin camera cable(same side)
- 1 pcs 80mm/3.1inch 22pin camera cable
