[Discontinued] Arducam 20MP IMX283 Camera module with C mount lens for DepthAI OAK
SKU
B0301
$349.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview

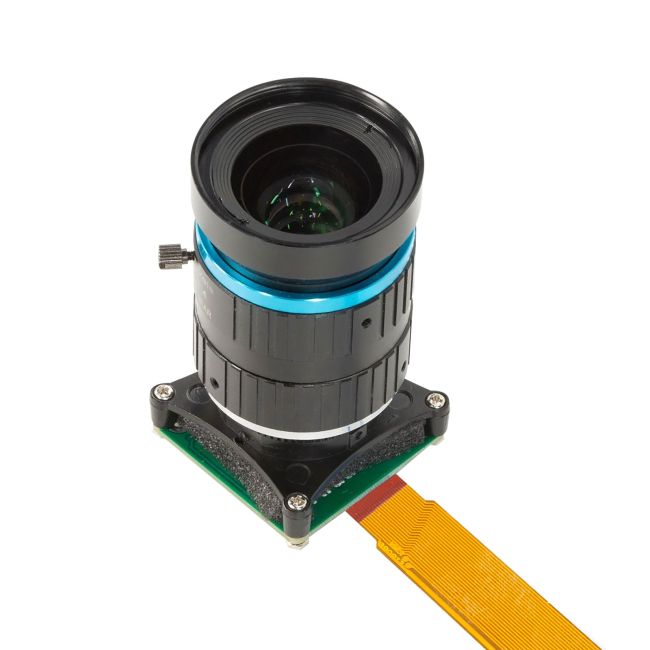

This Arducam 20MP IMX283 Camera module with C mount lens camera module is designed for DepthAI OAK,
Specifications
Camera
- Sensor: IMX283
- Optical Format: 1"
- Resolution: 5496 (H) x 3694 (V) 20MP
- Pixel Size: 2.40um x 2.40um
- IR Sensitivity: Integral IR-cut filter, visible light only
- Interface: 4-lane MIPI CSI-2
- Resolution & Frame Rate: 3840 x 2160@16fps, 5496 x 3694@5fps
- Default Lens Mount: 16mm C mount lens
Lens
- Format: 1 "
- Focal Length: 16mm
- Aperture (F): F1.4-16
- Field of View (FOV): 48°(H)
- Mount: C Mount
- Back Focal Length: 17.53mm
- MOD: 0.2m
- Dimension: Φ39.00×50.00mm
- Weight: 165g
- Camera board
- Board Size: 38 × 38 mm
Package Including
- 1 pcs 20MP IMX283 color camera module for DepthAI OAK
- 1 pcs 150mm/5.9inch 22pin to 26pin camera cable(same side)
Resources
- 2D Size
- Pin Definition
| Pin No. | PIN NAME | TYPE | DESCRIPTION | Level |
|---|---|---|---|---|
| 1 | DGND | Ground | Power ground | GND |
| 2 | MDN0 | Output | Pixel Data Lane0 Negative | 1.2V |
| 3 | MDP0 | Output | Pixel Data Lane0 Positive | 1.2V |
| 4 | DGND | Ground | Power ground | GND |
| 5 | MDN1 | Output | Pixel Data Lane1 Negative | 1.2V |
| 6 | MDP1 | Output | Pixel Data Lane1Positive | 1.2V |
| 7 | DGND | Ground | Power ground | GND |
| 8 | MCN | Output | Pixel Clock Output Form Sensor Negative | 1.2V |
| 9 | MCP | Output | Pixel Clock Output Form Sensor Positive | 1.2V |
| 10 | DGND | Ground | Power ground | GND |
| 11 | MDN2 | Output | Pixel Data Lane2 Negative | 1.2V |
| 12 | MDP2 | Output | Pixel Data Lane2 Positive | 1.2V |
| 13 | DGND | Ground | Power ground | GND |
| 14 | MDN3 | Output | Pixel Data Lane3 Negative | 1.2V |
| 15 | MDP3 | Output | Pixel Data Lane3 Positive | 1.2V |
| 16 | DGND | Ground | Power ground | GND |
| 17 | POWER-EN | Input | Power Enable | 3.3V/1.8V |
| 18 | NC/XCLK | I/O | NC/XCLK | 3.3V/1.8V |
| 19 | DGND | Ground | Power ground | GND |
| 20 | SCL | Input | SCCB serial interface clock input | 3.3V |
| 21 | SDA | I/O | SCCB serial interface data I/O | 3.3V |
| 22 | VCC | Power | 3.3V Power supply | POWER |
