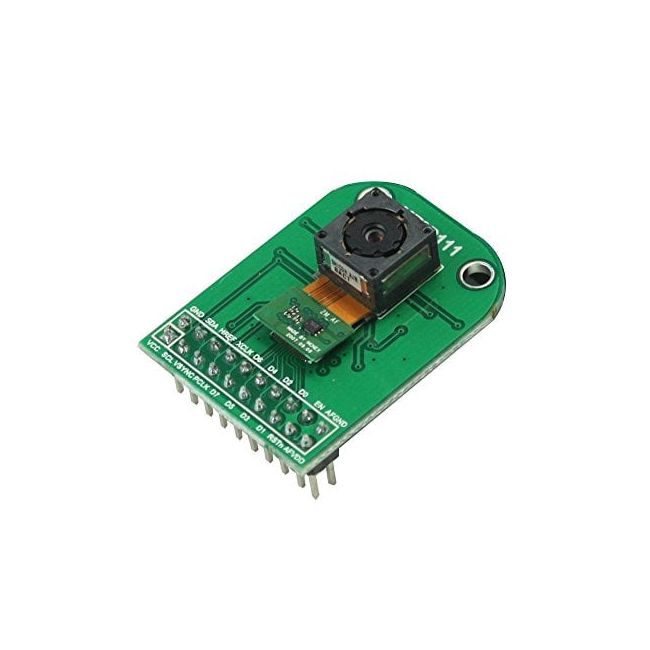

Arducam 2MP MT9D111 Auto Focus Lens Camera Flex Module with Adapter Board
SKU
B0054
- Ultra low-power, low-cost, progressive scan.
- Integrated auto focus.
- Real-time JPEG encoder.
$9.99
Overview
Specifications
Wiki
Documents
Video
Customization
Features
- Aptina MT9D111 camera module with Auto Focus Lenss
- Flex Calbe 0.4mm pin pitch
- Provide pin out and mating connector datasheet and technical supports
- DigitalClarity CMOS imaging technology
- Ultra low-power, low-cost, progressive scan
- 2-megapixel resolution (1,600H x 1,200V)
- 1/3.2-inch optical format
- 15 frames per second (fps) at full resolution
- Integrated auto focus and optical zoom
- Real-time JPEG encoder
- Integrated microcontroller for flexibility
- On-chip image flow processor for single-chip camera module
- On-chip auto focus with configurable GPIO interface
- Mechanical shutter support
- Numerous automatic functions for on-the-fly image correction and enhancement
- Fully automatic Xenon- and LED-type flash support,including fast exposure
- Adaptation
- On-chip, 10-bit analog-to-digital converter
- Two-wire serial interface
- ITU_R BT.656 (YCbCr), 565RGB, 555RGB, 444RGB and raw output data formats
- JPEG 4:2:2 and 4:2:0 output
Applications
- Digital video cameras
- Digital still cameras
- Microscopy camera
- IoT cameras
Package Including:
- 2Megapixel MT9D111 Auto Focus lens camera flex module with Adapter Board
Documentation
2MP MT9D111
Introduction Arducam MT9D111 camera breakout incorporates Aptina 1/3.2−inch CMOS active−pixel digital imaging sensor MT9D111 with an active pixel array of 1668 x 1248 including border pixels. The entire system-on-a-chip (SOC) has low power requirements and low-light performance that is particularly suitable for IoT applications. It has onchip AEC/AGC/AWB/AF functions, and supports RAW/YUV/RGB/JPEG different output format. […]
User guide.pdf
Datasheet.pdf
Sensor datasheet
Developer User GuIde:
Github
Check the link HERE.
Blog
MT9D111 Demo Pictures
These demo pictures are captured from MT9D111(SOC2010) camera module with USB our develop board, it is a illustration for the image quality of the sensor. Note that they are captured under the low light environment.
How to purchase
You can purchase this item fromArducam distributors or Amazon store
