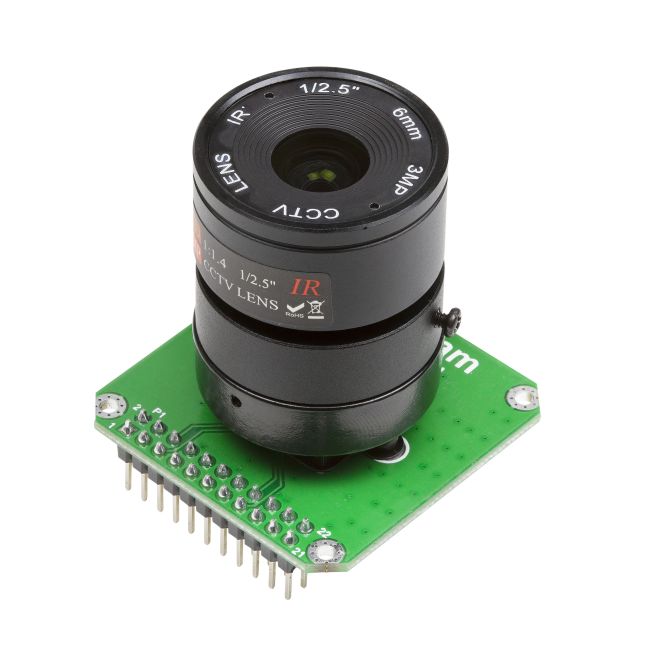

Arducam 2MP MT9D111 Color Camera Module JPEG Out + HQ lens
SKU
B0009
- Ultra low-power, low-cost, progressive scan.
- Real-time JPEG encoder.
$20.23
Overview
Specifications
Wiki
Documents
Video
Customization
Features
- Digital Clarity CMOS imaging technology
- Ultra low-power, low-cost, progressive scan
- 2-megapixel resolution (1,600H x 1,200V)
- 1/3.2-inch optical format
- 15 frames per second (fps) at full resolution
- Real-time JPEG encoder
- Integrated microcontroller for flexibility
- On-chip image flow processor for single-chip camera module
- On-chip auto focus with configurable GPIO interface
- Mechanical shutter support
- Numerous automatic functions for on-the-fly image correction and enhancement
- Fully automatic Xenon- and LED-type flash support,including fast exposure adaptation
- On-chip, 10-bit analog-to-digital converter
- JPEG 4:2:2 and 4:2:0 output.
Applications
- Digital video cameras
- Digital still cameras
- Microscopy camera
- IoT cameras
Package Including
- 1 x 2 Mega pixel Camera Module MT9D111
- 1 x HQ lens
Documentation
2MP MT9D111
Introduction Arducam MT9D111 camera breakout incorporates Aptina 1/3.2−inch CMOS active−pixel digital imaging sensor MT9D111 with an active pixel array of 1668 x 1248 including border pixels. The entire system-on-a-chip (SOC) has low power requirements and low-light performance that is particularly suitable for IoT applications. It has onchip AEC/AGC/AWB/AF functions, and supports RAW/YUV/RGB/JPEG different output format. […]
Blog
MT9D111 Demo Pictures
These demo pictures are captured from MT9D111(SOC2010) camera module with USB our develop board, it is a illustration for the image quality of the sensor. Note that they are captured under the low light environment.
How to purchase
You can purchase this item from Arducam distributors
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
