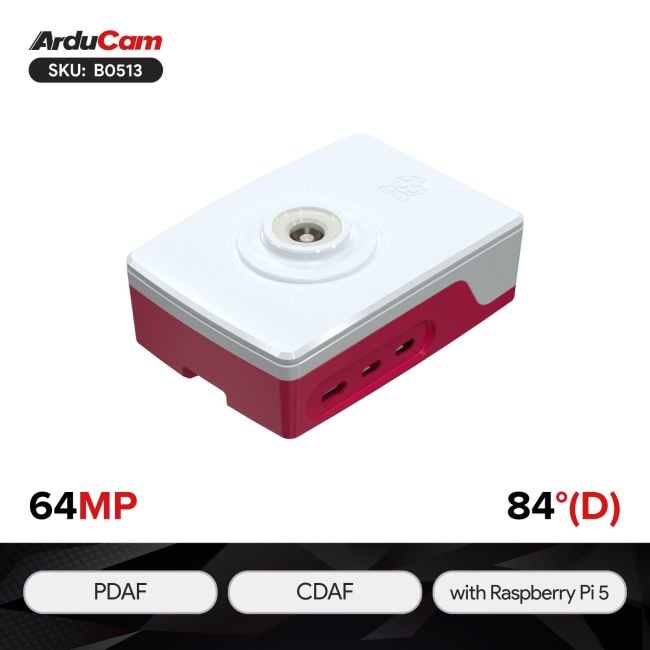

Arducam Pivistation 5 Hawkeye, 64MP PDAF All-in-one Raspberry Pi 5 Camera Kit
SKU
B0513
- High-Res Imaging & PDAF: Arducam Hawkeye has a 64MP sensor, autofocus (PDAF&CDAF), 10x zoom for sharp images.
- Complete Setup: Raspberry Pi 5 4GB, 32GB SD, case, cooling fan, optimal performance.
- Software Support: Pre-installed vision software: OpenCV-Python, TensorFlow, PyTorch.
- Robust Enclosure: Official case, cooling fan, tripod hole, easy setup.
- Versatile Applications: Ideal for quick PoC, research, and other embedded vision projects.
$379.00
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam Pivistation 5 is a comprehensive embedded vision kit designed to simplify the development of advanced imaging projects. Integrating the Raspberry Pi 5, it addresses the common challenges of setup complexity and compatibility, providing users with a powerful, ready-to-use solution for various vision applications.
The Arducam Hawkeye camera kit boasts a powerful 64-megapixel sensor, enabling users to capture extremely high-resolution images suitable for detailed analysis and advanced imaging applications. With an integrated autofocus mechanism and up to 10x digital zoom, the Hawkeye ensures sharp, clear images and allows for close-up inspections without compromising quality.
The Pivistation 5 is designed for convenience and efficiency, coming pre-installed with essential software such as OpenCV-Python and TensorFlow. It utilizes the official Raspberry Pi case, which includes a cooling fan for optimal performance and pre-installed tripod hole for easy setup and mobility. This combination of hardware and software ensures a seamless and hassle-free user experience, allowing developers to focus on their projects without worrying about configuration and compatibility issues.
Applications
- Face Recognition
- Fatigue Detection
- Object Recognition
- Anomaly Detection
- Machine Vision
Features
- High-Resolution Imaging and PDAF: Arducam Hawkeye kit features a 64MP sensor, integrated autofocus (PDAF&CDAF), and 10x digital zoom, capturing high-resolution, sharp images for detailed analysis and advanced imaging applications.
- Complete Setup: Includes a Raspberry Pi 5 with 4GB RAM, a 32GB SD card, an official case, and a cooling fan for optimal performance and durability.
- Extensive Software Support: Pre-installed with essential vision software, including OpenCV-Python, TensorFlow, and PyTorch, enabling advanced application development out of the box.
- Robust Enclosure: Encased in an official Raspberry Pi case with a cooling fan, featuring pre-installed tripod hole for easy mobility and setup.
- Versatile Applications: Ideal for a wide range of embedded vision projects, from quick PoC, research, and development to hobbyist applications.
Specifications
| Image Sensor | |
| Image Sensor | SONY 1/1.7" |
| Still Resolution | 64 MP |
| Color Filter Type | Color |
| Shutter Type | Rolling shutter |
| Optical Size | 1/1.7 inch |
| Sensor Output Format | RAW10 |
| Platform Output Format | JPEG/YUV/RGB/RAW10 |
| Pixel Size | 0.8 μm×0.8 μm |
| Sensor Active Area | 9152(H) × 6944(V) |
| Frame Rate | 1080p30,720p60 and 640×480p60/90 |
| Video Modes (Camera Module) | 9152×6944@2fps, 8000×[email protected], 4624×[email protected], 3840×[email protected], 2312×[email protected], 1920×1080@45fps. | Lens |
| Lens Mount | Stock lens |
| Focus Type | PDAF + CDAF |
| FOV | 84°(D) |
| F.NO | F1.8 |
| E.F.L | 5.1mm |
| Default Focus Range | 8cm-∞ |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | 7.5W |
| Camera Board Size | 24×25mm |
| Overall Size | 99×70×37 mm |
| Functionality and Compatibility | |
| Supported OS | Bookworm |
| Pre-installed Software | opencv-python, libopencv-dev (C++ version) libcamera, rpicam-apps C++ essential tools (building environment) TensorFlow (Python)/ PyTorch camera-streamer, arducacm camera server |
| Supported Platform | Raspberry Pi 5 |
Note: *Raspberry Pi 2/3/Zero W may not be able to enable maximum resolution due to RAM, please make sure your platform has RAM greater than or equal to 1G.
Package Including
- 1× Arducam Pivistation 5 Camera Kit
Note
- Tripod is not included in the package, please check UB0224 and UB0216 for additional purchase.
- This product kit includes the Raspberry Pi 5 with 4GB of RAM and a 32GB SD card preloaded with OS and software. It is recommended to use only this platform.
- For optimal performance, we suggest using the official Raspberry Pi 27W power supply.
Documentation
Video
Blog
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
