| Sensor | IMX378 |
| Optical Size | Type 1/2.3'' (Diagonal 7.857 mm) |
| Pixel Size | 1.55μm×1.55μm |
| Shutter Type | Rolling Shutter |
| Max Sensor Resolution | 4056 x 3040 |
| Color Filter Array | Bayer RGB |
| Resolution and Frame Rate | RAW10: 1332x990@120fps; RAW12: 2028x1080@50fps, 2028x1520@40fps, 4056x3040@10fps |
| Supported Platform | Pi 5/4/3/Zero/CM3/CM4 |
| Output | RAW10/RAW12 |
| Focus Type | Fixed |
| Focus Distance | 50cm~INF |
| Lens | f/1.8; EFL: 4.74mm ; FoV: 82.4° (D) |
| IR Sensitivity | Built-in 650nm IR-cut filter, visible light only |
| Dimensions | 25mm × 24mm |

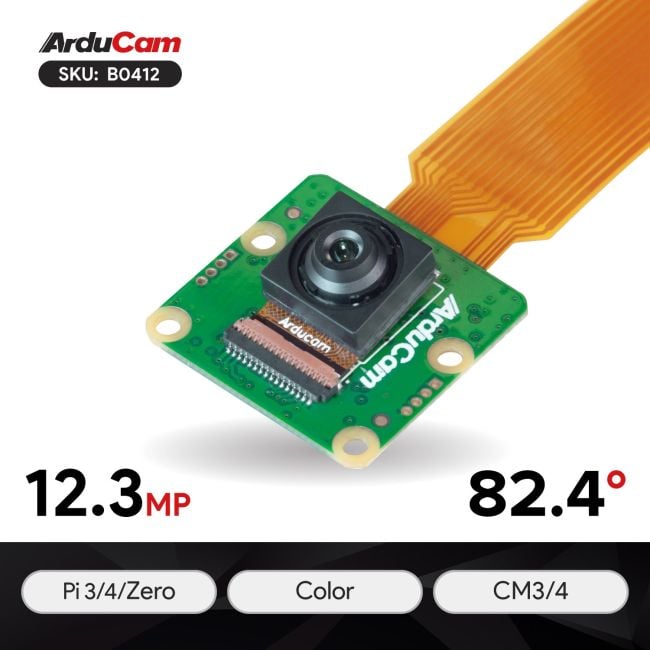

12MP IMX378 Camera Module for Raspberry Pi
SKU
B0412
- High Quality: 12MP
- Wide Angle: 82.4° (DFoV)
- Mini Size: 24x25mm, V1/V2 size
- Easy to use: compatible with all Raspberry Pi boards
$39.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Based on Sony’s IMX378 high-quality image sensor, Arducam IMX378 camera module is a ready-to-use embedded vision solution for the Raspberry Pi family. With a resolution of 12.3MP and a V2-like form factor, it is compatible with any existing Pi models and works with the latest software from the foundation. It can be widely used in machine vision systems and outdoor applications.
Specifications
Note
Documentation
Packing Including
- 1 x IMX378 Camera Module
- 1 x 150mm 15pin to 22pin flex cable
- 1 x 150mm 22-22pin flex cable
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
