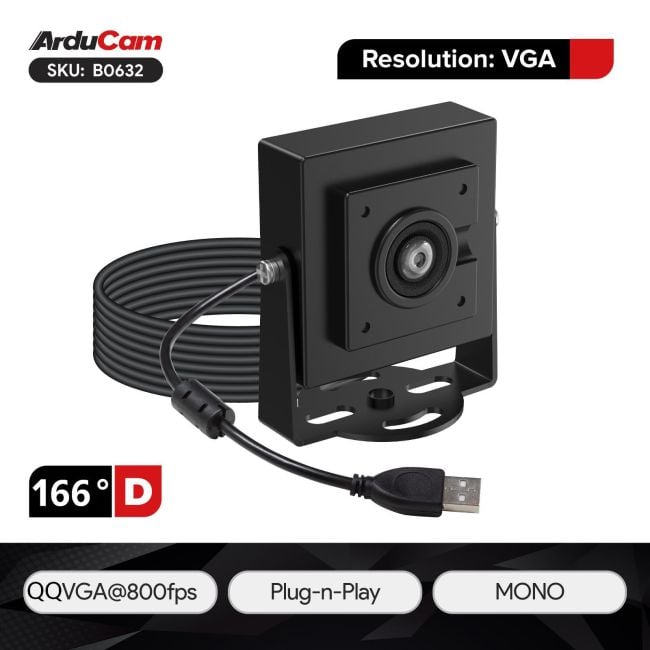

Global Shutter USB2 UVC Camera, Ultra High FPS, VGA Monochrome, Wide Angle, Arducam ezBOX GS
SKU
B0632
- [Global Shutter Mono] VGA monochrome sensor for distortion-free motion capture
- [Ultra High FPS] Up to 800 FPS at QQVGA resolution
- [Wide Angle Optics] Expanded field of view for larger scene coverage
- [Onboard ISP] Integrated ISP for real-time image processing
- [Plug & Play UVC] USB2 UVC compliant, no driver required
- [Industrial Control] Customization options for External Trigger, ROI, Fstrobe, etc., available
$24.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam ezBOX GS B0632 is a high-speed monochrome global shutter USB camera designed for motion analysis, machine vision, and scientific imaging. With support for up to 800 FPS at QQVGA resolution, a wide-angle lens for expanded field of view, and an integrated onboard ISP, it delivers accurate, low-latency imaging in fast-moving scenes. USB2 UVC plug-and-play compatibility, and a rugged metal enclosure make it easy to deploy in both lab and industrial environments.
Applications
- High-Speed Motion Analysis
- Machine Vision & Industrial Inspection
- Robotics & Automation
- Scientific & Laboratory Imaging
- Trigger-Based Image Acquisition Systems
- Embedded Vision & System Prototyping
Features
- [Global Shutter Mono] Uses a VGA monochrome global shutter sensor that exposes all pixels simultaneously, eliminating rolling shutter artifacts and ensuring accurate capture of fast-moving objects.
- [Ultra High FPS] Supports frame rates of up to 800 FPS at QQVGA resolution, enabling high-speed inspection, motion analysis, and scientific experiments beyond standard USB camera capabilities.
- [Wide Angle Optics] Equipped with a wide-angle lens to capture a larger field of view, making it suitable for applications that require broad scene visibility.
- [Onboard ISP] Integrates an onboard ISP to handle real-time image processing, delivering ready-to-use image output while reducing host CPU workload.
- [Plug & Play UVC] Fully compliant with the USB2 UVC standard, allowing instant plug-and-play operation on Windows, Linux, and macOS without additional drivers.
- [Industrial Control] Housed in a durable metal enclosure, while customization options such as External Trigger, ROI, and Fstrobe are available upon request.
Specifications
| Image Sensor | |
| Product Series | ezBOX-VGA GS |
| Max Still Resolution | VGA |
| Color Filter Type | Monochrome |
| Shutter Type | Global Shutter |
| Optical Size | 1/7.5″ |
| Output Format | MJPG/YUV |
| Pixel Size | 3 µm x 3 µm |
| Sensor Active Area | 640(H) x 480(V) |
| Frame Rate(MJPG) | 640x480@200fps, 320x240@400fps; 160x120@800fps |
| Frame Rate(YUV) | 640x480@60fps, 320x320@160fps; 160x120@400fps |
| Lens | |
| IR Sensitivity | Integral 650nm IR Filter |
| Focus Type | Fixed Focus |
| FOV | 166°(D)x130°(H)x100°(H) |
| USB Features | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5V |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Consumption | 0.8W |
| Camera Board Size | 32mmX32mmX1.6mm |
| Functionality and Compatibility | |
| Minimum Exposure Time | 100µs* |
| External Trigger Mode | Support Customization |
| Fstrobe | Support Customization |
| Supported OS | Windows, Linux |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Sharpness, PowerLine Freq, Backlight Compensation, Low Light Compensation, Gain, Exposure(Auto/Manual). |
Package Including
- 1 x Arducam ezBOX VGA GS MONO WA USB2 UVC Camera Module
- 1 x 1m USB2 to B4B-ZR JST Cable
Notes
- Due to the limitation of USB2.0 device descriptor, the software can only report a maximum frame rate of 240fps, but the camera can actually reach 800fps (the actual frame rate can be seen during preview).
- This module supports customized resolution, frame rate, and ROI, etc.
- This module supports a minimum exposure time of 100µs under the current UVC protocol. For even lower exposure times, please contact Arducam for customization.
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
