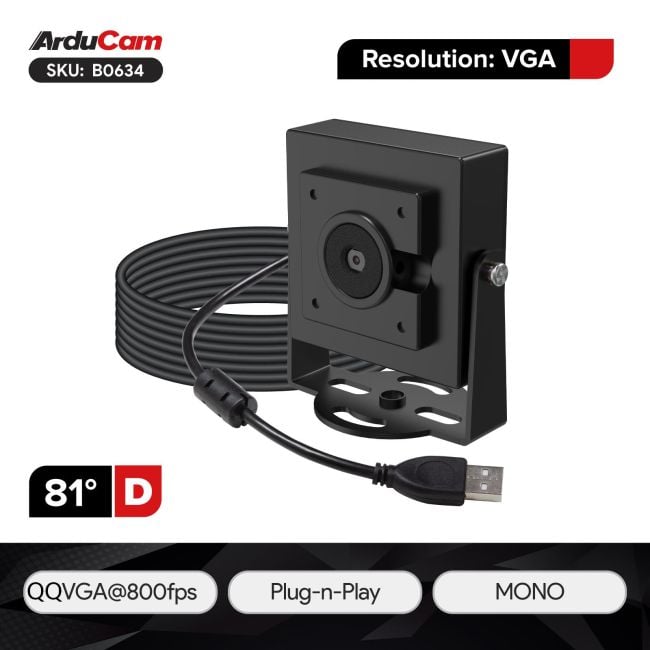

Global Shutter USB2 UVC Camera, Ultra High FPS, VGA Monochrome, Arducam ezBOX GS
SKU
B0634
- [Global Shutter Mono] VGA monochrome sensor for high-precision imaging
- [Ultra High FPS] Up to 800 FPS at QQVGA resolution
- [Standard FOV] Balanced field of view for accurate measurement
- [Onboard ISP] Integrated ISP for efficient image processing
- [Plug & Play UVC] USB2 UVC compliant, easy integration
- [Industrial Control] Customization options for External Trigger, ROI, Fstrobe, etc., available
$19.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam ezBOX GS B0634 is a compact monochrome global shutter USB camera optimized for precision high-speed imaging. Supporting frame rates up to 800 FPS at QQVGA resolution, it enables detailed capture of fast motion while maintaining consistent exposure across the frame. With a standard field-of-view lens, integrated onboard ISP, UVC plug-and-play support, and customizable external trigger capability, B0634 is ideal for measurement, inspection, and controlled machine vision applications.
Applications
- High-Speed Motion Analysis
- Machine Vision & Industrial Inspection
- Robotics & Automation
- Scientific & Laboratory Imaging
- Trigger-Based Image Acquisition Systems
- Embedded Vision & System Prototyping
Features
- [Global Shutter Mono] Features a VGA monochrome global shutter sensor that ensures pixel-level exposure consistency, ideal for precision measurement and motion analysis.
- [Ultra High FPS] Supports frame rates of up to 800 FPS at QQVGA resolution, enabling capture of rapid events that are not observable with conventional USB cameras.
- [Standard FOV] Uses a standard field-of-view lens to provide a balanced perspective, well-suited for metrology, inspection, and controlled imaging setups.
- [Onboard ISP] Incorporates an onboard ISP to process image data in real time, delivering stable output while reducing system integration complexity.
- [Plug & Play UVC] Designed around the USB2 UVC standard, allowing immediate use across Windows, Linux, and macOS platforms without additional drivers.
[Industrial Control] Housed in a durable metal enclosure, while customization options such as External Trigger, ROI, and Fstrobe are available upon request.
Specifications
| Image Sensor | |
| Product Series | ezBOX-VGA GS |
| Max Still Resolution | VGA |
| Color Filter Type | Monochrome |
| Shutter Type | Global Shutter |
| Optical Size | 1/7.5″ |
| Output Format | MJPG/YUV |
| Pixel Size | 3 µm x 3 µm |
| Sensor Active Area | 640(H) x 480(V) |
| Frame Rate(MJPG) | 640x480@200fps, 320x240@400fps; 160x120@800fps |
| Frame Rate(YUV) | 640x480@60fps, 320x320@160fps; 160x120@400fps |
| Lens | |
| IR Sensitivity | Integral 650nm IR Filter |
| Focus Type | Fixed Focus |
| FOV | 81°(D)x69°(H)x55°(V) |
| USB Features | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5V |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Consumption | 0.8W |
| Camera Board Size | 32mmX32mmX1.6mm |
| Functionality and Compatibility | |
| Minimum Exposure Time | 100µs* |
| External Trigger Mode | Support Customization |
| Fstrobe | Support Customization |
| Supported OS | Windows, Linux |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Sharpness, PowerLine Freq, Backlight Compensation, Low Light Compensation, Gain, Exposure(Auto/Manual). |
Package Including
- 1 x Arducam ezBOX VGA GS MONO USB2 UVC Camera Module
- 1 x 1m USB2 to B4B-ZR JST Cable
Notes
- Due to the limitation of USB2.0 device descriptor, the software can only report a maximum frame rate of 240fps, but the camera can actually reach 800fps (the actual frame rate can be seen during preview).
- This module supports customized resolution, frame rate, and ROI, etc.
- This module supports a minimum exposure time of 100µs under the current UVC protocol. For even lower exposure times, please contact Arducam for customization.
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
