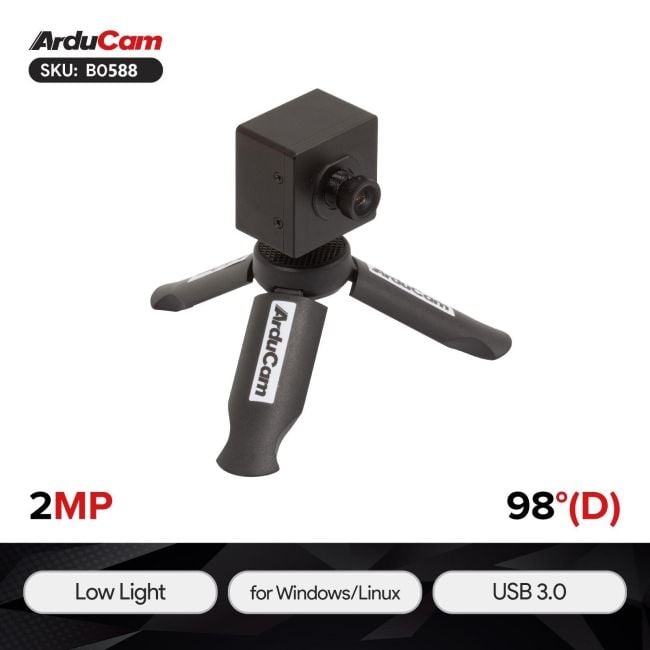

Arducam UVC Camera with Supreme Ultra Low Light Performance, IMX662 sensor, Pre-tuned Lens, USB3.0 Interface, Long Exposure Supported
SKU
B0588
- [Plug and play] USB 3.0 UVC compliant, no extra drivers needed
- [Low Light Performance] Equipped with SONY STARVIS2 image sensor IMX662
- [Onboard ISP] Proprietary on-board ISP advances image enhancement
- [Selected Lens] M12 fixed focus lens for Precision focus and wide 98°(D) view
- [Metal Housing] Carrying a CNC metal housing as both a heatsink and protection
- [Long exposure support] Supports long exposure up to 12935800 us.
$147.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam UVC Camera delivers exceptional imaging capabilities with its SONY STARVIS2 IMX662 sensor, ensuring superior ultra low light performance. Featuring a pre-tuned M12 fixed focus lens, it offers precise focus and a wide 98° diagonal field of view. The camera supports USB 3.0 UVC plug-and-play connectivity, requiring no additional drivers for easy integration. Its proprietary onboard ISP enhances image quality in real time, while the robust CNC metal housing provides effective heat dissipation and protection. Additionally, the camera supports long exposure times up to 12,935,800 microseconds, making it ideal for applications requiring detailed low-light or long-exposure imaging.
Applications
- Surveillance and Security
- Industrial Inspection
- Scientific and Research Imaging
- Traffic Monitoring
- Robotics and Automation
Features
- Plug and Play USB 3.0 UVC Compliant The camera supports USB 3.0 with UVC (USB Video Class) compliance, allowing seamless plug-and-play operation. This means no additional drivers or software installations are required, enabling quick and hassle-free setup on a wide range of operating systems and devices.
- Low Light Performance with SONY STARVIS2 IMX662 Sensor Equipped with the advanced SONY STARVIS2 IMX662 image sensor, the camera excels in ultra low light conditions. This sensor is specially designed to capture clear and detailed images even in near-dark environments, making it ideal for surveillance, industrial inspection, and scientific applications.
- Onboard ISP for Image Enhancement The camera features a proprietary onboard Image Signal Processor (ISP) that performs real-time image enhancement. This ISP optimizes color accuracy, noise reduction, and overall image quality directly within the camera, reducing the processing load on the host device.
- Selected M12 Fixed Focus Lens The pre-tuned M12 fixed focus lens ensures precise focusing with minimal adjustment needed. It provides a wide 98° diagonal field of view, allowing the camera to capture broad scenes without distortion, perfect for monitoring or capturing large areas.
- Durable CNC Metal Housing The camera is encased in a robust CNC-machined metal housing that acts as both a protective shell and an efficient heatsink. This design helps dissipate heat generated during extended use, ensuring stable performance and longevity even in demanding environments. Long Exposure Support up to 12,935,800 Microseconds: Supporting long exposure times up to approximately 13 seconds, the camera can capture images in extremely low light or dark conditions by allowing more light to accumulate on the sensor. This feature is essential for applications like astrophotography, night surveillance, or scientific imaging where detailed long-exposure shots are required.
Specifications
| Image Sensor | |
| Sensor | IMX662 |
| Max Still Resolution | 2 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling Shutter |
| Optical Size | 1/2.8″ |
| Output Format | YUYV |
| Pixel Size | 2.9 µm x 2.9 µm |
| Sensor Active Area | 1920(H) x 1080(V) |
| Frame Rate(USB3.0) | YUYV 1920*1080@60fps, 1280*720@90fps |
| Frame Rate(USB2.0) | YUYV 1280*720@10fps |
| Lens | |
| Focus Type | Fixed Focus |
| Default Focus Range | 3m-INF |
| FOV | 98°(D)×85°(H)×69°(V) |
| Lens Mount | M12 Mount |
| F.NO | F1.0 |
| E.F.L | 3.9mm |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| USB Interface | |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |
| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Consumption | Max: 1.6W , Min: 0.8W |
| Camera Board Size | 34×34 mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Backlight Comp, Exposure (Manual/Auto) |
| Certification | CE/RoHS |
Package Including
- 1 x Arducam Ultra Low Light USB3 UVC Camera Module
- 1 x 1m USB A to Type-C Cable
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
