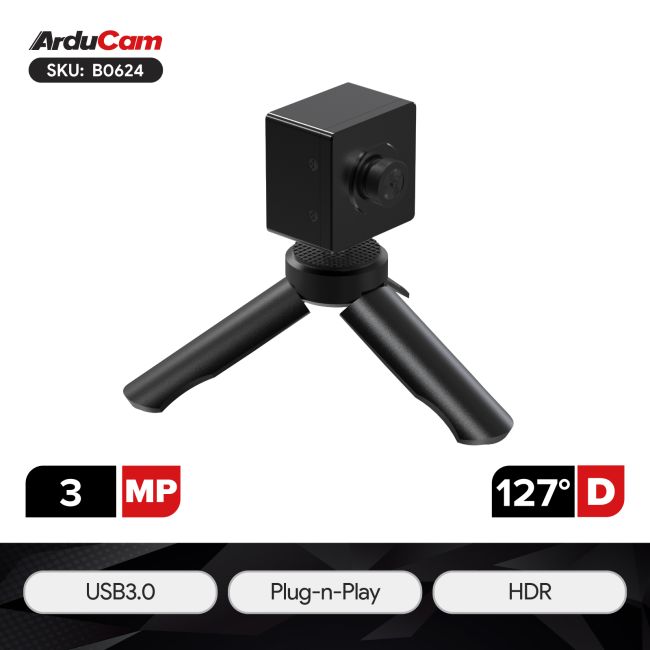

Arducam 3MP ISX031 USB3 UVC Camera – 120 dB HDR, Built-in ISP, LED Flicker Mitigation, Plug-and-Play for Windows and Linux
SKU
B0624
- [Sony ISX031 Sensor] 3 MP CMOS with 120 dB HDR and LED Flicker Mitigation.
- [Built-in ISP] Hardware image processing for vivid, real-time output.
- [LED Flicker Mitigation (LFM)] Eliminates flicker from LED or traffic lighting.
- [USB 3.0 UVC Interface] High-speed data transfer and plug-and-play operation.
- [Cross-Platform Support] Works with Windows and Linux devices.
- [Wide-Angle Lens] Expanded field of view for robotics, AI vision, and industrial use.
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam 3MP ISX031 USB3 UVC Camera combines Sony’s automotive-grade ISX031 sensor with a high-speed USB 3.0 interface for seamless, plug-and-play imaging on major platforms. Featuring 120 dB HDR, built-in ISP, and LED Flicker Mitigation, it delivers clear, flicker-free images even under complex lighting. With a wide-angle lens and UVC compatibility, this camera is ideal for developers and engineers seeking a reliable, high-performance vision solution that works instantly out of the box.
Applications
- AI vision and robotics development
- Smart traffic and LED-lit monitoring systems
- Industrial inspection and automation
- Drone vision and environmental imaging
- Research and prototyping with Jetson, PC, or SBC platforms
Features
- ▶ 120 dB High Dynamic Range (HDR) The ISX031 sensor delivers up to 120 dB HDR, enabling precise detail capture in both bright sunlight and deep shadow. Ideal for outdoor and mixed-lighting scenarios.
- ▶ Built-in Image Signal Processor (ISP) An integrated ISP performs color correction, noise reduction, and tone mapping directly on the sensor, ensuring consistent, true-to-life imagery without extra processing load on the host.
- ▶ LED Flicker Mitigation (LFM) Advanced LED flicker suppression guarantees stable video streams in environments with LED lighting, such as traffic systems or warehouses.
- ▶ USB 3.0 UVC Plug-and-Play No drivers required — simply connect via USB 3.0 and start capturing. Supports popular apps and frameworks across Windows and Linux.
- ▶ Wide-Angle Lens for Broader Coverage Factory-mounted wide-angle lens provides greater situational awareness, ideal for AI perception, navigation, and inspection systems.
Specifications
| Image Sensor | |
| Sensor | ISX031 |
| Resolution | 3 Megapixels |
| Chroma | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/2.42" |
| Pixel Size | 3.0 µm x3.0 µm |
| Sensor Active Area | 1920(H)×1536(V) |
| Sensor Image Area | 5.760 mm x 4.608 mm (7.38 mm diagonal) |
| Output Format | YUV |
| Resolution@fps | 1920x1536@30fps, 1920x1080@30fps |
| ISP | Built-in ISP |
| Lens | |
| Focus Type | Fixed Focus |
| FOV | 127°(D)×97°(H)×76°(V) |
| Lens Mount | M12 Mount |
| F.NO | F2.5 |
| E.F.L | 3.57mm |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Default Focus Distance | 300cm-INF |
| Distortion | <-18% |
| Weight | 3.8g |
| USB Features | |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |
| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Functionality and Compatibility | |
| HDR Support | Yes |
| Supported OS | Windows, Linux |
| Recommend Imaging Applications | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Sharpness, Hue, Brightness, Contrast, Saturation, Power Line Frequency |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Power Consumption | Max: 1.6W |
| Camera Board Size | 34×34 mm |
| Overall Weight (Net) | 50g |
| Overall Size | 38x38 mm |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | RoHS |
Package Including
- 1 x Arducam 3MP ISX031 HDR USB3 UVC Camera Module
- 1 x 1m USB A to Type-C Cable
Documentation
Video
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
